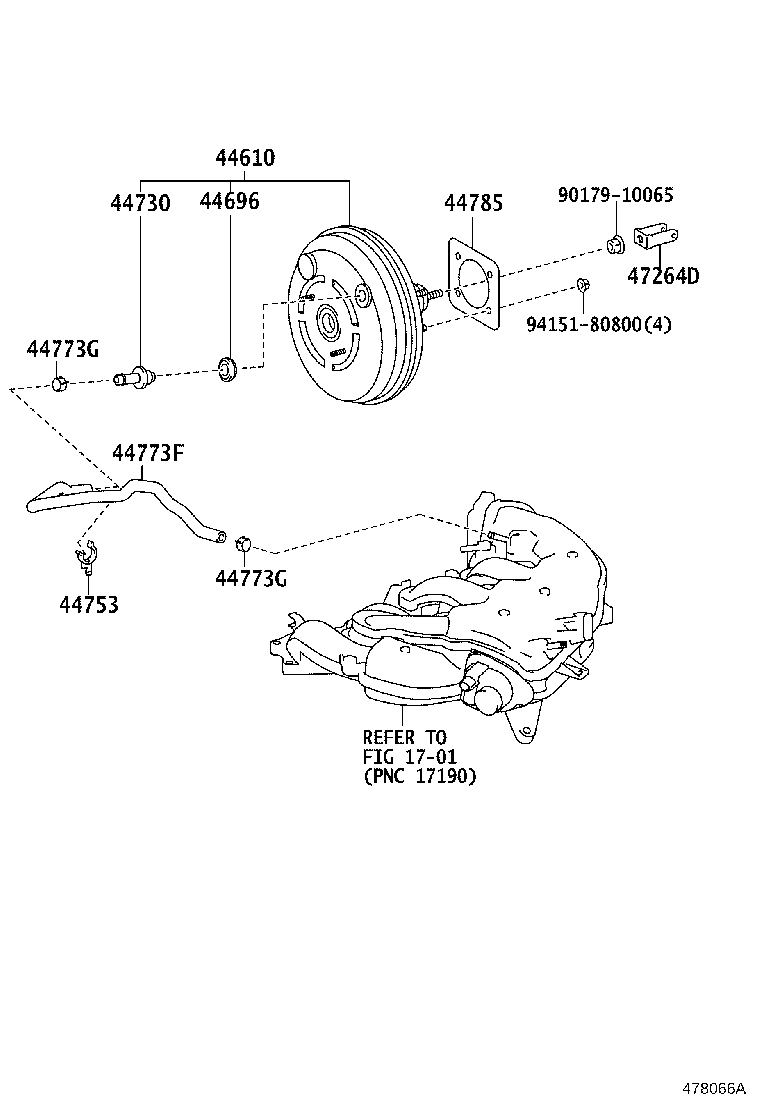

Toyota Lexus gs series GRL10 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-30B60	GRL10,11..RHD F SPORT	01/2012 - 10/2015	1
44610-30B00	GRL10,11..RHD	01/2012 - 10/2015	1
44696 - GROMMET, CHECK VALVE
90480-24439	GRL10	01/2012 - 09/2013	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60070	GRL10,11..RHD	01/2012 - 10/2015	1
44753 - CLAMP, VACUUM RESERVOIR, NO.2
44753-30320	GRL10..RHD	01/2012 - 09/2013	1
44773F - HOSE, UNION TO CHECK VALVE
44773-30650	GRL10..RHD	01/2012 - 09/2013	1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014	GRL10..RHD	01/2012 - 09/2013	2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014	GRL10..RHD	01/2012 - 09/2013	2
44785 - GASKET, BRAKE BOOSTER
44785-47010	GRL10	01/2012 - 09/2013	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-22040	GRL10	01/2012 - 09/2013	1
Common parts
90179-10065
94151-80800
Linked diagrams
1701

GRL10R-BETQHQ (2012)
