GRL10R-BETQHQ (2012)

Toyota Lexus Gs Series

Production Jan 2012 - Sep 2013
Engine 2GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )GRL10..6FC

Click highlighted areas on diagram

A760E

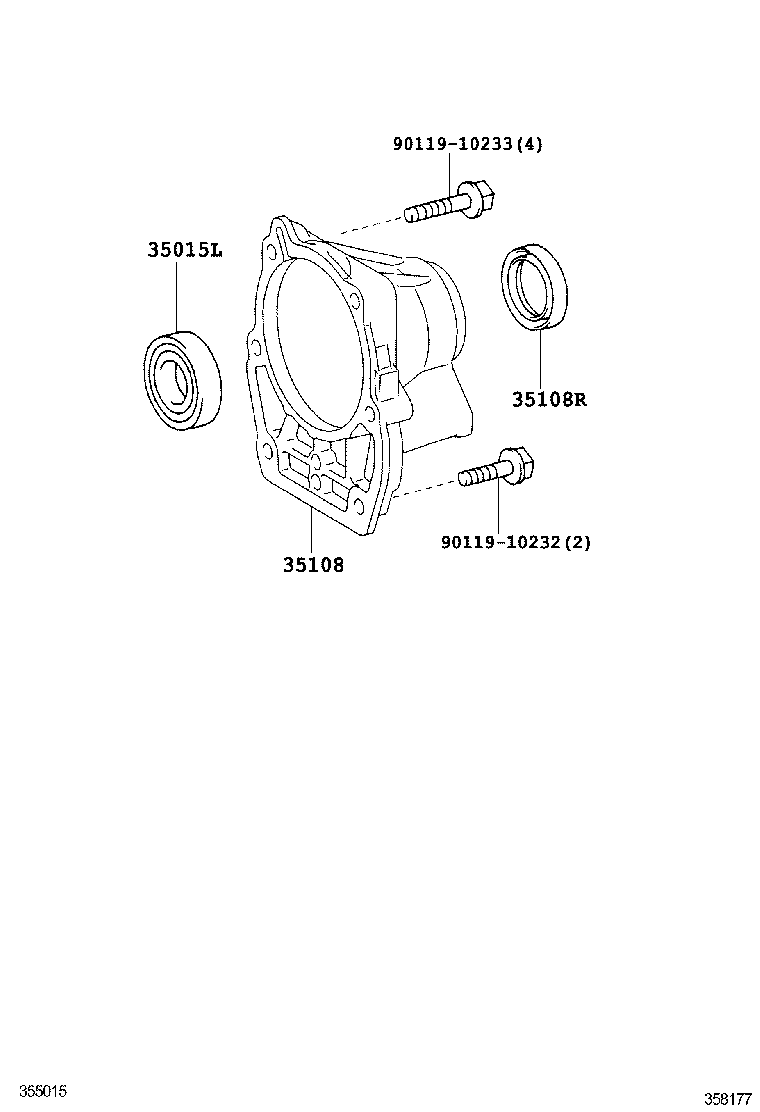

diagram 35015L 35108 35108R 9011910232 9011910233
Part # Description Qty Price
35015L - BEARING, RADIAL BALL(FOR TRANSMISSION CASE ADAPTER)
90363-34001

GRL10

 1
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-50030

GRL10

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-42024

GRL10

 1
Common parts
90119-10232
90119-10233
