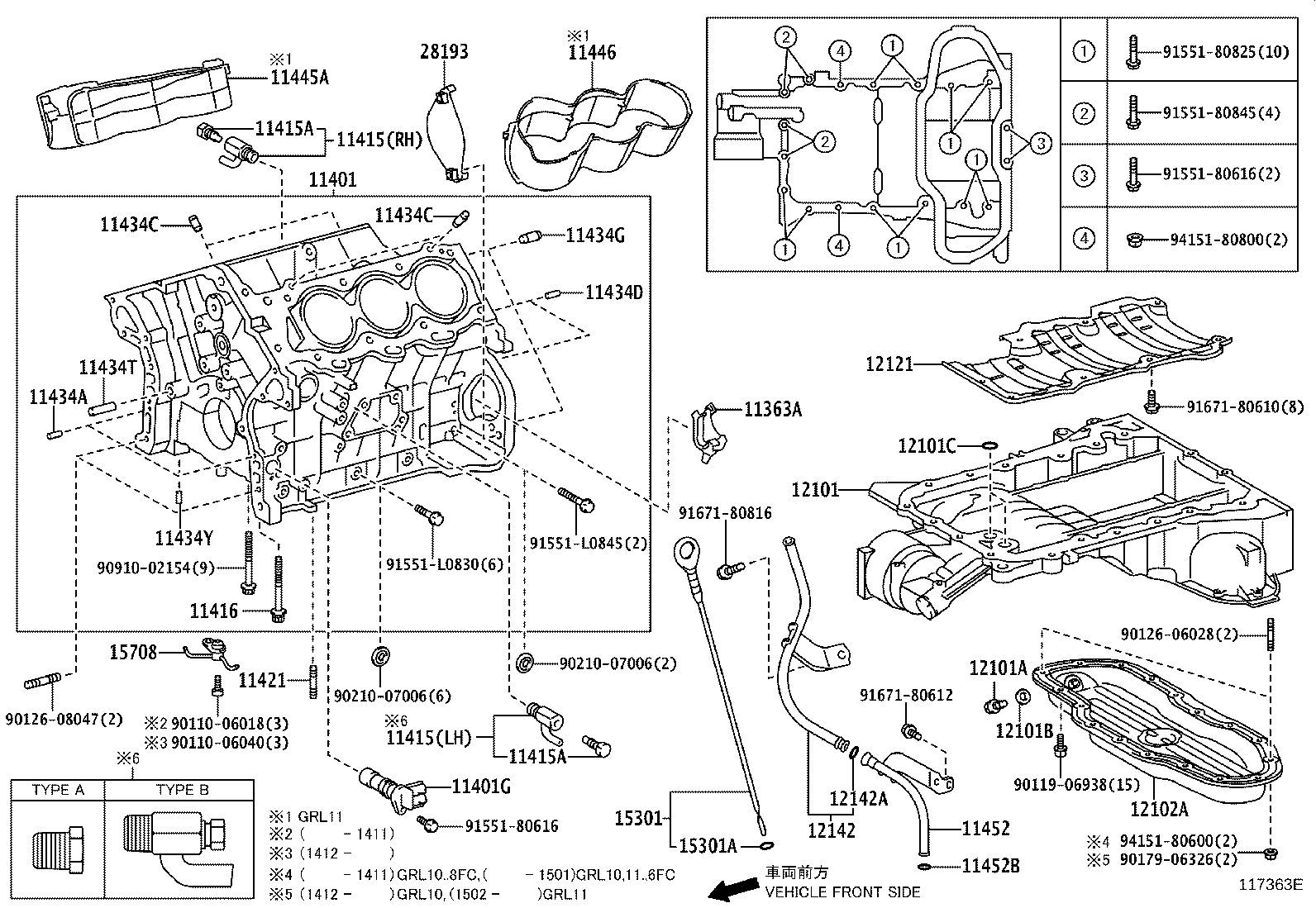

Toyota Lexus gs series GRL10 CYLINDER BLOCK

Part #	Description	Period	Qty
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-31010	2GRFSE..GRL10	01/2012 - 09/2013	1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-39775	2GRFSE..GRL10	01/2012 - 09/2013	1
11401G - SENSOR, CRANK POSITION
90919-05057	2GRFSE..GRL10	01/2012 - 09/2013	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129	2GRFSE..GRL10	01/2012 - 09/2013	2
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129	2GRFSE..GRL10	01/2012 - 09/2013	2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	2GRFSE..GRL10	01/2012 - 09/2013	2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	2GRFSE..GRL10	01/2012 - 09/2013	2
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02153	2GR#,4GRFSE..GRL1#,GWL10	01/2012 - 10/2015	7
11421 - BOLT, STUD(FOR OIL PAN)
90126-08052	2GRFSE..GRL10	01/2012 - 09/2013	2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097	2GRFSE..GRL10 L=12,OD=4.0	01/2012 - 09/2013	2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120	2GRFSE..GRL10 L=18,OD=8	01/2012 - 09/2013	4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120	2GRFSE..GRL10 L=18,OD=8	01/2012 - 09/2013	4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-04097	2GRFSE..GRL10 L=12,OD=4.0	01/2012 - 09/2013	2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113	2GRFSE..GRL10	01/2012 - 09/2013	2
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90250-10030	2GRFSE..GRL10	01/2012 - 09/2013	1
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097	2GRFSE..GRL10	01/2012 - 09/2013	2
11452 - GUIDE, OIL LEVEL GAGE
11452-31040	2GRFSE..GRL10	01/2012 - 09/2013	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-12018	2GRFSE..GRL10	01/2012 - 09/2013	1
12101 - PAN SUB-ASSY, OIL
12101-31101	2GRFSE..GRL10	01/2012 - 09/2013	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	2GRFSE..GRL10	01/2012 - 09/2013	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	2GRFSE..GRL10	01/2012 - 09/2013	1
12101C - RING, O(FOR OIL PAN)
12151-31010	2GRFSE..GRL10	01/2012 - 09/2013	2
12102A - PAN SUB-ASSY, OIL, NO.2
12102-31030	2GRFSE..GRL10	01/2012 - 09/2013	1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-31080	2GRFSE..GRL10	01/2012 - 09/2013	1
12142 - GUIDE, OIL LEVEL GAGE, NO.2
12142-31010	2GRFSE..GRL10	01/2012 - 09/2013	1
12142A - RING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
96721-19010	2GRFSE..GRL10	01/2012 - 09/2013	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-31080	2GRFSE..GRL10	01/2012 - 09/2013	1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005	2GRFSE..GRL10	01/2012 - 09/2013	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31030	2GRFSE..GRL10	01/2012 - 09/2013	3
Common parts
90110-06018
90110-06040
90119-06938
90126-06028
90126-08047
90179-06326
90210-07006
90910-02154
91551-80616
91551-80825
91551-80845
91551-L0830
91551-L0845
91671-80610
91671-80612
91671-80816
94151-80600
94151-80800

GRL10R-BETQHQ (2012)

(1201-1510)2GRFSE,4GRFSE..GRL10,11
