GRL10R-BETQH (2012)
Toyota Lexus Gs Series
(1201- )

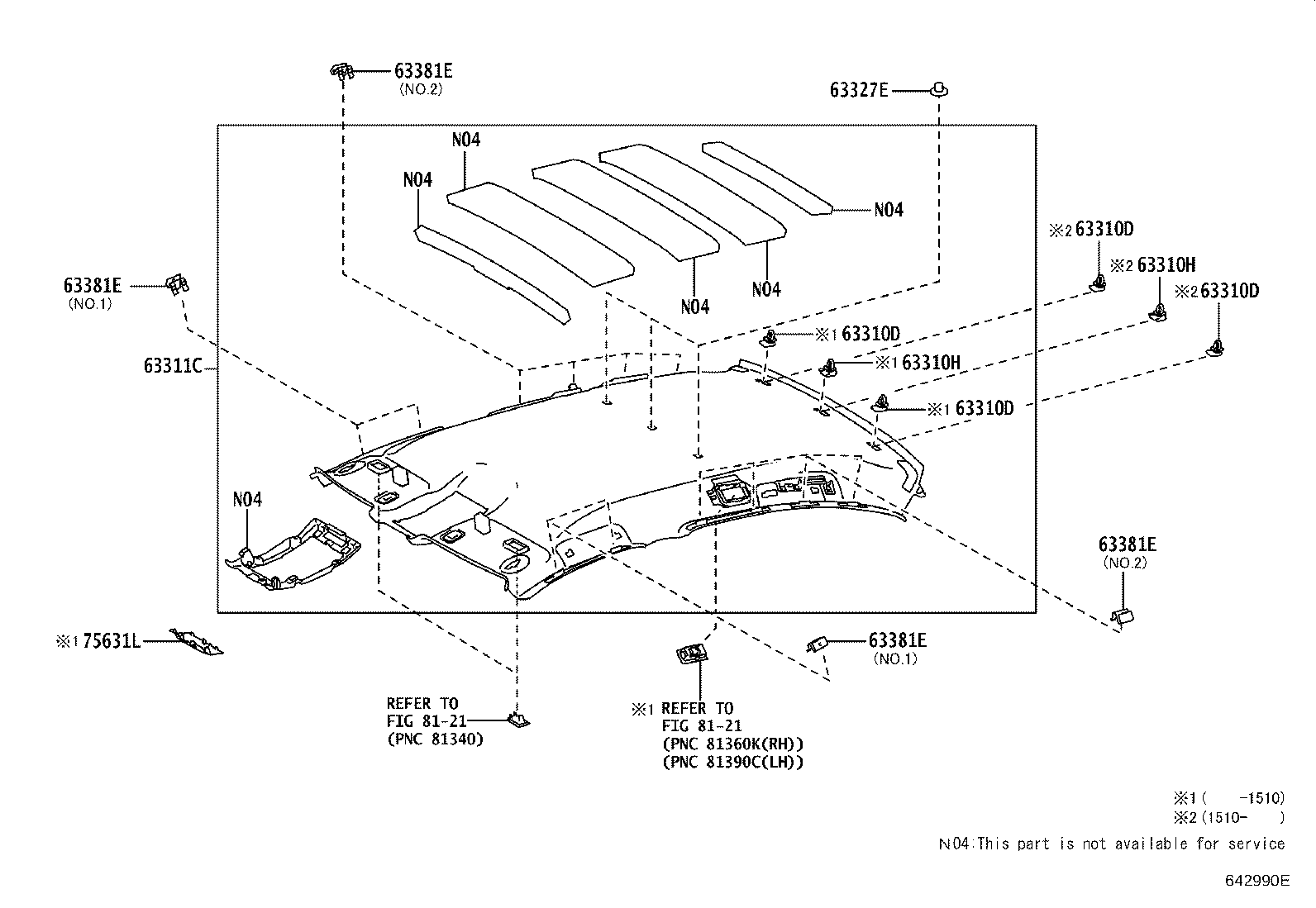

NORMAL ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
GRL10 |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
GRL10 |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
GRL10 |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
GRL10 |
2 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
GRL10 |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
GRL10 |
1 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63310-30U10A0 |
GRL10..RHD MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM00,01,03,50,51 |
1 | ||
| 63310-30U10B0 |
GRL10..RHD MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,21,23,4# |
1 | ||
| 63310-30U10C0 |
GRL10..RHD;GRL10..GCC MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),BLACK,TRIM04,05,24,25,3#,54,55 |
1 | ||
| 63310-30T80A0 |
AWL10;GRL10,11,GWL10..RHD;GRL10..LHD..8FC..GEN MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM0# |
1 | ||
| 63310-30T80B0 |
AWL10,GRL10,11,GWL10..ARL,GEN MOON ROOF-WITH(TILT & SLIDE),LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 63311-30480B0 |
AWL10,GRL10,11,GWL10..ARL,GEN LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 63311-30480C0 |
AWL10,GRL10,11,GWL10 INTERMITTENT WIPER-AUTO(RAIN SENSOR),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30480A0 |
GRL11,GWL10..ARL,GEN;GRL10..6FC..(ARL,GEN) IVORY,TRIM0#,5# |
1 | ||
| 63327E - FASTENER, ROOF HEADLINING, NO.1 | ||||
| 63327-30070 |
GRL10 |
3 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30091 |
GRL10 NO.1 |
4 | ||
| 63381-30120 |
GRL10 NO.2 |
8 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30091 |
GRL10 NO.1 |
4 | ||
| 63381-30120 |
GRL10 NO.2 |
8 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30091 |
GRL10 NO.1 |
4 | ||
| 63381-30120 |
GRL10 NO.2 |
8 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30091 |
GRL10 NO.1 |
4 | ||
| 63381-30120 |
GRL10 NO.2 |
8 | ||
| 75631L - GARNISH, ROOF TOP, FRONT | ||||
| 75631-30110A0 |
GRL10..ARL,GEN IVORY,TRIM0#,5# |
1 | ||
| 75631-30170B0 |
GRL10..ARL,GEN INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30110B0 |
GRL10..ARL,GEN LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 75631-30170A0 |
GRL10..ARL,GEN INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30170C0 |
GRL10..ARL,GEN INTERMITTENT WIPER-AUTO(RAIN SENSOR),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
(1201-1409)

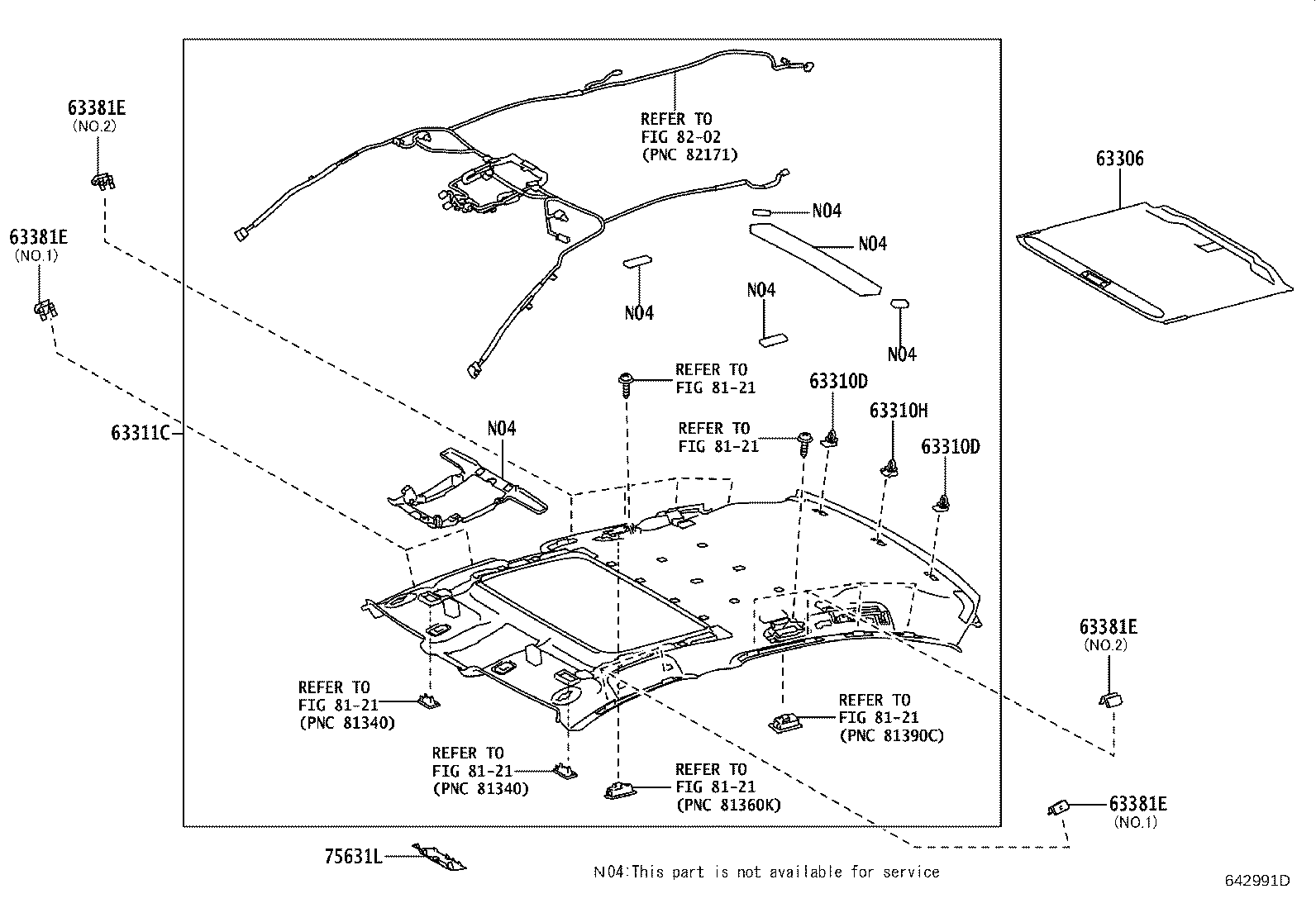

MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-30170B1 |
GRL11..GEN;GRL10..ARL,GEN MOON ROOF-WITH(TILT & SLIDE),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63306-30170A1 |
GRL11..GEN;GRL10..ARL,GEN MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 63306-30170A1 |
GRL10..ARL,GEN MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM00,01,03,50,51 |
1 | ||
| 63306-30170C1 |
GRL10 MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM04,05,24,25,3#,54,55 |
1 | ||
| 63306-30170B1 |
GRL10..ARL,GEN MOON ROOF-WITH(TILT & SLIDE),LT.GRAY,TRIM1#,20,21,23,4# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
GRL10 |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
GRL10 |
2 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
GRL10 |
1 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63310-30U10A0 |
GRL10..RHD MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM00,01,03,50,51 |
1 | ||
| 63310-30U10B0 |
GRL10..RHD MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,21,23,4# |
1 | ||
| 63310-30U10C0 |
GRL10..RHD;GRL10..GCC MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),BLACK,TRIM04,05,24,25,3#,54,55 |
1 | ||
| 63310-30T80A0 |
AWL10;GRL10,11,GWL10..RHD;GRL10..LHD..8FC..GEN MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM0# |
1 | ||
| 63310-30T80B0 |
AWL10,GRL10,11,GWL10..ARL,GEN MOON ROOF-WITH(TILT & SLIDE),LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 63311-30480B0 |
AWL10,GRL10,11,GWL10..ARL,GEN LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 63311-30480C0 |
AWL10,GRL10,11,GWL10 INTERMITTENT WIPER-AUTO(RAIN SENSOR),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30480A0 |
GRL11,GWL10..ARL,GEN;GRL10..6FC..(ARL,GEN) IVORY,TRIM0#,5# |
1 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30091 |
GRL10 NO.1 |
4 | ||
| 63381-30120 |
GRL10 NO.2 |
8 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30091 |
GRL10 NO.1 |
4 | ||
| 63381-30120 |
GRL10 NO.2 |
8 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30091 |
GRL10 NO.1 |
4 | ||
| 63381-30120 |
GRL10 NO.2 |
8 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30091 |
GRL10 NO.1 |
4 | ||
| 63381-30120 |
GRL10 NO.2 |
8 | ||
| 75631L - GARNISH, ROOF TOP, FRONT | ||||
| 75631-30110A0 |
GRL10..ARL,GEN IVORY,TRIM0#,5# |
1 | ||
| 75631-30170B0 |
GRL10..ARL,GEN INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30110B0 |
GRL10..ARL,GEN LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 75631-30170A0 |
GRL10..ARL,GEN INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30170C0 |
GRL10..ARL,GEN INTERMITTENT WIPER-AUTO(RAIN SENSOR),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
