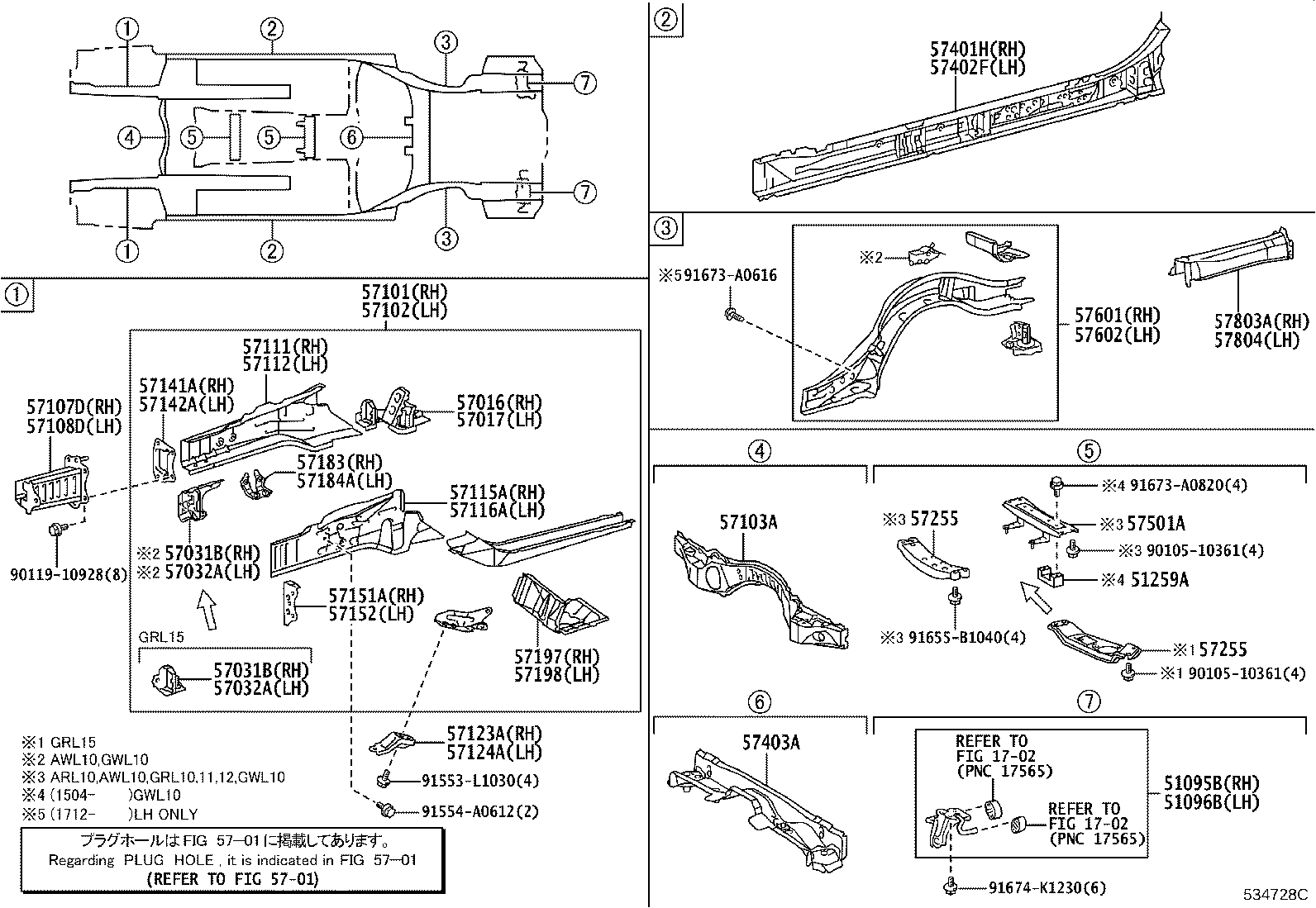

Toyota Lexus gs series GRL10 FLOOR SIDE MEMBER

Part #	Description	Period	Qty
51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH
51095-30020	GRL1#,GWL10	01/2012 - 09/2012	1
51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH
51096-30010	GRL1#	01/2012 - 10/2015	1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-30040	GRL10	01/2012 - 09/2013	1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-30040	GRL10	01/2012 - 09/2013	1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-30190	GRL10	01/2012 - 09/2013	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-30170	GRL10	01/2012 - 09/2013	1
57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3
57103-30021	GRL10,11,GWL10..RHD	01/2012 - 06/2012	1
57103-30022	GRL10..RHD	06/2012 - 09/2013	1
57107D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57107-30061	GRL10	01/2012 - 09/2013	1
57108D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
57108-30120	GRL1#,GWL10	01/2012 - 12/2012	1
57108-30121	GRL10	01/2013 - 09/2013	1
57111 - MEMBER, FRONT SIDE, RH
57111-30082	GRL10	01/2012 - 09/2013	1
57112 - MEMBER, FRONT SIDE, LH
57112-30082	GRL10	01/2012 - 09/2013	1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-30060	GRL10	01/2012 - 09/2013	1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-30030	GRL10	01/2012 - 09/2013	1
57123A - REINFORCEMENT, STRUT BAR BRACKET, RH
57305-30040	AWL10,GRL10,11,GWL10	01/2012 - 10/2015	1
57124A - REINFORCEMENT, STRUT BAR BRACKET, LH
57306-30040	AWL10,GRL10,11,GWL10	01/2012 - 10/2015	1
57141A - SUPPORT, FRONT BUMPER ARM, RH
57141-30040	GRL10	01/2012 - 09/2013	1
57142A - SUPPORT, FRONT BUMPER ARM, LH
57142-30040	GRL10	01/2012 - 09/2013	1
57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57151-30040	GRL10	01/2012 - 09/2013	1
57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57152-30040	GRL10	01/2012 - 09/2013	1
57183 - PLATE, FRONT SIDE MEMBER, NO.4 RH
57183-30030	GRL10	01/2012 - 09/2013	1
57184A - PLATE, FRONT SIDE MEMBER, NO.4 LH
57184-30020	GRL10	01/2012 - 09/2013	1
57197 - BOX, TORQUE, FRONT RH
57197-30050	GRL10	01/2012 - 09/2013	1
57198 - BOX, TORQUE, FRONT LH
57198-30050	GRL10	01/2012 - 09/2013	1
57255 - MEMBER, ENGINE REAR MOUNTING
57255-30130	GRL10,11..6FC	01/2012 - 10/2015	1
57255 - MEMBER, ENGINE REAR MOUNTING
57255-30130	GRL10,11..6FC	01/2012 - 10/2015	1
57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-30120	GRL10	01/2012 - 09/2013	1
57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-30110	GRL10	01/2012 - 09/2013	1
57403A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57809-30020	AWL10,GRL1#,GWL10	01/2012 - 10/2015	1
57501A - BRACE SUB-ASSY, FRONT FLOOR, CENTER
51405-30040	GRL10	01/2012 - 09/2013	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-30920	GRL10	01/2012 - 09/2013	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-30932	GRL10	01/2012 - 09/2013	1
57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57803-30030	GRL10	01/2012 - 09/2013	1
57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
57804-30040	GRL10	01/2012 - 09/2013	1
Common parts
90105-10361
90119-10928
91553-L1030
91554-A0612
91655-B1040
91673-A0616
91673-A0820
91674-K1230
Linked diagrams
1702
5701

GRL10R-BETQH (2012)

(1201- )
