GRL10R-BETQH (2012)
Toyota Lexus Gs Series
Production
Jan 2012
-
Sep 2013
Engine
2GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )ARL10,GRL10,11,12..RHD

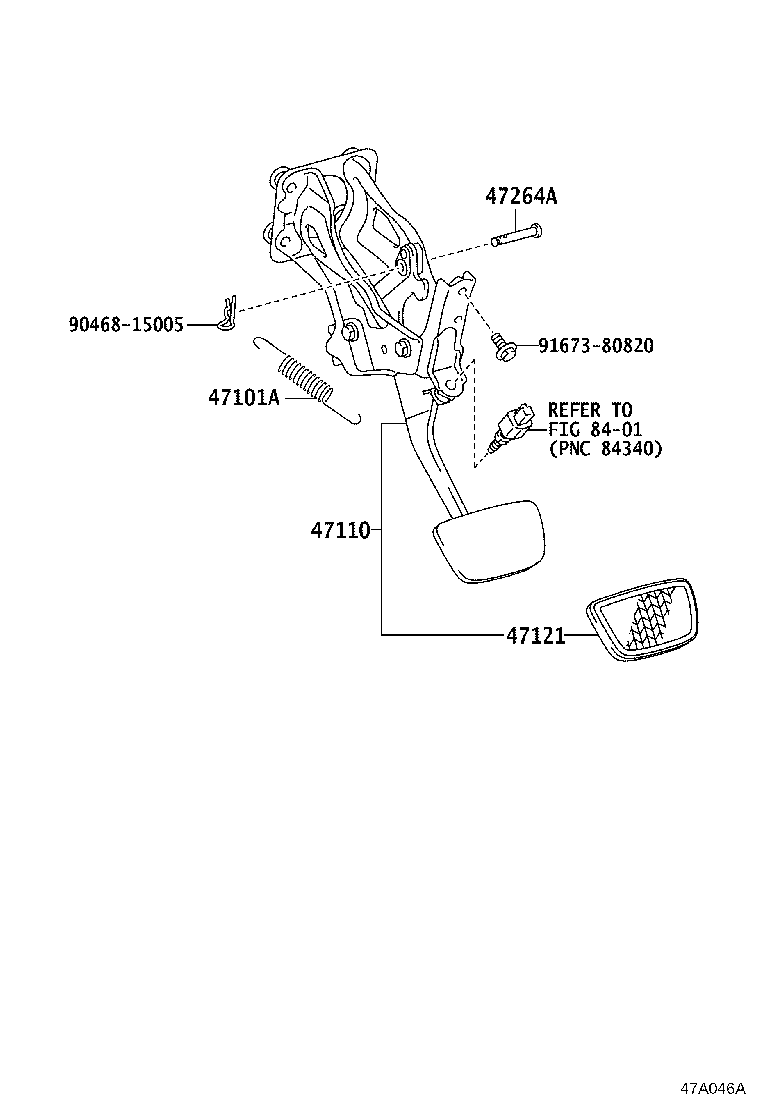

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-13009 |
GRL10 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-30560 |
GRL10..RHD |
1 | ||
| 47110-30570 |
GRL10..RHD F SPORT |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-30090 |
GRL10 F SPORT |
1 | ||
| 47121-30080 |
GRL10 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-06180 |
GRL10 |
1 | ||
| Common parts | ||||
| 90468-15005 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
