GRL10L-BEZQH (2013)

Toyota Lexus Gs Series

Production Sep 2013 - Oct 2015
Engine 2GRFSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1201-1510)

Click highlighted areas on diagram

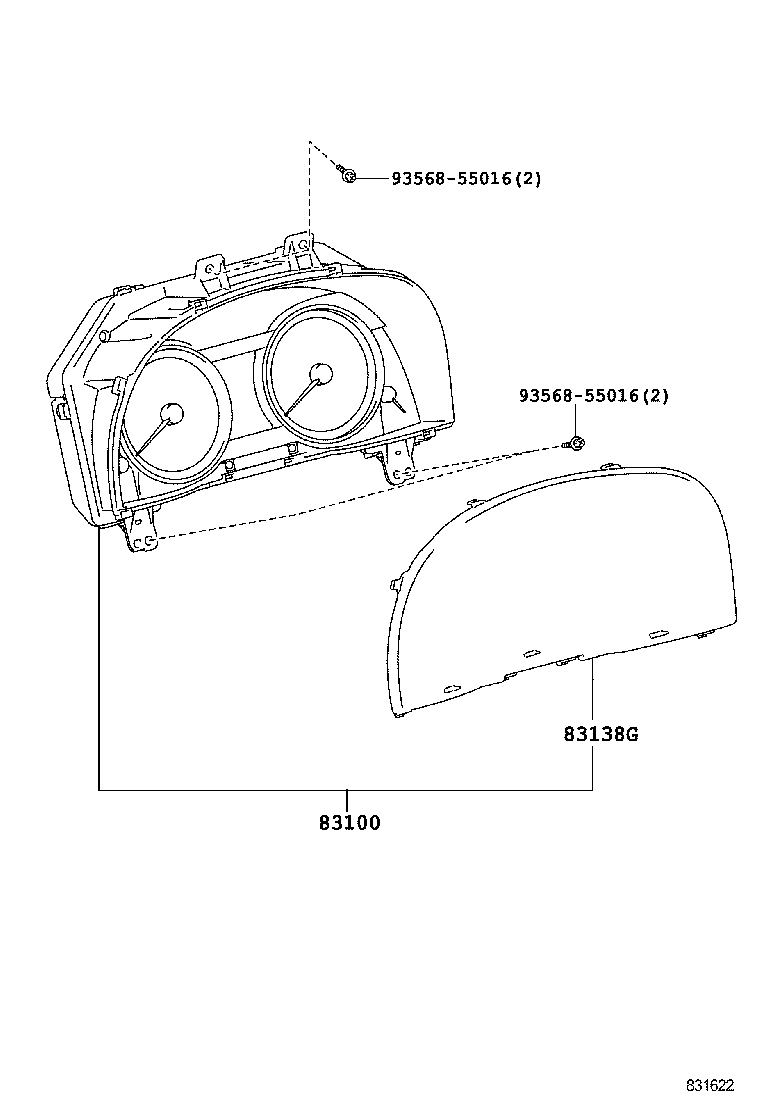

COMBINATION METER

diagram 83100 83138G 9356855016 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-30R40

GRL1#

DENSO

 1
83800-3A310

GRL1#

DENSO

 1
83800-3A680

GRL1#

DENSO

 1
83800-3A560

GRL1#

DENSO

 1
83138G - GLASS, COMBINATION METER
83852-30K60

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
83852-30K60

GRL10

 1
Common parts
93568-55016

ILLUST NO. 2 OF 2(1309- )LHD

Click highlighted areas on diagram

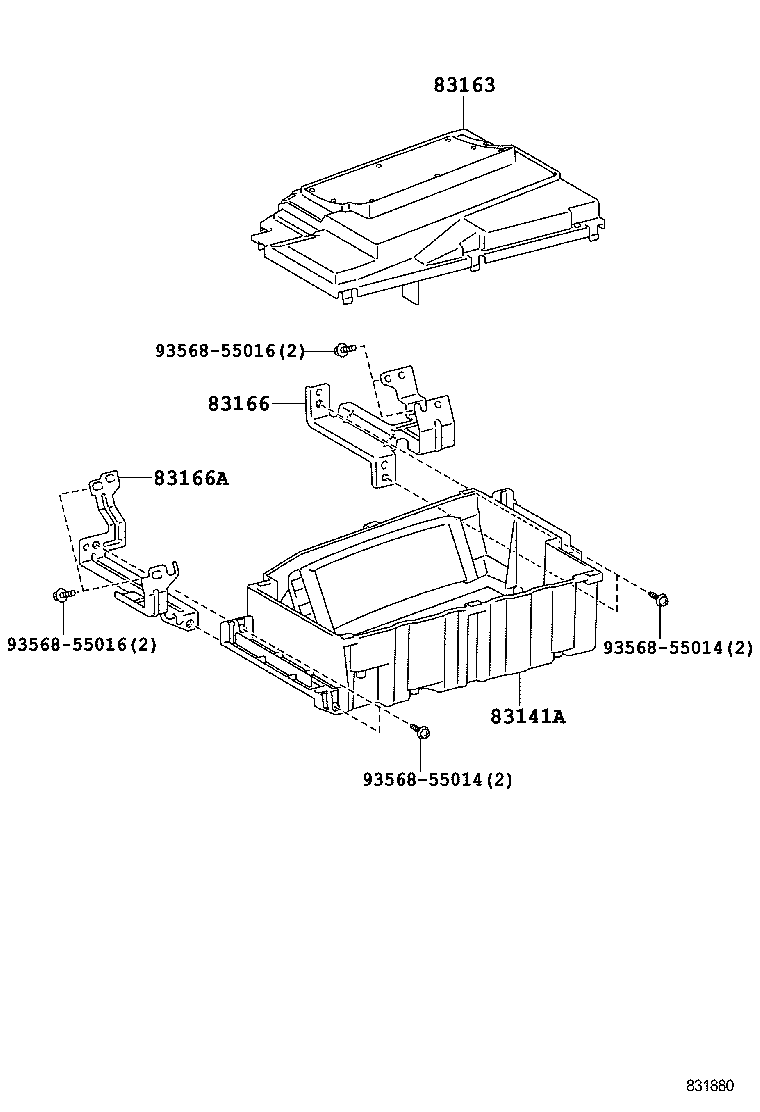

HEAD-UP DISPLAY

diagram 83141A 83163 83166 83166A 9356855014 9356855014 9356855016 9356855016
Part # Description Qty Price
83141A - COMPUTER, COMBINATION METER MIRROR
83141-30100

GRL1#,GWL10..LHD

HEAD UP DISPLAY-WITH

 1
83141-30160

AWL10,GRL1#,GWL10..LHD

HEAD UP DISPLAY-WITH

 1
83141-30130

AWL10,GRL1#,GWL10..LHD

HEAD UP DISPLAY-WITH

 1
83163 - PLATE, COMBINATION METER MIRROR, NO.1
83163-30130

AWL10,GRL1#,GWL10..LHD

HEAD UP DISPLAY-WITH

 1
83166 - BRACKET, COMBINATION METER MIRROR, NO.1
83166-30100

GRL10..LHD

HEAD UP DISPLAY-WITH

 1
83166-30100

GRL10..LHD..8FC;AWL10,GRL11,15,GWL10..LHD

HEAD UP DISPLAY-WITH

 1
83166A - BRACKET, COMBINATION METER MIRROR, NO.1
83166-30130

GRL10..LHD

HEAD UP DISPLAY-WITH

 1
83166-30130

GRL10..LHD..8FC;AWL10,GRL11,15,GWL10..LHD

HEAD UP DISPLAY-WITH

 1
Common parts
93568-55014
93568-55016
