GRL10L-BEZQH (2013)

Toyota Lexus Gs Series

Production Sep 2013 - Oct 2015
Engine 2GRFSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201-1510)2GRFSE,4GRFSE

Click highlighted areas on diagram

12V 150A

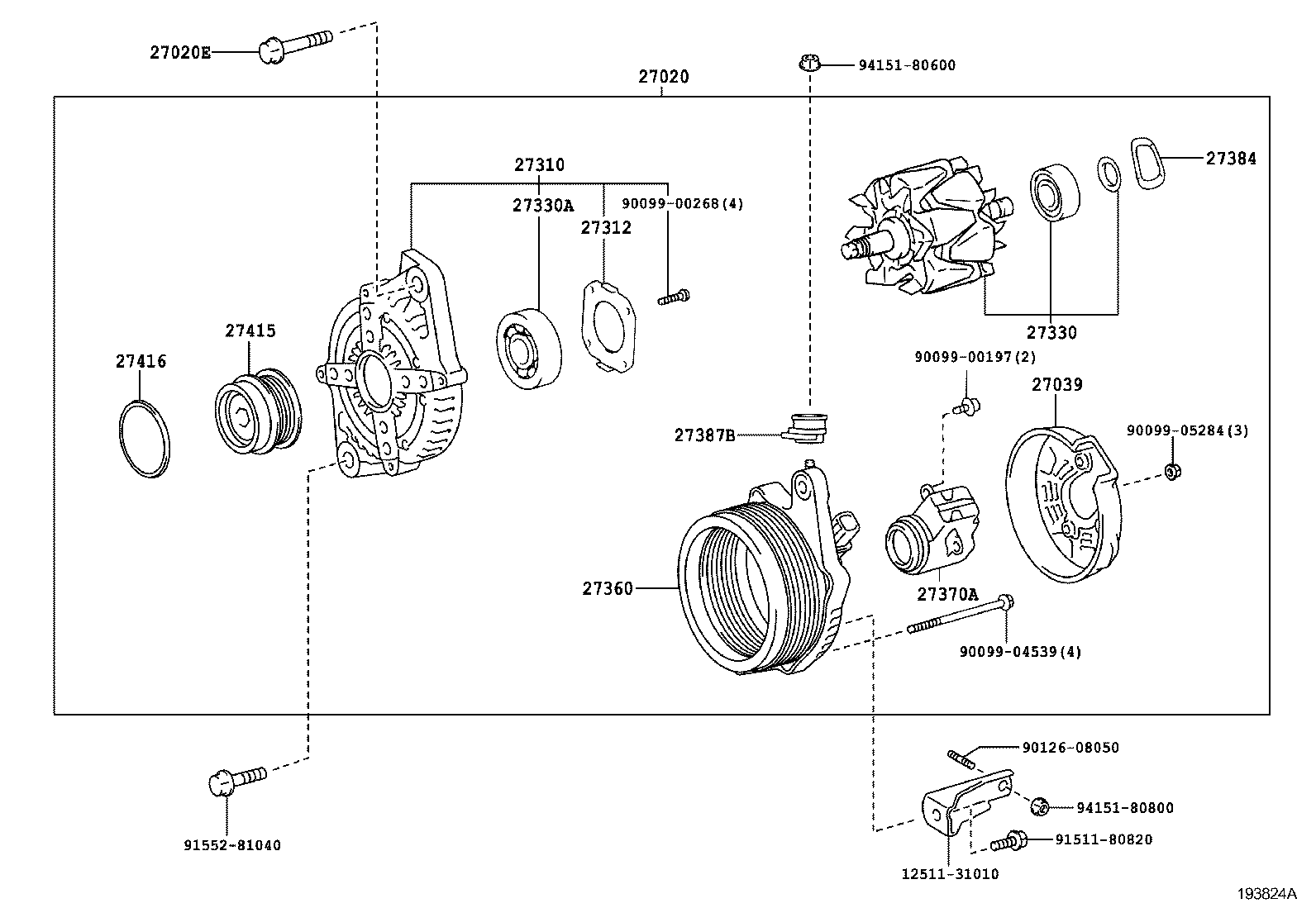

diagram 1251131010 27020 27020E 27039 27310 27312 27330 27330A 27360 27370A 27384 27387B 27415 27416 9009900197 9009900268 9009904539 9009905284 9012608050 9151180820 9155281040 9415180600 9415180800
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-31212

2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15

12V 150A

 1
27060-31212

2GRFSE..GRL10

12V 150A

 1
27020E - BOLT(FOR ALTERNATOR)
91552-81070

2GRFSE,4GRFSE..GRL1#

 1
27039 - COVER, ALTERNATOR REAR END
27039-31390

2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15

 1
27039-31390

2GRFSE..GRL10

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-31220

2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15

 1
27310-31220

2GRFSE..GRL10

 1
27312 - PLATE, RETAINER
27312-72100

2GRFSE..GRL10

 1
27312-72100

2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-58460

2GRFSE..GRL10

 1
27330-58460

2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10223

2GRFSE..GRL10

 1
90099-10223

2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15

 1
27360 - COIL ASSY, ALTERNATOR
27360-31420

2GRFSE..GRL10

 1
27360-31420

2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

2GRFSE..GRL10

 1
27370-31220

2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15

 1
27384 - WASHER
27384-50030

2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15

 1
27384-50030

2GRFSE..GRL10

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-20130

2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15

 1
27387-20130

2GRFSE..GRL10

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W130

2GRFSE,4GRFSE..GRL1#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

2GRFSE,4GRFSE..GRL1#

 1
Common parts
12511-31010
90099-00197
90099-00268
90099-04539
90099-05284
90126-08050
91511-80820
91552-81040
94151-80600
94151-80800
