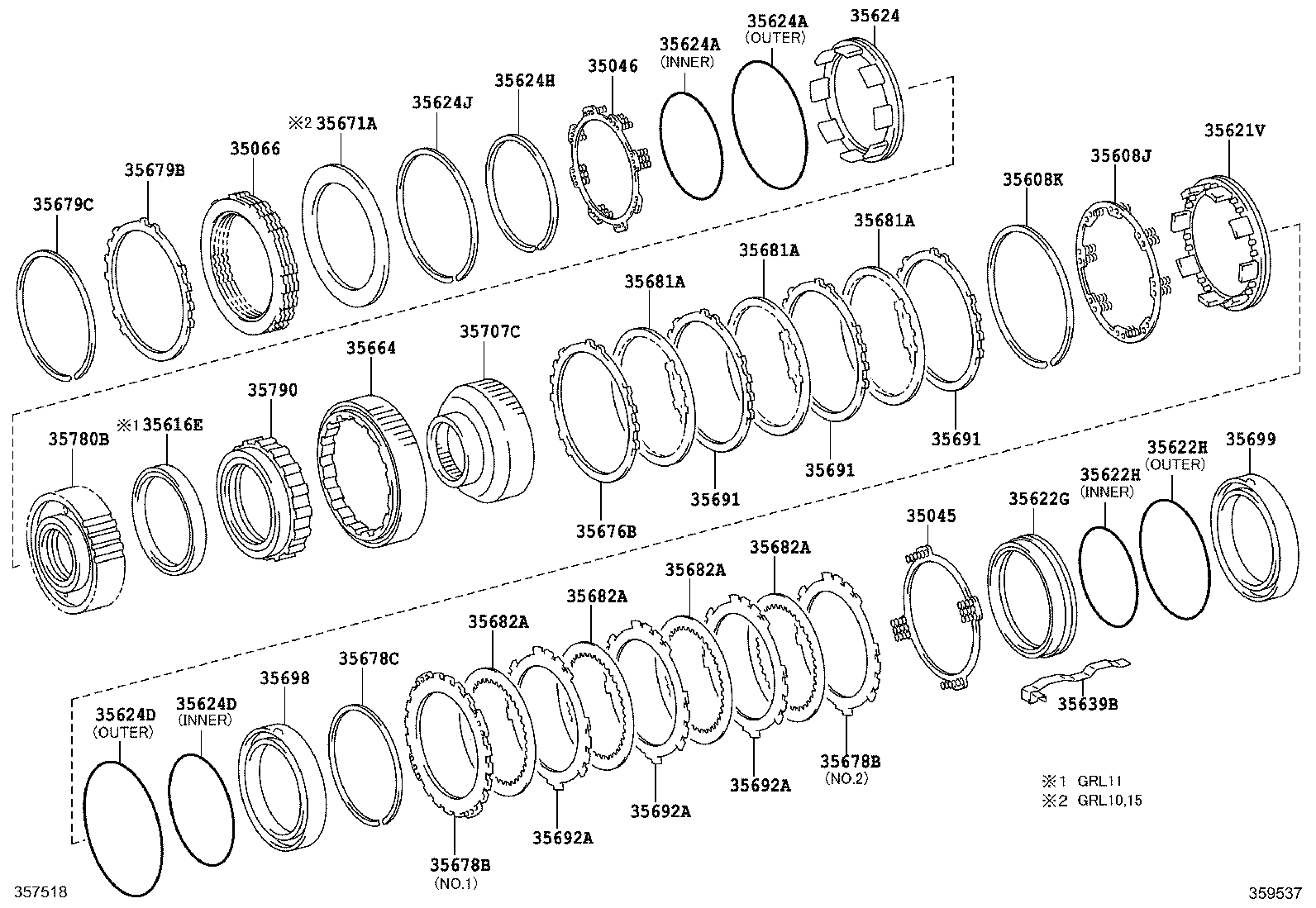

Toyota Lexus gs series GRL10 CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

Part #	Description	Period	Qty
35045 - SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35045-60020	GRL10	01/2012 - 09/2013	1
35046 - SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35046-60010	GRL10	01/2012 - 09/2013	1
35066 - DISC SET, 2ND BRAKE
35066-50020	GRL10	01/2012 - 09/2013	1
35608J - SPRING SUB-ASSY, BRAKE PISTON RETURN
35608-60020	GRL10	01/2012 - 09/2013	1
35608K - RING, SNAP (FOR BRAKE PISTON RETURN SPRING)
90520-99039	GRL10	01/2012 - 09/2013	1
35621V - PISTON, BRAKE, NO.1
35621-60020	GRL10	01/2012 - 09/2013	1
35622G - PISTON, BRAKE, NO.2
35622-50010	GRL10	01/2012 - 09/2013	1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99095	GRL10 OUTER	01/2012 - 09/2013	1
90301-99118	GRL10 INNER	01/2012 - 09/2013	1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99095	GRL10 OUTER	01/2012 - 09/2013	1
90301-99118	GRL10 INNER	01/2012 - 09/2013	1
35624 - PISTON, 2ND BRAKE
35624-60010	GRL10	01/2012 - 09/2013	1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99095	GRL10 INNER	01/2012 - 09/2013	1
90301-99115	GRL10 OUTER	01/2012 - 09/2013	1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99095	GRL10 INNER	01/2012 - 09/2013	1
90301-99115	GRL10 OUTER	01/2012 - 09/2013	1
35624D - RING, O (FOR BRAKE PISTON NO.4)
90301-99142	GRL10 INNER	01/2012 - 09/2013	1
90301-99126	GRL10 OUTER	01/2012 - 09/2013	1
35624D - RING, O (FOR BRAKE PISTON NO.4)
90301-99142	GRL10 INNER	01/2012 - 09/2013	1
90301-99126	GRL10 OUTER	01/2012 - 09/2013	1
35624H - RING, SNAP (FOR 2ND BRAKE PISTON)
90520-99077	GRL10	01/2012 - 09/2013	1
35624J - RING, HOLE SNAP (FOR 2ND BRAKE PISTON)
90521-99130	GRL10	01/2012 - 09/2013	1
35639B - SPRING, BRAKE PLATE STOPPER
35639-60010	GRL10	01/2012 - 09/2013	1
35664 - CYLINDER, 2ND BRAKE
35664-60010	GRL10	01/2012 - 09/2013	1
35671A - PLATE, BRAKE CUSHION
35671-60010	GRL10	01/2012 - 09/2013	1
35676B - FLANGE, BRAKE, NO.1
35676-60110	GRL10 T=2.6,MARK 3	01/2012 - 09/2013	1
35676-60100	GRL10 T=2.4,MARK 2	01/2012 - 09/2013	1
35676-60080	GRL10 T=2.0,MARK 0	01/2012 - 09/2013	1
35676-60090	GRL10 T=2.2,MARK 1	01/2012 - 09/2013	1
35678B - FLANGE, BRAKE, NO.2
35678-60030	GRL10 T=2.1 MARK 1,NO.2	01/2012 - 09/2013	1
35678-60020	GRL10 T=2.0 MARK 0,NO.2	01/2012 - 09/2013	1
35678-60050	GRL10 T=2.3 MARK 3,NO.2	01/2012 - 09/2013	1
35678-60080	GRL10 T=2.6 MARK 6,NO.2	01/2012 - 09/2013	1
35678-60070	GRL10 T=2.5 MARK 5,NO.2	01/2012 - 09/2013	1
35678-60090	GRL10 T=2.7 MARK 7,NO.2	01/2012 - 09/2013	1
35678-60010	GRL10 T=4.6,NO.1	01/2012 - 09/2013	1
35678-60060	GRL10 T=2.4 MARK 4,NO.2	01/2012 - 09/2013	1
35678-60040	GRL10 T=2.2 MARK 2,NO.2	01/2012 - 09/2013	1
35678B - FLANGE, BRAKE, NO.2
35678-60030	GRL10 T=2.1 MARK 1,NO.2	01/2012 - 09/2013	1
35678-60020	GRL10 T=2.0 MARK 0,NO.2	01/2012 - 09/2013	1
35678-60050	GRL10 T=2.3 MARK 3,NO.2	01/2012 - 09/2013	1
35678-60080	GRL10 T=2.6 MARK 6,NO.2	01/2012 - 09/2013	1
35678-60070	GRL10 T=2.5 MARK 5,NO.2	01/2012 - 09/2013	1
35678-60090	GRL10 T=2.7 MARK 7,NO.2	01/2012 - 09/2013	1
35678-60010	GRL10 T=4.6,NO.1	01/2012 - 09/2013	1
35678-60060	GRL10 T=2.4 MARK 4,NO.2	01/2012 - 09/2013	1
35678-60040	GRL10 T=2.2 MARK 2,NO.2	01/2012 - 09/2013	1
35678C - RING, SNAP (FOR BRAKE NO.2)
90520-99075	GRL10	01/2012 - 09/2013	1
35679B - FLANGE, BRAKE, NO.3
35679-60010	GRL10	01/2012 - 09/2013	1
35679C - RING, SNAP (FOR BRAKE NO.3)
90520-99080	GRL10	01/2012 - 09/2013	1
35681A - DISC, BRAKE, NO.1
35681-60010	GRL10	01/2012 - 09/2013	3
35681A - DISC, BRAKE, NO.1
35681-60010	GRL10	01/2012 - 09/2013	3
35681A - DISC, BRAKE, NO.1
35681-60010	GRL10	01/2012 - 09/2013	3
35682A - DISC, BRAKE, NO.2
35682-50010	GRL10	01/2012 - 09/2013	4
35682A - DISC, BRAKE, NO.2
35682-50010	GRL10	01/2012 - 09/2013	4
35682A - DISC, BRAKE, NO.2
35682-50010	GRL10	01/2012 - 09/2013	4
35682A - DISC, BRAKE, NO.2
35682-50010	GRL10	01/2012 - 09/2013	4
35691 - PLATE, BRAKE, NO.1
35691-60010	GRL10	01/2012 - 09/2013	3
35691 - PLATE, BRAKE, NO.1
35691-60010	GRL10	01/2012 - 09/2013	3
35691 - PLATE, BRAKE, NO.1
35691-60010	GRL10	01/2012 - 09/2013	3
35692A - PLATE, BRAKE, NO.2
35692-60010	GRL10	01/2012 - 09/2013	3
35692A - PLATE, BRAKE, NO.2
35692-60010	GRL10	01/2012 - 09/2013	3
35692A - PLATE, BRAKE, NO.2
35692-60010	GRL10	01/2012 - 09/2013	3
35698 - CYLINDER, BRAKE, NO.1
35698-60010	GRL10	01/2012 - 09/2013	1
35699 - CYLINDER, BRAKE, NO.2
35699-60010	GRL10	01/2012 - 09/2013	1
35707C - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-60010	GRL10	01/2012 - 09/2013	1
35780B - CLUTCH ASSY, 1 WAY N0.2
35780-50040	GRL10	01/2012 - 09/2013	1
35790 - CLUTCH ASSY, 1 WAY
35790-50020	GRL10	01/2012 - 09/2013	1

GRL10L-BETQHV (2012)

(1201- )6FC
