GRL10L-BETQH (2012)

Toyota Lexus Gs Series

Production Jan 2012 - Sep 2013
Engine 2GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

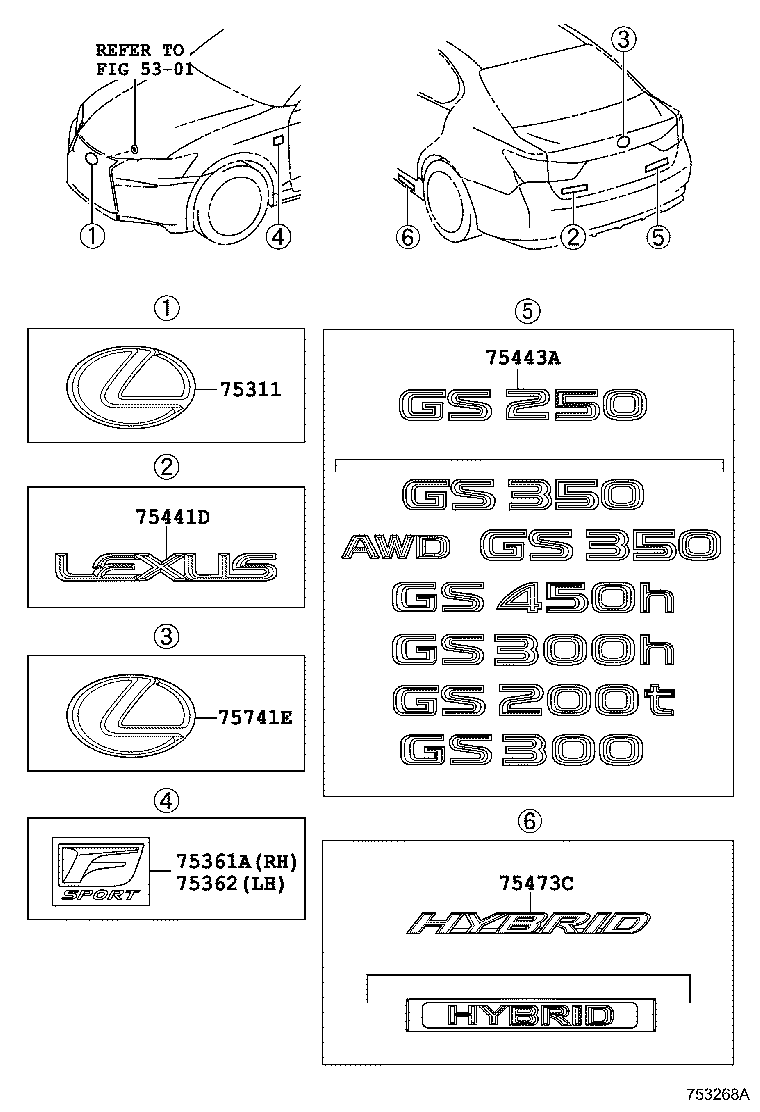

Click highlighted areas on diagram

diagram 5301 75311 75361A 75362 75441D 75443A 75473C 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
53141-48050

GRL10,11..LHD..GEN

CHINA SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH

 1
53141-48050

GRL10,11..LHD..GEN

TAIWAN SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH

 1
53141-48050

GRL10,11..LHD..GEN

TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH

 1
90975-02125

GRL1#

 1
75361A - PLATE, FRONT FENDER NAME, NO.1
75361-30291

GRL10

F SPORT,F SPORT

 1
75362 - PLATE, FRONT FENDER NAME, NO.2
75362-30011

GRL10

F SPORT,F SPORT

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-30440

GRL10

LEXUS

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-30620

GRL10

GS 350

 1
75741E - EMBLEM, SYMBOL
90975-02078

GRL10

 1
Linked diagrams
5301
