AWL10R-BEXQHQ (2013)
Toyota Lexus Gs Series
(1201-1510)

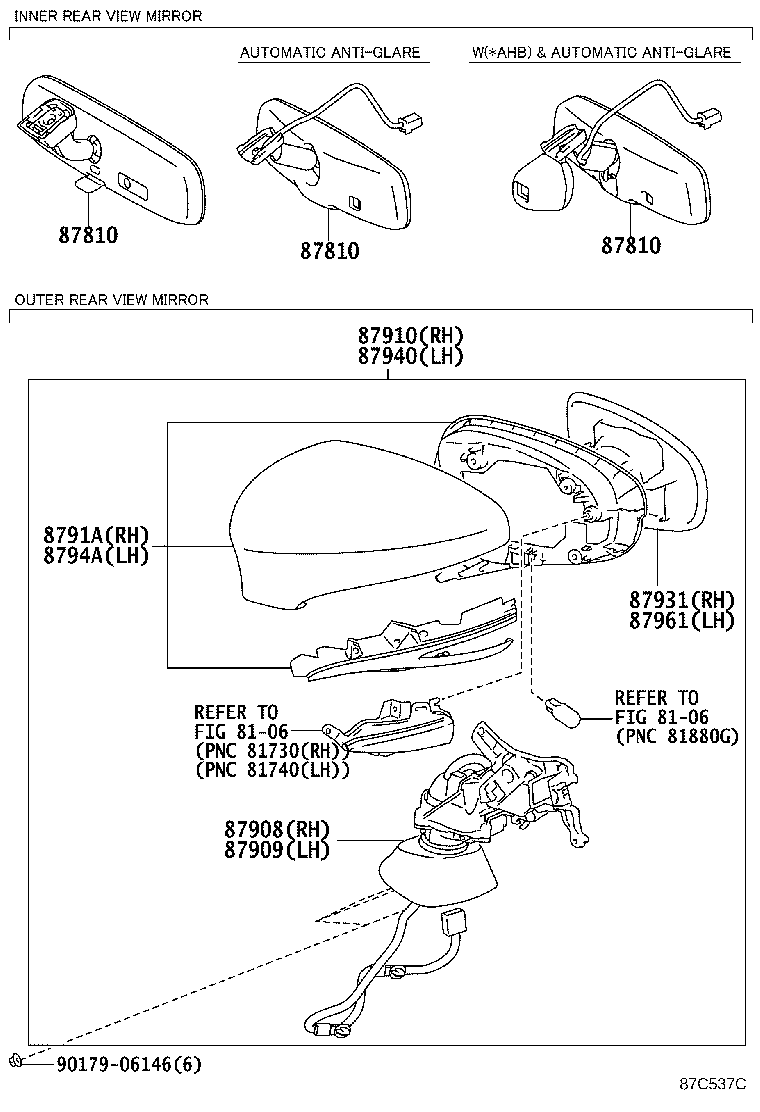

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0W730 |
AWL10;GRL10..8FC..ARL;GRL11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM |
1 | ||
| 87810-60191 |
GRL10..8FC..(ARL,GEN);AWL10,GRL11,15,GWL10..ARL,GEN |
1 | ||
| 87810-0W730 |
GRL10..8FC..(ARL,GEN);AWL10,GRL11,15,GWL10..ARL,GEN OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL |
1 | ||
| 87810-0W742 |
AWL10..LHD;AWL10,GRL10,11,GWL10..ARL HEADLAMP-DISCHARGE & WITH(AFS&*AHB&NIGHT VIEW)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM |
1 | ||
| 87810-0W742 |
AWL10;GRL10,11,GWL10..ARL HEADLAMP-DISCHARGE & WITH(AFS & *AHB)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL |
1 | ||
| 87810-0W742 |
AWL10;GRL10,11,GWL10..ARL HEADLAMP-DISCHARGE & WITH(AFS & *AHB)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM |
1 | ||
| 87810-0W742 |
AWL10;GRL10,11,GWL10..ARL HEADLAMP-LED & WITH(AFS & *AHB)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE& ASPHERICAL |
1 | ||
| 87810-0W742 |
AWL10..LHD;AWL10,GRL10,11,GWL10..ARL HEADLAMP-LED & WITH(AFS & *AHB & NIGHT VIEW)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH)& ANTI-GLARE & *BSM |
1 | ||
| 87810-0W742 |
AWL10;GRL10,11,GWL10..ARL HEADLAMP-LED & WITH(AFS & *AHB)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE& *BSM |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0W730 |
AWL10;GRL10..8FC..ARL;GRL11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM |
1 | ||
| 87810-60191 |
GRL10..8FC..(ARL,GEN);AWL10,GRL11,15,GWL10..ARL,GEN |
1 | ||
| 87810-0W730 |
GRL10..8FC..(ARL,GEN);AWL10,GRL11,15,GWL10..ARL,GEN OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL |
1 | ||
| 87810-0W742 |
AWL10..LHD;AWL10,GRL10,11,GWL10..ARL HEADLAMP-DISCHARGE & WITH(AFS&*AHB&NIGHT VIEW)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM |
1 | ||
| 87810-0W742 |
AWL10;GRL10,11,GWL10..ARL HEADLAMP-DISCHARGE & WITH(AFS & *AHB)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL |
1 | ||
| 87810-0W742 |
AWL10;GRL10,11,GWL10..ARL HEADLAMP-DISCHARGE & WITH(AFS & *AHB)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM |
1 | ||
| 87810-0W742 |
AWL10;GRL10,11,GWL10..ARL HEADLAMP-LED & WITH(AFS & *AHB)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE& ASPHERICAL |
1 | ||
| 87810-0W742 |
AWL10..LHD;AWL10,GRL10,11,GWL10..ARL HEADLAMP-LED & WITH(AFS & *AHB & NIGHT VIEW)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH)& ANTI-GLARE & *BSM |
1 | ||
| 87810-0W742 |
AWL10;GRL10,11,GWL10..ARL HEADLAMP-LED & WITH(AFS & *AHB)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE& *BSM |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0W730 |
AWL10;GRL10..8FC..ARL;GRL11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM |
1 | ||
| 87810-60191 |
GRL10..8FC..(ARL,GEN);AWL10,GRL11,15,GWL10..ARL,GEN |
1 | ||
| 87810-0W730 |
GRL10..8FC..(ARL,GEN);AWL10,GRL11,15,GWL10..ARL,GEN OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL |
1 | ||
| 87810-0W742 |
AWL10..LHD;AWL10,GRL10,11,GWL10..ARL HEADLAMP-DISCHARGE & WITH(AFS&*AHB&NIGHT VIEW)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM |
1 | ||
| 87810-0W742 |
AWL10;GRL10,11,GWL10..ARL HEADLAMP-DISCHARGE & WITH(AFS & *AHB)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL |
1 | ||
| 87810-0W742 |
AWL10;GRL10,11,GWL10..ARL HEADLAMP-DISCHARGE & WITH(AFS & *AHB)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM |
1 | ||
| 87810-0W742 |
AWL10;GRL10,11,GWL10..ARL HEADLAMP-LED & WITH(AFS & *AHB)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE& ASPHERICAL |
1 | ||
| 87810-0W742 |
AWL10..LHD;AWL10,GRL10,11,GWL10..ARL HEADLAMP-LED & WITH(AFS & *AHB & NIGHT VIEW)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH)& ANTI-GLARE & *BSM |
1 | ||
| 87810-0W742 |
AWL10;GRL10,11,GWL10..ARL HEADLAMP-LED & WITH(AFS & *AHB)&OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE& *BSM |
1 | ||
| 87908 - ACTUATOR ASSY, OUTER MIRROR, RH | ||||
| 87908-30E10C1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,BLACK OPAL MC.,214 |
1 | ||
| 87908-30C91A1 |
AWL10,GRL10,11,GWL10..RHD OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL,WHITE NOVA GF.,083 |
1 | ||
| 87908-30E10A0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,WHITE NOVA GF.,083 |
1 | ||
| 87908-30E10A1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,WHITE PEARL CS.,077 |
1 | ||
| 87908-30E10B0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,SONIC SILVER,1J2 |
1 | ||
| 87908-30E10B1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,MERCURY GRAY MC.,1H9 |
1 | ||
| 87908-30E10C0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,STARLIGHT BLACK GF.,217 |
1 | ||
| 87908-30E10C2 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,BLACK,212 |
1 | ||
| 87908-30E10D0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,CRIMSON CS. GF.,3S8 |
1 | ||
| 87908-30E10E0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,FIRE AGATE M.M.,4V3 |
1 | ||
| 87908-30E10J0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,METEOR BLUE M.M.,8W3 |
1 | ||
| 87908-30C91B2 |
AWL10,GRL10,11,GWL10..RHD OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL,SONIC TITANIUM,1J7 |
1 | ||
| 87908-30E10J1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,LAPIS LAZULI MC.,8V3 |
1 | ||
| 87908-30D51B2 |
AWL10,GRL10,11,GWL10..RHD SONIC TITANIUM,1J7 |
1 | ||
| 87908-30E10B2 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,SONIC TITANIUM,1J7 |
1 | ||
| 87909 - ACTUATOR ASSY, OUTER MIRROR, LH | ||||
| 87909-30E20C1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,BLACK OPAL MC.,214 |
1 | ||
| 87909-30D81A1 |
AWL10,GRL10,11,GWL10..RHD OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL,WHITE NOVA GF.,083 |
1 | ||
| 87909-30E20A0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,WHITE PEARL CS.,077 |
1 | ||
| 87909-30E20A1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,WHITE NOVA GF.,083 |
1 | ||
| 87909-30E20B0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,SONIC SILVER,1J2 |
1 | ||
| 87909-30E20B1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,MERCURY GRAY MC.,1H9 |
1 | ||
| 87909-30E20C2 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,BLACK,212 |
1 | ||
| 87909-30E20D0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,CRIMSON CS. GF.,3S8 |
1 | ||
| 87909-30E20C0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,STARLIGHT BLACK GF.,217 |
1 | ||
| 87909-30E20E0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,FIRE AGATE M.M.,4V3 |
1 | ||
| 87909-30E20J0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,METEOR BLUE M.M.,8W3 |
1 | ||
| 87909-30E20J1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,LAPIS LAZULI MC.,8V3 |
1 | ||
| 87909-30E20B2 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,SONIC TITANIUM,1J7 |
1 | ||
| 87909-30E41B2 |
AWL10,GRL10,11,GWL10..RHD SONIC TITANIUM,1J7 |
1 | ||
| 87909-30D81B2 |
AWL10,GRL10,11,GWL10..RHD OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL,SONIC TITANIUM,1J7 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-30E10C1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,BLACK OPAL MC.,214 |
1 | ||
| 87910-30C91A1 |
AWL10,GRL10,11,GWL10..RHD OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL,WHITE NOVA GF.,083 |
1 | ||
| 87910-30E10A0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,WHITE PEARL CS.,077 |
1 | ||
| 87910-30E10A1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,WHITE NOVA GF.,083 |
1 | ||
| 87910-30E10B0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,MERCURY GRAY MC.,1H9 |
1 | ||
| 87910-30E10C0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,BLACK,212 |
1 | ||
| 87910-30E10B1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,SONIC SILVER,1J2 |
1 | ||
| 87910-30E10C2 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,STARLIGHT BLACK GF.,217 |
1 | ||
| 87910-30E10D0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,CRIMSON CS. GF.,3S8 |
1 | ||
| 87910-30E10J0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,LAPIS LAZULI MC.,8V3 |
1 | ||
| 87910-30E10J1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,METEOR BLUE M.M.,8W3 |
1 | ||
| 87910-30E10E1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,FIRE AGATE M.M.,4V3 |
1 | ||
| 87910-30D51B2 |
AWL10,GRL10,11,GWL10..RHD SONIC TITANIUM,1J7 |
1 | ||
| 87910-30C91B2 |
AWL10,GRL10,11,GWL10..RHD OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL,SONIC TITANIUM,1J7 |
1 | ||
| 87910-30E10B2 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,SONIC TITANIUM,1J7 |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791A-30C90C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,212 |
1 | ||
| 8791A-30C90C1 |
AWL10,GRL10,11,GWL10..RHD BLACK OPAL MC.,214 |
1 | ||
| 8791A-30C90B1 |
AWL10,GRL10,11,GWL10..RHD SONIC SILVER,1J2 |
1 | ||
| 8791A-30C90A0 |
AWL10,GRL10,11,GWL10..RHD WHITE PEARL CS.,077 |
1 | ||
| 8791A-30C90C2 |
AWL10,GRL10,11,GWL10..RHD STARLIGHT BLACK GF.,217 |
1 | ||
| 8791A-30C90D0 |
AWL10,GRL10,11,GWL10..RHD CRIMSON CS. GF.,3S8 |
1 | ||
| 8791A-30C90J1 |
AWL10,GRL10,11,GWL10..RHD METEOR BLUE M.M.,8W3 |
1 | ||
| 8791A-30C90B0 |
AWL10,GRL10,11,GWL10..RHD MERCURY GRAY MC.,1H9 |
1 | ||
| 8791A-30C90E1 |
AWL10,GRL10,11,GWL10..RHD FIRE AGATE M.M.,4V3 |
1 | ||
| 8791A-30C90J0 |
AWL10,GRL10,11,GWL10..RHD LAPIS LAZULI MC.,8V3 |
1 | ||
| 8791A-30C90A1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,WHITE NOVA GF.,083 |
1 | ||
| 8791A-30C90B2 |
AWL10,GRL10,11,GWL10..RHD SONIC TITANIUM,1J7 |
1 | ||
| 8791A-30C90A1 |
AWL10,GRL10,11,GWL10..RHD OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL,WHITE NOVA GF.,083 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-30C90 |
AWL10,GRL1#,GWL10..ARL,GEN OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL |
1 | ||
| 87931-30D30 |
AWL10,GRL1#,GWL10..ARL,GEN |
1 | ||
| 87931-50740 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-30E90C1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,BLACK OPAL MC.,214 |
1 | ||
| 87940-30D81A1 |
AWL10,GRL10,11,GWL10..RHD OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL,WHITE NOVA GF.,083 |
1 | ||
| 87940-30E90A0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,WHITE PEARL CS.,077 |
1 | ||
| 87940-30E90A1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,WHITE NOVA GF.,083 |
1 | ||
| 87940-30E90B1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,SONIC SILVER,1J2 |
1 | ||
| 87940-30E90C0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,BLACK,212 |
1 | ||
| 87940-30E90C2 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,STARLIGHT BLACK GF.,217 |
1 | ||
| 87940-30E90D0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,CRIMSON CS. GF.,3S8 |
1 | ||
| 87940-30E90E1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,FIRE AGATE M.M.,4V3 |
1 | ||
| 87940-30E90B0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,MERCURY GRAY MC.,1H9 |
1 | ||
| 87940-30E90J0 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,LAPIS LAZULI MC.,8V3 |
1 | ||
| 87940-30D81B2 |
AWL10,GRL10,11,GWL10..RHD OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL,SONIC TITANIUM,1J7 |
1 | ||
| 87940-30E90J1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,METEOR BLUE M.M.,8W3 |
1 | ||
| 87940-30E41B2 |
AWL10,GRL10,11,GWL10..RHD SONIC TITANIUM,1J7 |
1 | ||
| 87940-30E90B2 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,SONIC TITANIUM,1J7 |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-30D80C1 |
AWL10,GRL10,11,GWL10..RHD BLACK OPAL MC.,214 |
1 | ||
| 8794A-30D80C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,212 |
1 | ||
| 8794A-30D80B1 |
AWL10,GRL10,11,GWL10..RHD SONIC SILVER,1J2 |
1 | ||
| 8794A-30D80J1 |
AWL10,GRL10,11,GWL10..RHD METEOR BLUE M.M.,8W3 |
1 | ||
| 8794A-30D80B0 |
AWL10,GRL10,11,GWL10..RHD MERCURY GRAY MC.,1H9 |
1 | ||
| 8794A-30D80A0 |
AWL10,GRL10,11,GWL10..RHD WHITE PEARL CS.,077 |
1 | ||
| 8794A-30D80C2 |
AWL10,GRL10,11,GWL10..RHD STARLIGHT BLACK GF.,217 |
1 | ||
| 8794A-30D80J0 |
AWL10,GRL10,11,GWL10..RHD LAPIS LAZULI MC.,8V3 |
1 | ||
| 8794A-30D80E1 |
AWL10,GRL10,11,GWL10..RHD FIRE AGATE M.M.,4V3 |
1 | ||
| 8794A-30D80D0 |
AWL10,GRL10,11,GWL10..RHD CRIMSON CS. GF.,3S8 |
1 | ||
| 8794A-30D80B2 |
AWL10,GRL10,11,GWL10..RHD SONIC TITANIUM,1J7 |
1 | ||
| 8794A-30D80A1 |
AWL10,GRL10,11,GWL10..RHD OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL,WHITE NOVA GF.,083 |
1 | ||
| 8794A-30D80A1 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM,WHITE NOVA GF.,083 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-30E20 |
AWL10,GRL1#,GWL10..ARL,GEN |
1 | ||
| 87961-33B50 |
AWL10,GRL10,11,GWL10..ARL OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & *BSM |
1 | ||
| 87961-30D80 |
AWL10,GRL1#,GWL10..ARL,GEN OUTSIDE REAR VIEW MIRROR-*AREM(*WIH) & ANTI-GLARE & ASPHERICAL |
1 | ||
| Common parts | ||||
| 90179-06146 | ||||
| Linked diagrams | ||||
| 8106 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
