LEXUS GS SERIES
AWL10R-BEXQHQ (2013)
2501 - EXHAUST GAS RECIRCULATION SYSTEM

AWL10R-BEXQHQ (2013)

Toyota Lexus Gs Series

Production Sep 2013 - Oct 2015

Engine 2ARFSE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1309- )2ARFSE

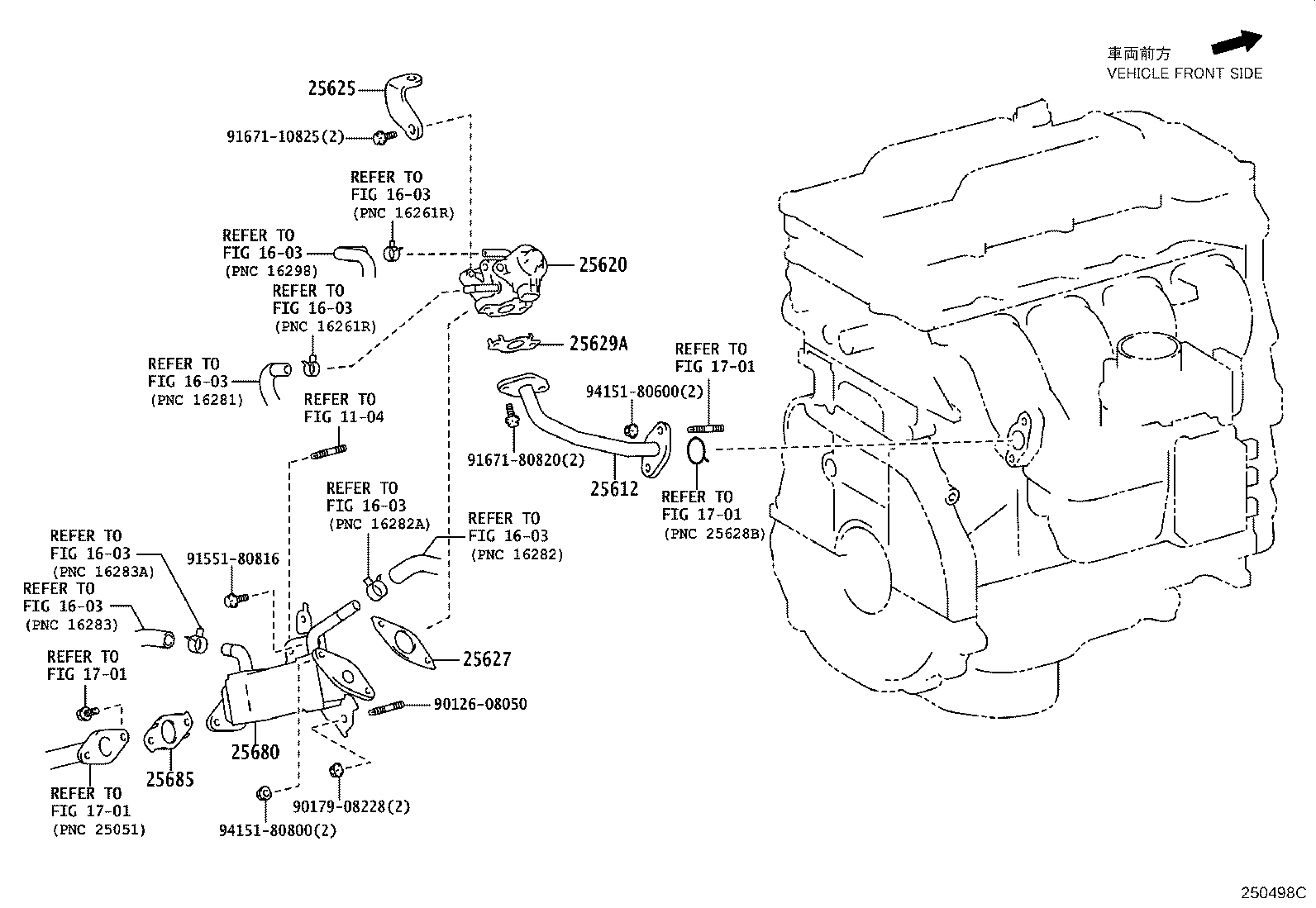

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
25612 - PIPE, EGR, NO.2
25612-36020	2ARFSE..AWL10	09/2013 - 10/2015	1
25620 - VALVE ASSY, EGR
25620-36040	2ARFSE..AWL10	09/2013 - 10/2015	1
25625 - BRACKET, EGR VALVE
25625-36010	2ARFSE..AWL10	09/2013 - 10/2015	1
25627 - GASKET, EGR VALVE
25627-36020	2ARFSE..AWL10	09/2013 - 10/2015	1
25629A - GASKET, EGR PIPE, NO.2
25629-36020	2ARFSE..AWL10	09/2013 - 10/2015	1
25680 - COOLER ASSY, EGR
25680-36030	2ARFSE..AWL10	09/2013 - 10/2015	1
25685 - GASKET, EGR COOLER, NO.1
25685-36010	2ARFSE..AWL10	09/2013 - 10/2015	1
Common parts
90126-08050
90179-08228
91551-80816
91671-10825
91671-80820
94151-80600
94151-80800
Linked diagrams
1104
1603
1701
