AWL10L-BEXQH (2013)

Toyota Lexus Gs Series

Production Sep 2013 - Oct 2015
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1309- )AWL10,GRL10,12..LHD

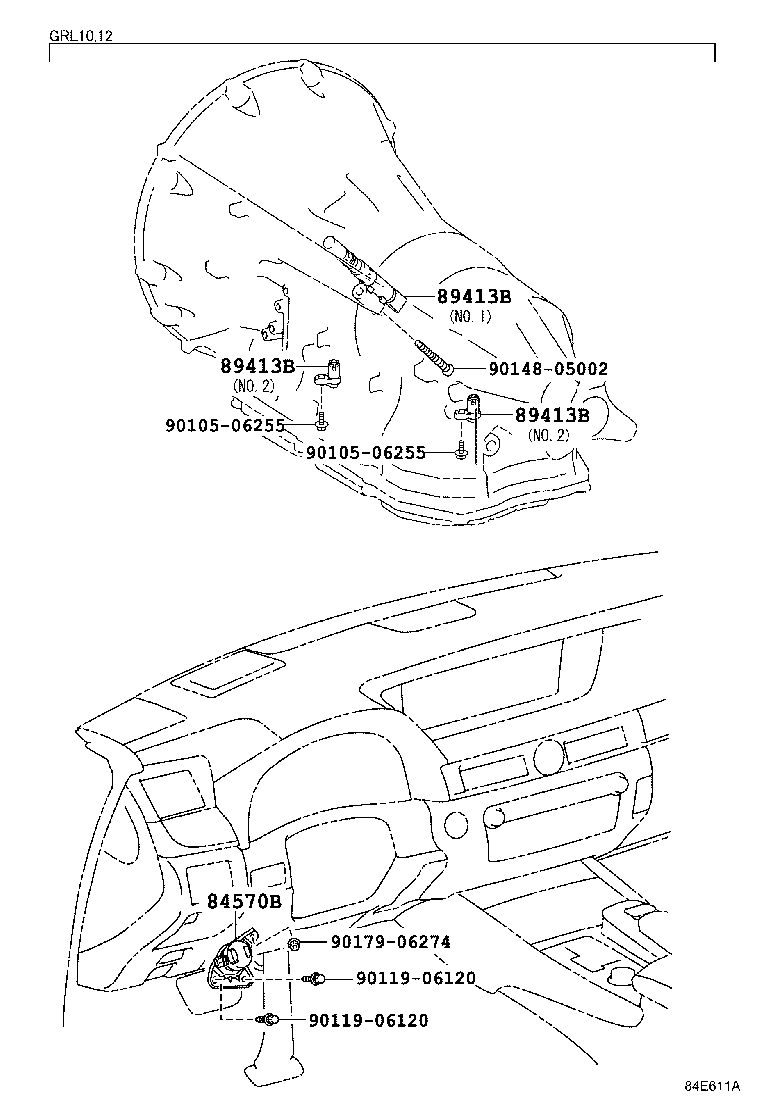

Click highlighted areas on diagram

AA81E

diagram 84570B 89413B 89413B 89413B 9010506255 9010506255 9011906120 9011906120 9014805002 9017906274
Part # Description Qty Price
84570B - SWITCH ASSY, KICK DOWN
84570-30100

AWL10,GRL10,11,GWL10..LHD

1
Common parts
90105-06255
90119-06120
90148-05002
90179-06274
