AWL10L-BEXQH (2013)

Toyota Lexus Gs Series

Production Sep 2013 - Oct 2015
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1309-1510)AWL10,GRL10 ; (1510- )ARL10,AWL10,GRL12

Click highlighted areas on diagram

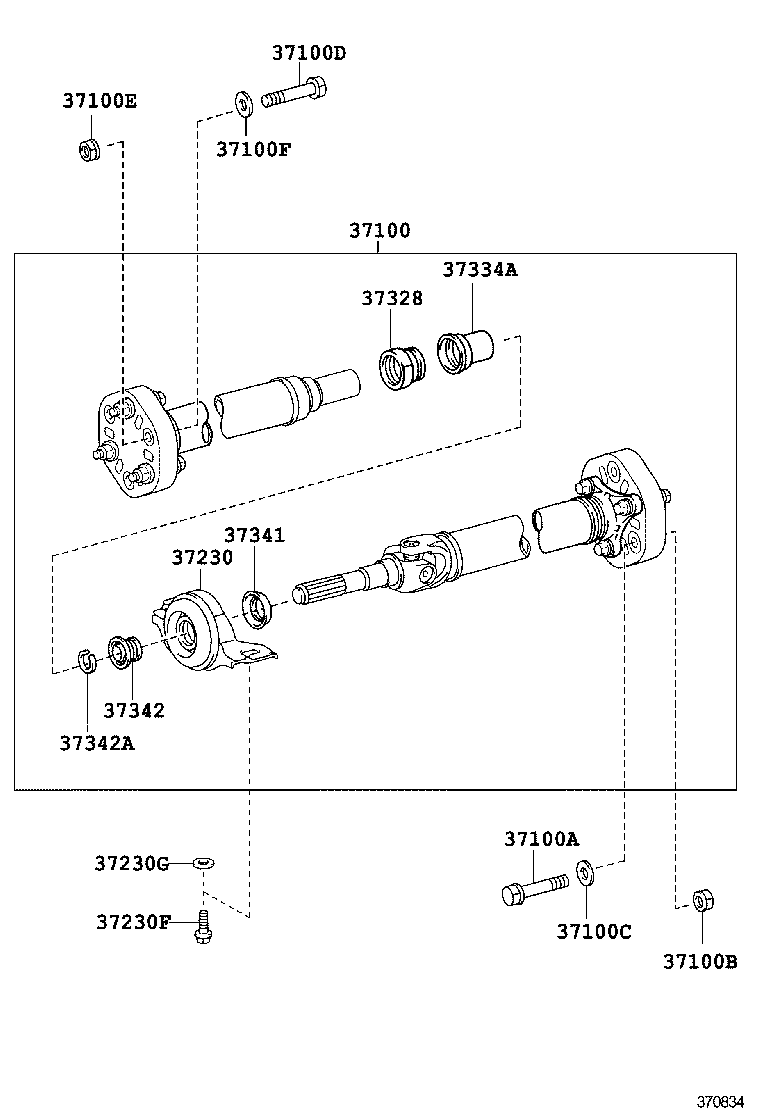

diagram 37100 37100A 37100B 37100C 37100D 37100E 37100F 37230 37230F 37230G 37328 37334A 37341 37342 37342A
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-30A60

AWL10

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-12265

GRL10..8FC;AWL10,GRL15,GWL10

 3
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-12128

GRL10..8FC;AWL10,GRL15,GWL10

 3
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90560-12059

GRL10..8FC;AWL10,GRL15,GWL10

 3
37100D - BOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-12265

GRL10..8FC;AWL10,GWL10

 3
37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-12128

GRL10..8FC;AWL10,GWL10

 3
37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90560-12059

GRL10..8FC;AWL10,GWL10

 3
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-30181

GRL10..8FC;AWL10,GWL10

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10902

GRL10..8FC;AWL10,GRL11,15

L=33

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10106

GRL10..8FC;AWL10,GRL11,15

T=2.0

 1
90201-10017

GRL10..8FC;AWL10,GRL11,15

T=9.0

 1
90201-10034

GRL10..8FC;AWL10,GRL11,15

T=11.0

 1
90201-10008

GRL10..8FC;AWL10,GRL11,15

T=4.5

 1
90201-10033

GRL10..8FC;AWL10,GRL11,15

T=6.5

 1
37328 - NUT, PROPELLER SHAFT ADJUSTING
37328-50010

AWL10,GRL10

 1
37334A - BOOT, SLIDING SHAFT
37334-50010

AWL10,GRL10

 1
37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37341-22010

GRL10..8FC;AWL10,GWL10

 1
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-50010

GRL10..8FC;AWL10,GWL10

 1
37342A - RING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2)
90520-28009

GRL10..8FC;AWL10,GWL10

 1
