ARL10R-BEZQTQ (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

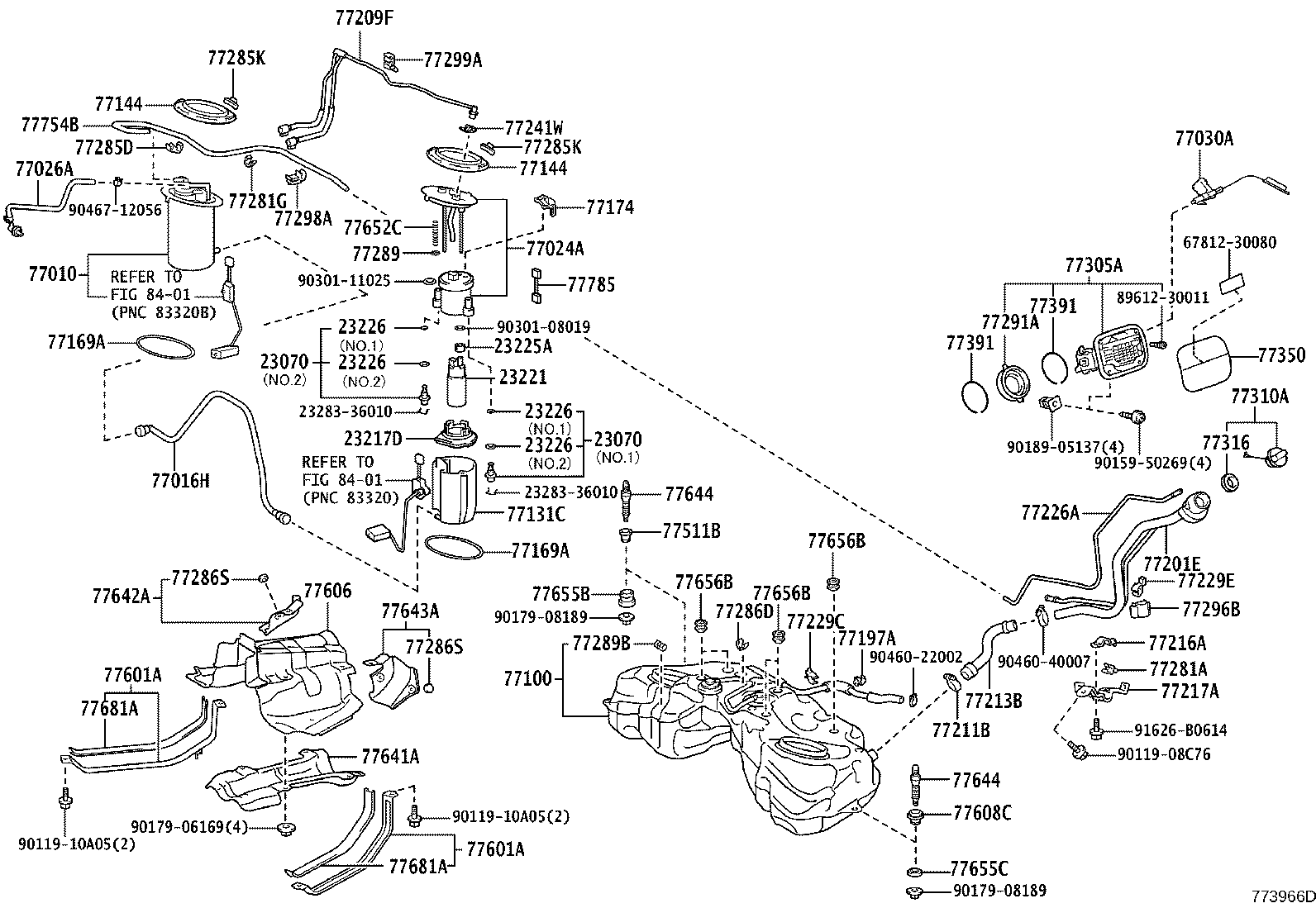

ILLUST NO. 1 OF 2(1510- )ARL10

Click highlighted areas on diagram

FUEL TANK

diagram 23070 23070 23217D 23221 23225A 23226 23226 23226 23226 2328336010 2328336010 6781230080 77010 77016H 77024A 77026A 77030A 77100 77131C 77144 77144 77169A 77169A 77174 77197A 77201E 77209F 77211B 77213B 77216A 77217A 77226A 77229C 77229E 77241W 77281A 77281G 77285D 77285K 77285K 77286D 77286S 77286S 77289 77289B 77291A 77296B 77298A 77299A 77305A 77310A 77316 77350 77391 77391 77511B 77601A 77601A 77606 77608C 77641A 77642A 77643A 77644 77644 77652C 77655B 77655C 77656B 77656B 77656B 77681A 77681A 77754B 77785 8401 8401 8961230011 9011908C76 9011910A05 9011910A05 9015950269 9017906169 9017908189 9017908189 9018905137 9030108019 9030111025 9046022002 9046040007 9046712056 91626B0614
Part # Description Qty Price
23070 - VALVE ASSY, FUEL MAIN
23070-31030

8ARFTS,2GRFKS..ARL10,GRL12

NO.1:REFER ILLUST.

 1
23070-36010

8ARFTS,2GRFKS..ARL10,GRL12

NO.2:REFER ILLUST.

 1
23070 - VALVE ASSY, FUEL MAIN
23070-31030

8ARFTS,2GRFKS..ARL10,GRL12

NO.1:REFER ILLUST.

 1
23070-36010

8ARFTS,2GRFKS..ARL10,GRL12

NO.2:REFER ILLUST.

 1
23217D - FILTER, FUEL PUMP
23217-31080

8ARFTS,2GRFKS..ARL10,GRL12

 1
23221 - PUMP, FUEL
23221-31130

8ARFTS,2GRFKS..ARL10,GRL12

 1
23225A - SPACER, FUEL PUMP
23225-31010

8ARFTS,2GRFKS..ARL10,GRL12

 1
23226 - RING, O(FOR FUEL PUMP)
90301-04013

8ARFTS,2GR#..ARL10,GRL12,GWL10

NO.1:REFER ILLUST.

 2
90301-15024

8ARFTS,2GR#..ARL10,GRL12,GWL10

NO.2:REFER ILLUST.

 2
23226 - RING, O(FOR FUEL PUMP)
90301-04013

8ARFTS,2GR#..ARL10,GRL12,GWL10

NO.1:REFER ILLUST.

 2
90301-15024

8ARFTS,2GR#..ARL10,GRL12,GWL10

NO.2:REFER ILLUST.

 2
23226 - RING, O(FOR FUEL PUMP)
90301-04013

8ARFTS,2GR#..ARL10,GRL12,GWL10

NO.1:REFER ILLUST.

 2
90301-15024

8ARFTS,2GR#..ARL10,GRL12,GWL10

NO.2:REFER ILLUST.

 2
23226 - RING, O(FOR FUEL PUMP)
90301-04013

8ARFTS,2GR#..ARL10,GRL12,GWL10

NO.1:REFER ILLUST.

 2
90301-15024

8ARFTS,2GR#..ARL10,GRL12,GWL10

NO.2:REFER ILLUST.

 2
77010 - TUBE ASSY, FUEL TANK VENT
77010-53010

ARL10

 1
77010-53011

ARL10

 1
77016H - TUBE SUB-ASSY, FUEL RETURN VENT
77016-30090

ARL10,AWL10,GRL12,GWL10

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-53100

ARL10,GRL12

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-53020

ARL10

 1
77030A - LOCK ASSY, FUEL LID W/MOTOR
77030-30150

ARL10,AWL10,GRL12,GWL10

 1
77100 - TANK ASSY, FUEL
77001-30630

ARL10,AWL10,GRL12,GWL10

 1
77001-30631

ARL10,AWL10,GRL12,GWL10

 1
77131C - SUB-TANK, FUEL, NO.1
77131-30063

ARL10,AWL10,GRL12,GWL10

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-30030

ARL10,AWL10,GRL12,GWL10

 2
77144 - RETAINER, FUEL PUMP GAUGE
77144-30030

ARL10,AWL10,GRL12,GWL10

 2
77169A - GASKET, FUEL SUCTION TUBE SET
77169-47030

ARL10,AWL10,GRL12,GWL10

 2
77169A - GASKET, FUEL SUCTION TUBE SET
77169-47030

ARL10,AWL10,GRL12,GWL10

 2
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-53020

ARL10,GRL12

 1
77197A - CLAMP, EVAPORATION VENT TUBE, NO.2
77197-42010

ARL10,AWL10,GRL12,GWL10

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-30520

ARL10,AWL10,GRL12,GWL10

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-53120

ARL10

 1
77211B - CLAMP (FOR FUEL FILLER PIPE)
90460-50008

ARL10,AWL10,GRL12,GWL10

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-30240

ARL10,AWL10,GRL12,GWL10

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-30090

ARL10,AWL10,GRL12,GWL10

 1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-30160

ARL10,AWL10,GRL12,GWL10

 1
77226A - TUBE, FUEL TANK BREATHER, NO.6
77226-30120

ARL10,AWL10,GRL12,GWL10

 1
77229C - CLAMP, BREATHER TUBE
77229-30100

ARL10,AWL10,GRL12,GWL10

 1
77229E - CLAMP, BREATHER TUBE
77229-30090

ARL10,AWL10,GRL12,GWL10

 1
77241W - CLIP, TUBE JOINT
77241-33011

ARL10,AWL10,GRL12

 1
77281A - CLAMP, FUEL FILLER PIPE
77281-30110

ARL10,AWL10,GRL12,GWL10

 1
77281G - CLAMP, FUEL HOSE
77281-47050

ARL10,AWL10,GRL12,GWL10

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-30300

ARL10,AWL10,GRL12,GWL10

 1
77285K - CLAMP, FUEL TUBE, NO.1
77285-30350

ARL10,AWL10,GRL12,GWL10

 2
77285K - CLAMP, FUEL TUBE, NO.1
77285-30350

ARL10,AWL10,GRL12,GWL10

 2
77286D - CLAMP, FUEL TUBE, NO.2
77286-30180

ARL10,AWL10,GRL12,GWL10

 1
77286S - CUSHION, FUEL TANK PROTECTOR
77286-12110

ARL10,AWL10,GRL12,GWL10

 4
77286S - CUSHION, FUEL TANK PROTECTOR
77286-12110

ARL10,AWL10,GRL12,GWL10

 4
77289 - HOLDER, FUEL TANK PIPE SETTING
77289-52090

ARL10,AWL10,GRL12,GWL10

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-30120

ARL10,GRL12,GWL10

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-30090

ARL10,AWL10,GRL12,GWL10

 1
77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1
77296-58010

ARL10,AWL10,GRL12,GWL10

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-30200

ARL10,AWL10,GRL12,GWL10

 1
77299A - CLAMP, FUEL TUBE, NO.5
77299-30090

ARL10,AWL10,GRL12,GWL10

 1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-30020

ARL10,AWL10,GRL12,GWL10

 1
77310A - CAP ASSY, FUEL TANK
77300-52030

ARL10,AWL10,GRL12,GWL10

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

ARL10,AWL10,GRL12,GWL10

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-30420

ARL10,AWL10,GRL12,GWL10

 1
77391 - RING, FUEL INLET BOX
77391-12020

ARL10,AWL10,GRL12,GWL10

 2
77391 - RING, FUEL INLET BOX
77391-12020

ARL10,AWL10,GRL12,GWL10

 2
77511B - BRACKET, FUEL TANK
77511-48030

ARL10,AWL10,GRL12,GWL10

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-30190

ARL10,AWL10,GRL12,GWL10

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-30190

ARL10,AWL10,GRL12,GWL10

 2
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-30210

ARL10,AWL10,GRL12,GWL10

 1
77608C - CUSHION SET, FUEL TANK
77608-48010

ARL10,AWL10,GRL12,GWL10

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-30160

ARL10,AWL10,GRL12,GWL10

 1
77642A - PROTECTOR, FUEL TANK, NO.2
77642-30040

ARL10,AWL10,GRL12,GWL10

 1
77643A - PROTECTOR, FUEL TANK, NO.3
77643-30030

ARL10,AWL10,GRL12,GWL10

 1
77644 - BOLT, FUEL TANK
77644-48010

ARL10,AWL10,GRL12,GWL10

 2
77644 - BOLT, FUEL TANK
77644-48010

ARL10,AWL10,GRL12,GWL10

 2
77652C - SPRING, FUEL PUMP
77652-30090

ARL10,AWL10,GRL12,GWL10

 1
77655B - CUSHION, FUEL TANK
77655-30080

ARL10,AWL10,GRL12,GWL10

 1
77655C - CUSHION, FUEL TANK
77655-48010

ARL10,AWL10,GRL12,GWL10

 1
77656B - CUSHION, FUEL TANK, NO.6
77656-30030

ARL10,AWL10,GRL12,GWL10

 5
77656B - CUSHION, FUEL TANK, NO.6
77656-30030

ARL10,AWL10,GRL12,GWL10

 5
77656B - CUSHION, FUEL TANK, NO.6
77656-30030

ARL10,AWL10,GRL12,GWL10

 5
77681A - SEAT, FUEL TANK BAND
77681-30030

ARL10,AWL10,GRL12,GWL10

 2
77681A - SEAT, FUEL TANK BAND
77681-30030

ARL10,AWL10,GRL12,GWL10

 2
77754B - HOSE, CHARCOAL CANISTER OUTLET
77754-30040

ARL10,AWL10,GRL12,GWL10

 1
77785 - HARNESS, FUEL PUMP
77785-48060

ARL10,GRL12

 1
Common parts
23283-36010
67812-30080
89612-30011
90119-08C76
90119-10A05
90159-50269
90179-06169
90179-08189
90189-05137
90301-08019
90301-11025
90460-22002
90460-40007
90467-12056
91626-B0614
Linked diagrams
8401

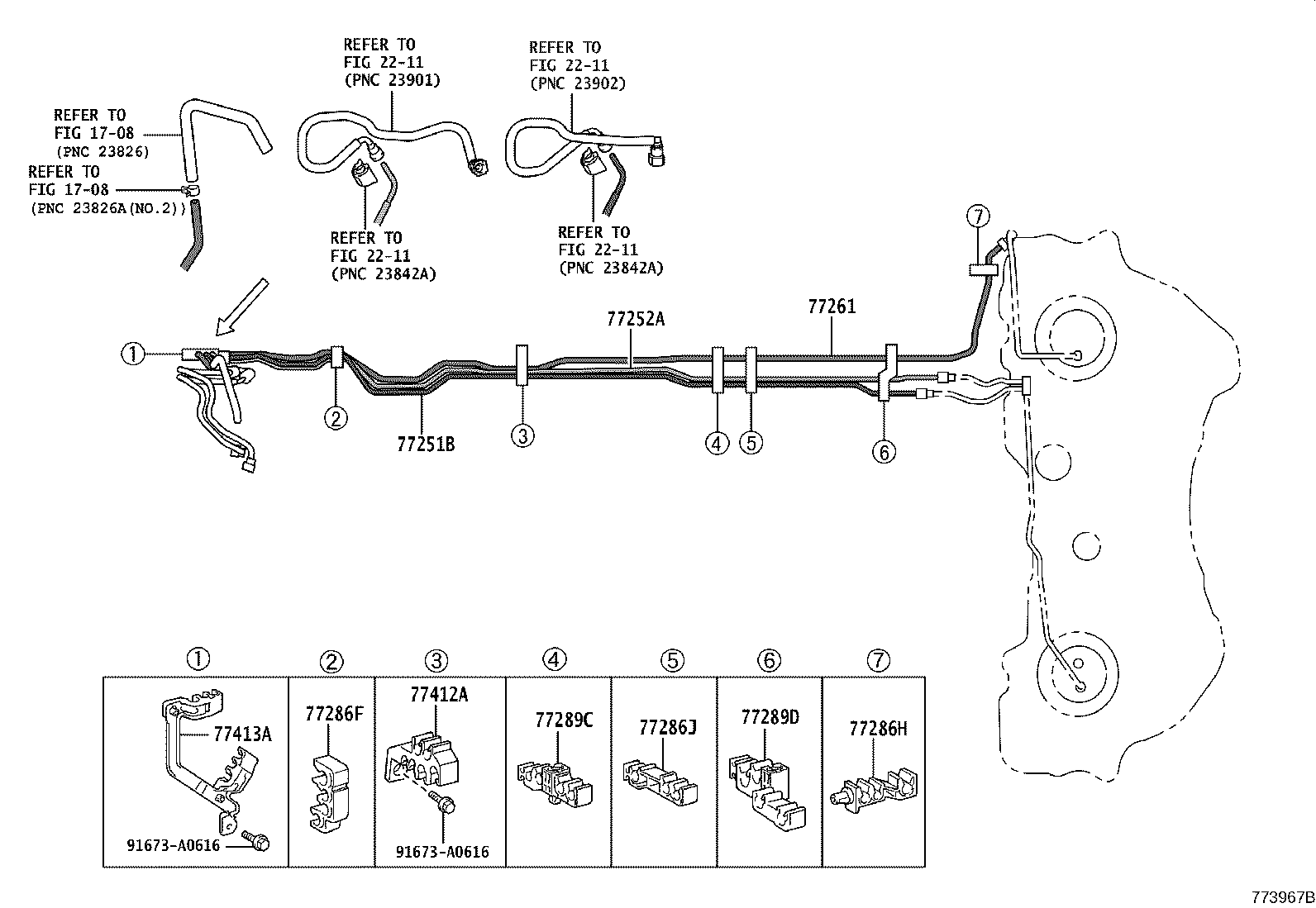

ILLUST NO. 2 OF 2(1510- )ARL10

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 2211 2211 2211 2211 77251B 77252A 77261 77286F 77286H 77286J 77289C 77289D 77412A 77413A 91673A0616 91673A0616
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-30650

ARL10

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-30580

ARL10

 1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-30560

ARL10

 1
77286F - CLAMP, FUEL TUBE, NO.2
77286-30220

ARL10,GWL10

 1
77286H - CLAMP, FUEL TUBE, NO.3
77286-53051

ARL10

 1
77286J - CLAMP, FUEL TUBE, NO.4
77286-30290

ARL10

 1
77289C - CLAMP, FUEL TUBE, NO.4
77289-30130

ARL10,GRL12,GWL10

 1
77289D - CLAMP, FUEL TUBE, NO.5
77289-30140

ARL10,GRL12,GWL10

 1
77412A - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-30110

ARL10

 1
77413A - SUPPORT, FUEL TUBE GROMMET, NO.3
77413-53070

ARL10

 1
Common parts
91673-A0616
Linked diagrams
1708
2211
