ARL10R-BEZQTQ (2015)
Toyota Lexus Gs Series

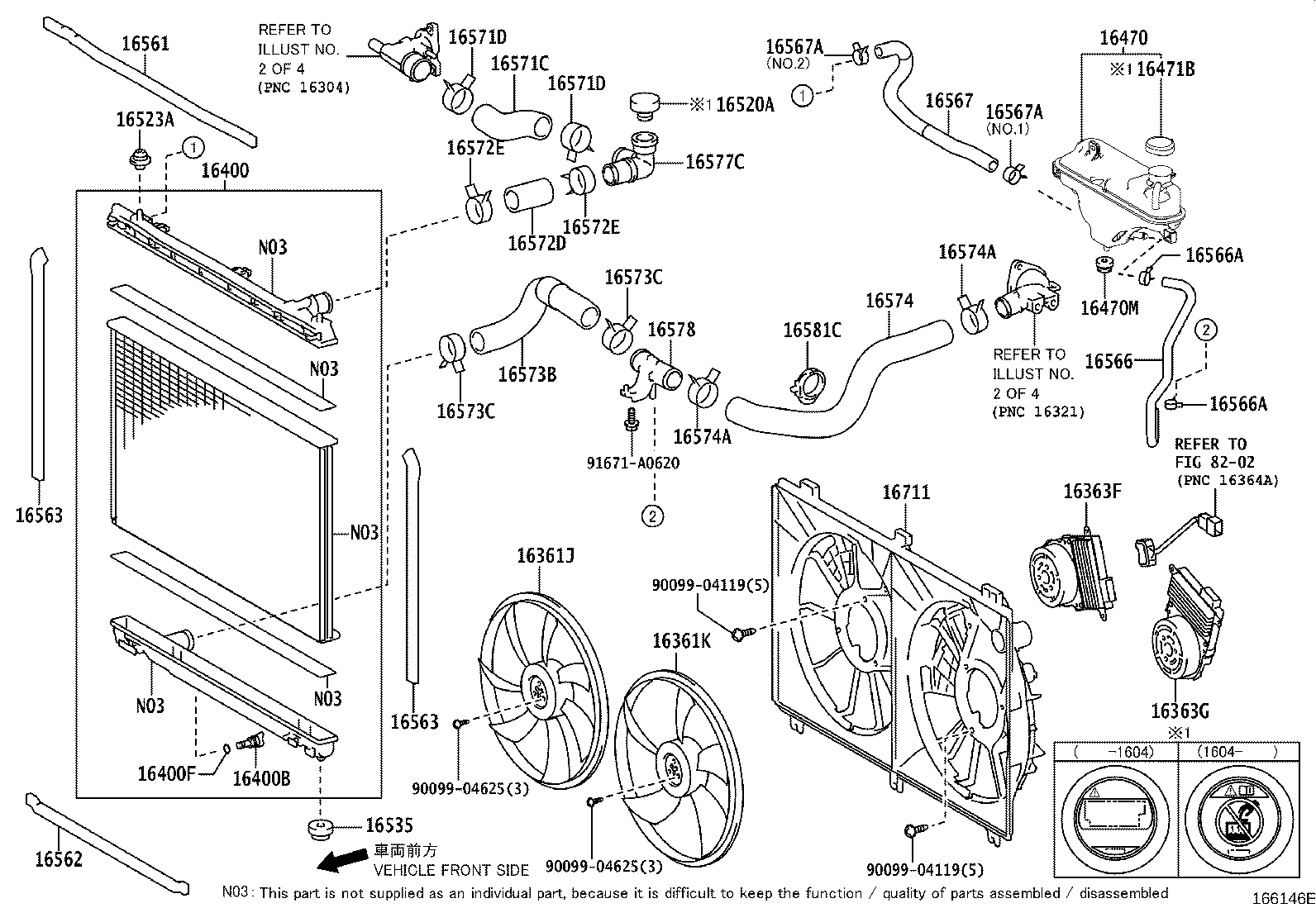

ILLUST NO. 1 OF 4(1510- )8ARFTS
FAN MOTOR=W/O(CONTROLLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361J - FAN, RH | ||||
| 16361-38120 |
8ARFTS..ARL10..ARL NEW ZEALAND SPEC&TOWING PACKAGE-1600KG |
1 | ||
| 16361-36250 |
8ARFTS..ARL10..ARL TOWING PACKAGE-1600KG |
1 | ||
| 16361-38120 |
8ARFTS..ARL10..ARL,GEN |
1 | ||
| 16361K - FAN, LH | ||||
| 16361-38110 |
8ARFTS..ARL10..ARL NEW ZEALAND SPEC&TOWING PACKAGE-1600KG |
1 | ||
| 16361-36240 |
8ARFTS..ARL10..ARL TOWING PACKAGE-1600KG |
1 | ||
| 16361-38110 |
8ARFTS..ARL10..ARL,GEN |
1 | ||
| 16363F - MOTOR, COOLING FAN, RH | ||||
| 16363-38160 |
8ARFTS..ARL10..ARL NEW ZEALAND SPEC&TOWING PACKAGE-1600KG |
1 | ||
| 16363-38160 |
8ARFTS..ARL10..ARL,GEN |
1 | ||
| 16363-36240 |
8ARFTS..ARL10..ARL TOWING PACKAGE-1600KG |
1 | ||
| 16363G - MOTOR, COOLING FAN, LH | ||||
| 16363-38160 |
8ARFTS..ARL10..ARL NEW ZEALAND SPEC&TOWING PACKAGE-1600KG |
1 | ||
| 16363-38160 |
8ARFTS..ARL10..ARL,GEN |
1 | ||
| 16363-36240 |
8ARFTS..ARL10..ARL TOWING PACKAGE-1600KG |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-36150 |
8ARFTS..ARL10 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
8ARFTS..ARL10;2ARFSE..AWL10..GEN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-36032 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16470-36031 |
8ARFTS..ARL10 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-28140 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16475-37011 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16501-36013 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16501-36012 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-38010 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40022 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 90480-40021 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31110 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-31060 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-31050 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-31050 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16566 - HOSE, RESERVE TANK OUTLET | ||||
| 16566-36010 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16566-36011 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 96137-41701 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 96137-41701 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-36030 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-21004 |
2ARFSE,8ARFTS..ARL10,AWL10 NO.1:REFER ILLUST. |
1 | ||
| 96136-42701 |
2ARFSE,8ARFTS..ARL10,AWL10 NO.2:REFER ILLUST. |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-21004 |
2ARFSE,8ARFTS..ARL10,AWL10 NO.1:REFER ILLUST. |
1 | ||
| 96136-42701 |
2ARFSE,8ARFTS..ARL10,AWL10 NO.2:REFER ILLUST. |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-36260 |
8ARFTS..ARL10 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-36220 |
8ARFTS..ARL10 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-36020 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-36040 |
8ARFTS..ARL10 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-36020 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-36010 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-31040 |
8ARFTS..ARL10 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-38160 |
8ARFTS..ARL10..ARL NEW ZEALAND SPEC&TOWING PACKAGE-1600KG |
1 | ||
| 16711-36270 |
8ARFTS..ARL10..ARL TOWING PACKAGE-1600KG |
1 | ||
| 16711-38160 |
8ARFTS..ARL10..ARL,GEN |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91671-A0620 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 4(1510- )8ARFTS
FAN MOTOR=W(CONTROLLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361J - FAN, RH | ||||
| 16361-38120 |
8ARFTS..ARL10..ARL NEW ZEALAND SPEC&TOWING PACKAGE-1600KG |
1 | ||
| 16361-36250 |
8ARFTS..ARL10..ARL TOWING PACKAGE-1600KG |
1 | ||
| 16361-38120 |
8ARFTS..ARL10..ARL,GEN |
1 | ||
| 16361K - FAN, LH | ||||
| 16361-38110 |
8ARFTS..ARL10..ARL NEW ZEALAND SPEC&TOWING PACKAGE-1600KG |
1 | ||
| 16361-36240 |
8ARFTS..ARL10..ARL TOWING PACKAGE-1600KG |
1 | ||
| 16361-38110 |
8ARFTS..ARL10..ARL,GEN |
1 | ||
| 16363F - MOTOR, COOLING FAN, RH | ||||
| 16363-38160 |
8ARFTS..ARL10..ARL NEW ZEALAND SPEC&TOWING PACKAGE-1600KG |
1 | ||
| 16363-38160 |
8ARFTS..ARL10..ARL,GEN |
1 | ||
| 16363-36240 |
8ARFTS..ARL10..ARL TOWING PACKAGE-1600KG |
1 | ||
| 16363G - MOTOR, COOLING FAN, LH | ||||
| 16363-38160 |
8ARFTS..ARL10..ARL NEW ZEALAND SPEC&TOWING PACKAGE-1600KG |
1 | ||
| 16363-38160 |
8ARFTS..ARL10..ARL,GEN |
1 | ||
| 16363-36240 |
8ARFTS..ARL10..ARL TOWING PACKAGE-1600KG |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-36150 |
8ARFTS..ARL10 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
8ARFTS..ARL10;2ARFSE..AWL10..GEN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-36032 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16470-36031 |
8ARFTS..ARL10 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-28140 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16475-37011 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16501-36013 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16501-36012 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-38010 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40022 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 90480-40021 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31110 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-31060 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-31050 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-31050 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16566 - HOSE, RESERVE TANK OUTLET | ||||
| 16566-36010 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16566-36011 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 96137-41701 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 96137-41701 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-36030 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-21004 |
2ARFSE,8ARFTS..ARL10,AWL10 NO.1:REFER ILLUST. |
1 | ||
| 96136-42701 |
2ARFSE,8ARFTS..ARL10,AWL10 NO.2:REFER ILLUST. |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-21004 |
2ARFSE,8ARFTS..ARL10,AWL10 NO.1:REFER ILLUST. |
1 | ||
| 96136-42701 |
2ARFSE,8ARFTS..ARL10,AWL10 NO.2:REFER ILLUST. |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-36260 |
8ARFTS..ARL10 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-36220 |
8ARFTS..ARL10 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-36020 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-36040 |
8ARFTS..ARL10 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-39002 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-36020 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-36010 |
2ARFSE,8ARFTS..ARL10,AWL10 |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-31040 |
8ARFTS..ARL10 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-38160 |
8ARFTS..ARL10..ARL NEW ZEALAND SPEC&TOWING PACKAGE-1600KG |
1 | ||
| 16711-36270 |
8ARFTS..ARL10..ARL TOWING PACKAGE-1600KG |
1 | ||
| 16711-38160 |
8ARFTS..ARL10..ARL,GEN |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04625 | ||||
| 91671-A0620 | ||||
| Linked diagrams | ||||
| 8202 | ||||

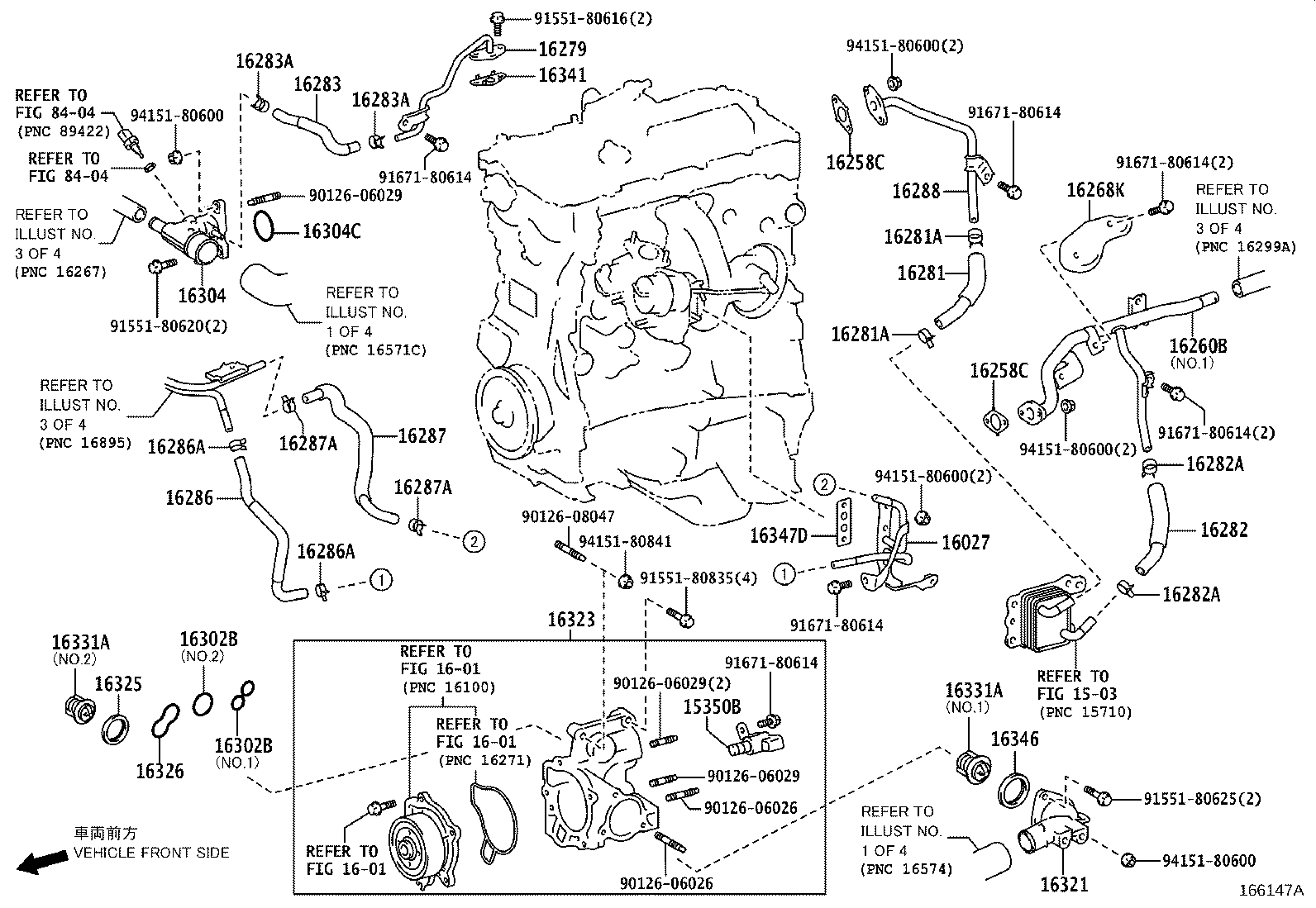

ILLUST NO. 2 OF 4(1510- )8ARFTS
ENGINE PIPING 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15350B - VALVE ASSY, OIL PRESSURE SWITCHING | ||||
| 15350-33012 |
8ARFTS..ARL10 |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-36030 |
8ARFTS..ARL10 |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-36040 |
8ARFTS..ARL10 |
2 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-36040 |
8ARFTS..ARL10 |
2 | ||
| 16260B - PIPE ASSY, WATER BY-PASS | ||||
| 1628A-36020 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 16268-36250 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16268K - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-36030 |
8ARFTS..ARL10 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-36011 |
8ARFTS..ARL10 |
1 | ||
| 16279-36010 |
8ARFTS..ARL10 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-36120 |
8ARFTS..ARL10 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
8ARFTS..ARL10 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
8ARFTS..ARL10 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-36140 |
8ARFTS..ARL10 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
2ARFSE,8ARFTS..ARL10,AWL10 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-36090 |
8ARFTS..ARL10 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
8ARFTS..ARL10 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
8ARFTS..ARL10 |
2 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-36010 |
8ARFTS..ARL10 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 96137-41701 |
8ARFTS..ARL10 |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 96137-41701 |
8ARFTS..ARL10 |
2 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-36010 |
8ARFTS..ARL10 |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 96137-41701 |
8ARFTS..ARL10 |
2 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 96137-41701 |
8ARFTS..ARL10 |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-36050 |
8ARFTS..ARL10 |
1 | ||
| 16302B - GASKET(FOR WATER INLET HOUSING) | ||||
| 16258-36060 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 16258-36050 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16302B - GASKET(FOR WATER INLET HOUSING) | ||||
| 16258-36060 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 16258-36050 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-36020 |
8ARFTS..ARL10 |
1 | ||
| 16304C - RING, O(FOR WATER OUTLET) | ||||
| 96762-35040 |
8ARFTS..ARL10 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-36030 |
8ARFTS..ARL10 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-36060 |
8ARFTS..ARL10 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-36051 |
8ARFTS..ARL10 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-36030 |
8ARFTS..ARL10 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03154 |
8ARFTS..ARL10 *WAX 78-91,NO.2:REFER ILLUST. |
1 | ||
| 90916-03156 |
8ARFTS..ARL10 *WAX 82-95,NO.1:REFER ILLUST. |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03154 |
8ARFTS..ARL10 *WAX 78-91,NO.2:REFER ILLUST. |
1 | ||
| 90916-03156 |
8ARFTS..ARL10 *WAX 82-95,NO.1:REFER ILLUST. |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-36020 |
8ARFTS..ARL10 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-36011 |
8ARFTS..ARL10 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-36020 |
8ARFTS..ARL10 |
1 | ||
| Common parts | ||||
| 90126-06026 | ||||
| 90126-06029 | ||||
| 90126-08047 | ||||
| 91551-80616 | ||||
| 91551-80620 | ||||
| 91551-80625 | ||||
| 91551-80835 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 94151-80841 | ||||
| Linked diagrams | ||||
| 1503 | ||||
| 1601 | ||||
| 8404 | ||||

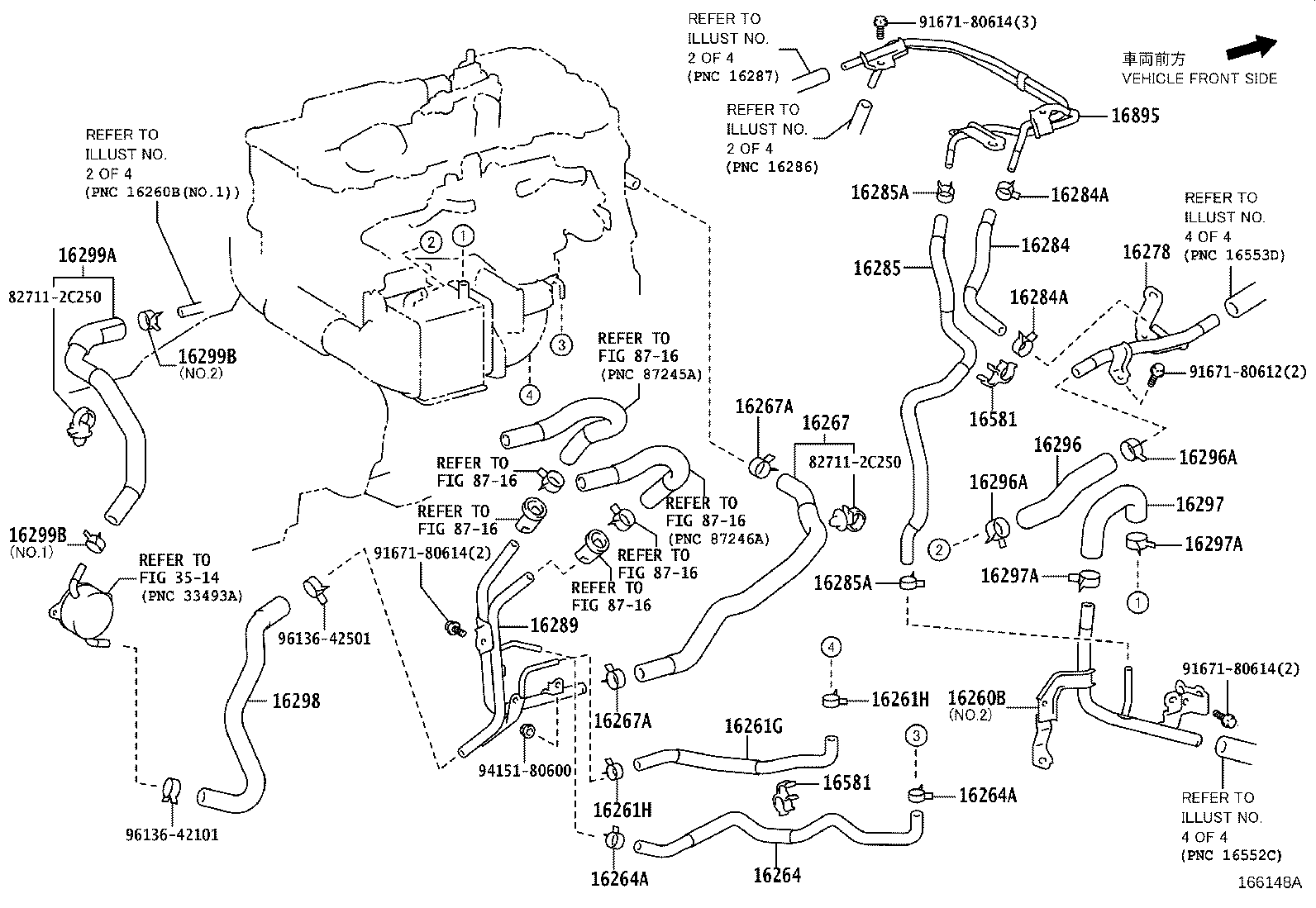

ILLUST NO. 3 OF 4(1510- )8ARFTS
ENGINE PIPING 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16260B - PIPE ASSY, WATER BY-PASS | ||||
| 1628A-36020 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 16268-36250 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-36170 |
8ARFTS..ARL10 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-41501 |
8ARFTS..ARL10 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-41501 |
8ARFTS..ARL10 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-36140 |
8ARFTS..ARL10 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
8ARFTS..ARL10 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
8ARFTS..ARL10 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-36120 |
8ARFTS..ARL10 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
8ARFTS..ARL10 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
8ARFTS..ARL10 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-36040 |
8ARFTS..ARL10 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-36030 |
8ARFTS..ARL10 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41701 |
8ARFTS..ARL10 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41701 |
8ARFTS..ARL10 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-36030 |
8ARFTS..ARL10 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 96137-41701 |
8ARFTS..ARL10 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 96137-41701 |
8ARFTS..ARL10 |
2 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-36020 |
8ARFTS..ARL10 |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-36060 |
8ARFTS..ARL10 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42501 |
8ARFTS..ARL10 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42501 |
8ARFTS..ARL10 |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-36050 |
8ARFTS..ARL10 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42501 |
8ARFTS..ARL10 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42501 |
8ARFTS..ARL10 |
2 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16298-36020 |
8ARFTS..ARL10 |
1 | ||
| 16298-36020 |
8ARFTS..ARL10..RHD TOWING PACKAGE-1600KG |
1 | ||
| 16299A - HOSE, WATER BY-PASS, NO.13 | ||||
| 16299-36020 |
8ARFTS..ARL10 |
1 | ||
| 16299-36020 |
8ARFTS..ARL10..RHD TOWING PACKAGE-1600KG |
1 | ||
| 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) | ||||
| 96136-42501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
8ARFTS..ARL10..RHD TOWING PACKAGE-1600KG,NO.1:REFER ILLUST. |
1 | ||
| 96136-42101 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) | ||||
| 96136-42501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
8ARFTS..ARL10..RHD TOWING PACKAGE-1600KG,NO.1:REFER ILLUST. |
1 | ||
| 96136-42101 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-33080 |
8ARFTS..ARL10 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-33080 |
8ARFTS..ARL10 |
2 | ||
| 16895 - PIPE, TURBO WATER, NO.1 | ||||
| 16895-36010 |
8ARFTS..ARL10 |
1 | ||
| Common parts | ||||
| 82711-2C250 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 96136-42101 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 3514 | ||||
| 8716 | ||||

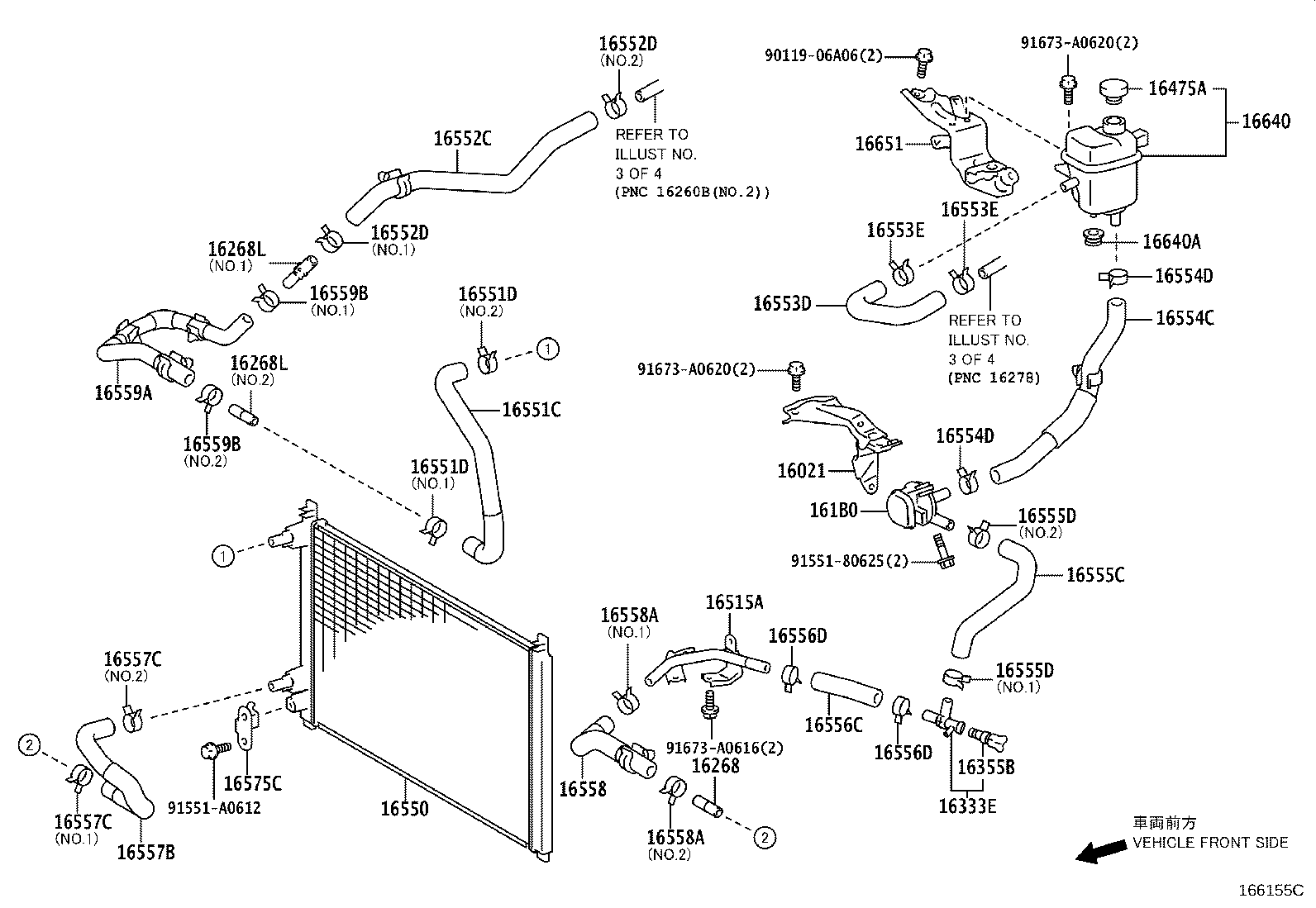

ILLUST NO. 4 OF 4(1510- )8ARFTS
INTERCOOLER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16021 - BRACKET SUB-ASSY, WATER PUMP | ||||
| 16021-36030 |
8ARFTS..ARL10 |
1 | ||
| 161B0 - PUMP ASSY, ELECTRIC WATER | ||||
| 161B0-36010 |
8ARFTS..ARL10 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-47040 |
8ARFTS..ARL10 |
1 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16268-47040 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 16268-36240 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16268-47040 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 16268-36240 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16333E - PLUG, DRAIN COCK | ||||
| 90910-09134 |
8ARFTS..ARL10 |
1 | ||
| 16355B - COCK SUB-ASSY, WATER DRAIN(FOR WATER BY-PASS JOINT) | ||||
| 16407-64010 |
8ARFTS..ARL10 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-37011 |
8ARFTS..ARL10 |
1 | ||
| 16475-28140 |
8ARFTS..ARL10 |
1 | ||
| 16515A - PIPE, INTERCOOLER COOLING WATER, NO.1 | ||||
| 16515-36030 |
8ARFTS..ARL10 |
1 | ||
| 16550 - RADIATOR ASSY, INTERCOOLER COOLING | ||||
| 16550-36040 |
8ARFTS..ARL10 |
1 | ||
| 16551C - HOSE, INTERCOOLER COOLING WATER, NO.1 | ||||
| 16551-36040 |
8ARFTS..ARL10 |
1 | ||
| 16551D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1) | ||||
| 96136-52501 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 96138-52501 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 96136-52701 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 16551D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1) | ||||
| 96136-52501 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 96138-52501 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 96136-52701 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 16552C - HOSE, INTERCOOLER COOLING WATER, NO.2 | ||||
| 16552-36030 |
8ARFTS..ARL10 |
1 | ||
| 16552D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2) | ||||
| 96136-42501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 90466-21004 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16552D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2) | ||||
| 96136-42501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 90466-21004 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16553D - HOSE, INTERCOOLER COOLING WATER, NO.3 | ||||
| 16553-36030 |
8ARFTS..ARL10 |
1 | ||
| 16553E - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3) | ||||
| 96138-42501 |
8ARFTS..ARL10 |
2 | ||
| 96136-42501 |
8ARFTS..ARL10 |
2 | ||
| 16553E - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3) | ||||
| 96138-42501 |
8ARFTS..ARL10 |
2 | ||
| 96136-42501 |
8ARFTS..ARL10 |
2 | ||
| 16554C - HOSE, INTERCOOLER COOLING WATER, NO.4 | ||||
| 16554-36030 |
8ARFTS..ARL10 |
1 | ||
| 16554D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4) | ||||
| 96138-42501 |
8ARFTS..ARL10 |
2 | ||
| 96136-42501 |
8ARFTS..ARL10 |
2 | ||
| 16554D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4) | ||||
| 96138-42501 |
8ARFTS..ARL10 |
2 | ||
| 96136-42501 |
8ARFTS..ARL10 |
2 | ||
| 16555C - HOSE, INTERCOOLER COOLING WATER, NO.5 | ||||
| 16555-36020 |
8ARFTS..ARL10 |
1 | ||
| 16555D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5) | ||||
| 96136-42501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 90466-21004 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 96138-42501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 16555D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5) | ||||
| 96136-42501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 90466-21004 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 96138-42501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 16556C - HOSE, INTERCOOLER COOLING WATER, NO.6 | ||||
| 16556-36020 |
8ARFTS..ARL10 |
1 | ||
| 16556D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6) | ||||
| 90466-21004 |
8ARFTS..ARL10 |
2 | ||
| 16556D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6) | ||||
| 90466-21004 |
8ARFTS..ARL10 |
2 | ||
| 16557B - HOSE, INTERCOOLER COOLING WATER, NO.7 | ||||
| 16557-36020 |
8ARFTS..ARL10 |
1 | ||
| 16557C - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.7) | ||||
| 96136-52701 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 96136-52501 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 96138-52501 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16557C - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.7) | ||||
| 96136-52701 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 96136-52501 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 96138-52501 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16558 - HOSE, INTERCOOLER COOLING WATER, NO.8 | ||||
| 16558-36020 |
8ARFTS..ARL10 |
1 | ||
| 16558A - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.8) | ||||
| 96136-52501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 90466-21004 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16558A - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.8) | ||||
| 96136-52501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 90466-21004 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 16559A - HOSE, INTERCOOLER COOLING WATER, NO.9 | ||||
| 16559-36020 |
8ARFTS..ARL10 |
1 | ||
| 16559B - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.9) | ||||
| 96136-42101 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 96136-52501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 16559B - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.9) | ||||
| 96136-42101 |
8ARFTS..ARL10 NO.1:REFER ILLUST. |
1 | ||
| 96136-52501 |
8ARFTS..ARL10 NO.2:REFER ILLUST. |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-36050 |
8ARFTS..ARL10 |
1 | ||
| 16640 - TANK ASSY, INTERCOOLER RESERVE | ||||
| 16640-36031 |
8ARFTS..ARL10 |
1 | ||
| 16640-36030 |
8ARFTS..ARL10 |
1 | ||
| 16640A - GROMMET(FOR INTERCOOLER RESERVE TANK) | ||||
| 90480-16044 |
8ARFTS..ARL10 |
1 | ||
| 16651 - BRACKET, INTERCOOLER RESERVE TANK | ||||
| 16651-36020 |
8ARFTS..ARL10 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91551-80625 | ||||
| 91551-A0612 | ||||
| 91673-A0616 | ||||
| 91673-A0620 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
