ARL10L-BEZQT (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1510- )8ARFTS

Click highlighted areas on diagram

AIR CLEANER SIDE

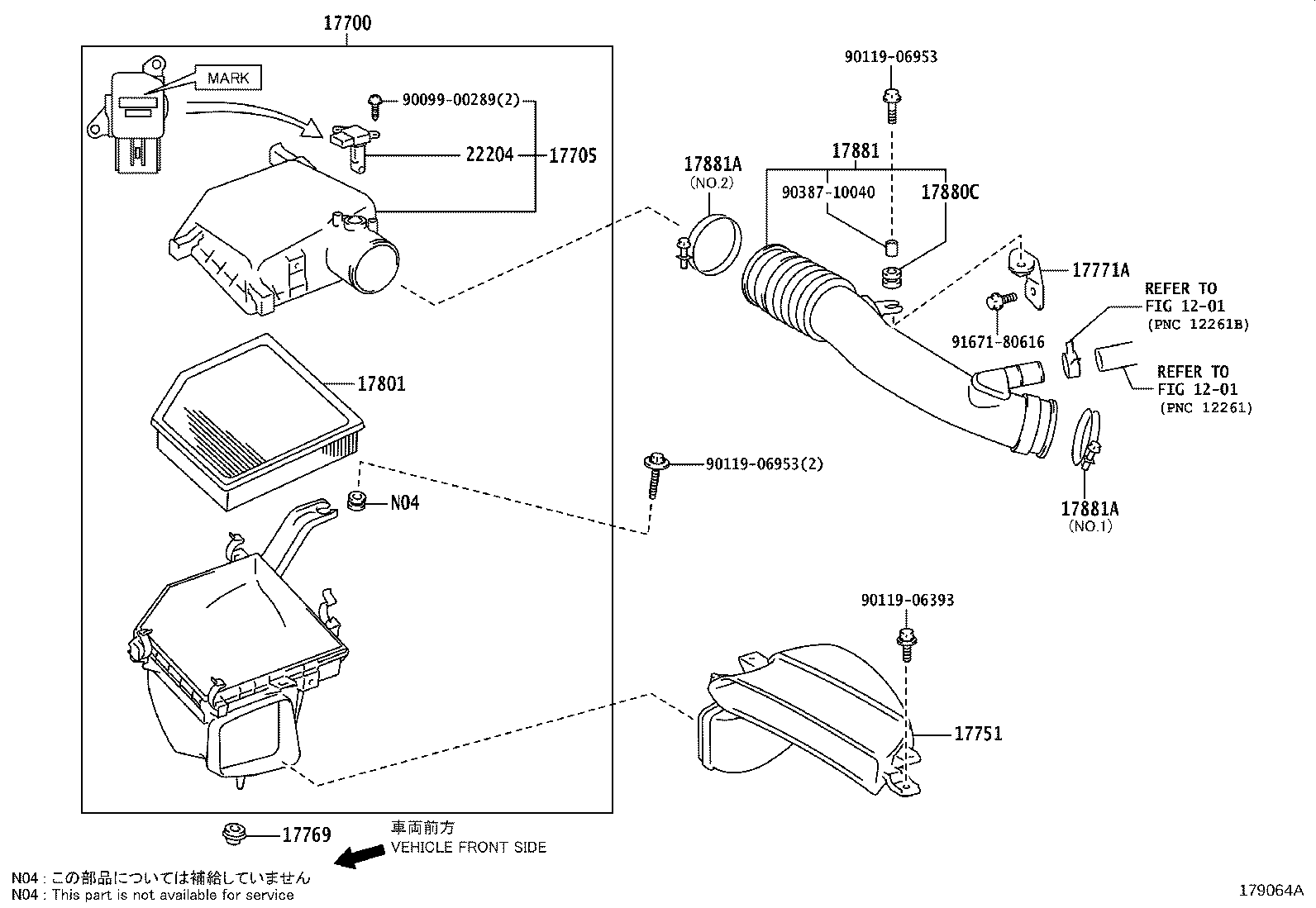

diagram 1201 1201 17700 17705 17751 17769 17771A 17801 17880C 17881 17881A 17881A 22204 9009900289 9011906393 9011906953 9011906953 9038710040 9167180616
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-36410

8ARFTS..ARL10

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-36180

8ARFTS..ARL10

 1
17751 - INLET, AIR CLEANER, NO.1
17751-31350

8ARFTS..ARL10

 1
17769 - SUPPORT, AIR CLEANER
17769-31030

2ARFSE,8ARFTS..ARL10,AWL10

 1
17771A - BRACKET, AIR CLEANER
17771-36090

8ARFTS..ARL10

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31170

2ARFSE,8ARFTS..ARL10,AWL10

 1
17880C - GROMMET(FOR AIR CLEANER HOSE)
90480-16041

8ARFTS..ARL10

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-36170

8ARFTS..ARL10

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

8ARFTS..ARL10

NO.1:REFER ILLUST.

 1
96111-10850

8ARFTS..ARL10

NO.2:REFER ILLUST.

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

8ARFTS..ARL10

NO.1:REFER ILLUST.

 1
96111-10850

8ARFTS..ARL10

NO.2:REFER ILLUST.

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0T040

2ARFSE,8ARFTS..ARL10,AWL10

MARK 22204-0T040

 1
22204-0V020

2ARFSE,8ARFTS..ARL10,AWL10

MARK 22204-0V020

 1
22204-0V010

2ARFSE,8ARFTS..ARL10,AWL10

MARK 22204-0V010

 1
22204-28010

2ARFSE,8ARFTS..ARL10,AWL10

MARK 22204-28010

 1
Common parts
90099-00289
90119-06393
90119-06953
90387-10040
91671-80616
Linked diagrams
1201

ILLUST NO. 2 OF 2(1510- )8ARFTS

Click highlighted areas on diagram

INTERCOOLER SIDE

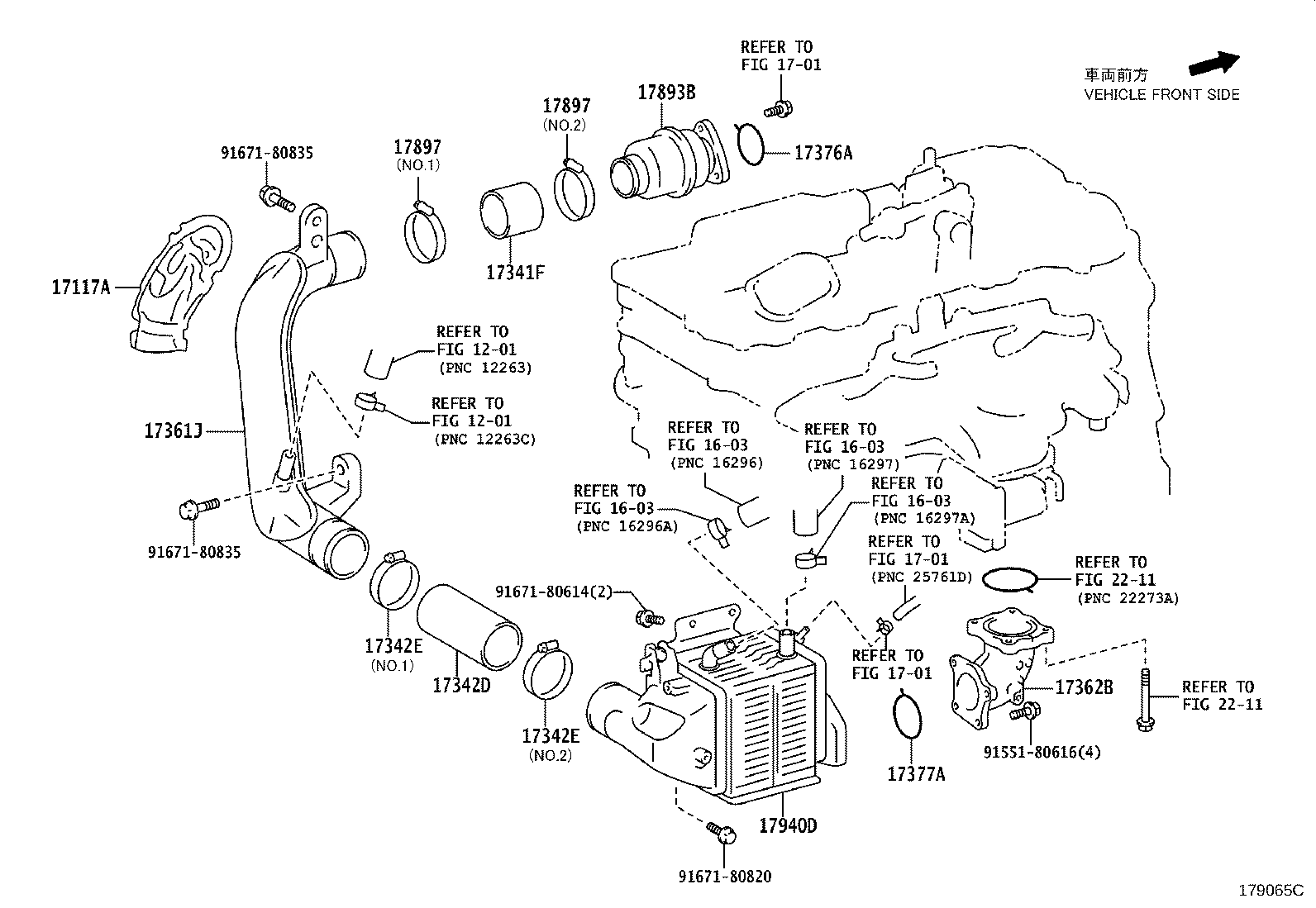

diagram 1201 1201 1603 1603 1603 1603 1701 1701 1701 17117A 17341F 17342D 17342E 17342E 17361J 17362B 17376A 17377A 17893B 17897 17897 17940D 2211 2211 9155180616 9167180614 9167180820 9167180835 9167180835
Part # Description Qty Price
17117A - INSULATOR, INTAKE PIPE
17117-36010

8ARFTS..ARL10

 1
17341F - HOSE, AIR, NO.1
17341-36030

8ARFTS..ARL10

 1
17342D - HOSE, AIR, NO.2
17342-36020

8ARFTS..ARL10

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-77002

8ARFTS..ARL10

NO.1:REFER ILLUST.

 1
90460-77009

8ARFTS..ARL10

NO.2:REFER ILLUST.

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-77002

8ARFTS..ARL10

NO.1:REFER ILLUST.

 1
90460-77009

8ARFTS..ARL10

NO.2:REFER ILLUST.

 1
17361J - TUBE, AIR, NO.1
17361-36020

8ARFTS..ARL10

 1
17362B - TUBE, AIR, NO.2
17362-36010

8ARFTS..ARL10

 1
17376A - GASKET, AIR TUBE
17376-36010

8ARFTS..ARL10

 1
17377A - GASKET, AIR TUBE, NO.2
17377-36010

8ARFTS..ARL10

 1
17893B - RESONATOR, INTAKE AIR, NO.2
17893-36210

8ARFTS..ARL10

 1
17893-36120

8ARFTS..ARL10

 1
17897 - CLAMP, HOSE(FOR AIR CLEANER)
90460-70003

8ARFTS..ARL10

NO.1:REFER ILLUST.

 1
90460-70011

8ARFTS..ARL10

NO.2:REFER ILLUST.

 1
17897 - CLAMP, HOSE(FOR AIR CLEANER)
90460-70003

8ARFTS..ARL10

NO.1:REFER ILLUST.

 1
90460-70011

8ARFTS..ARL10

NO.2:REFER ILLUST.

 1
17940D - INTERCOOLER ASSY
17900-36020

8ARFTS..ARL10

 1
Common parts
91551-80616
91671-80614
91671-80820
91671-80835
Linked diagrams
1201
1603
1701
2211
