URL10L-FEZRHV (2015)
Toyota Lexus Gs F
Production
Oct 2015
-
Jul 2020
Engine
2URGSE
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1510- )

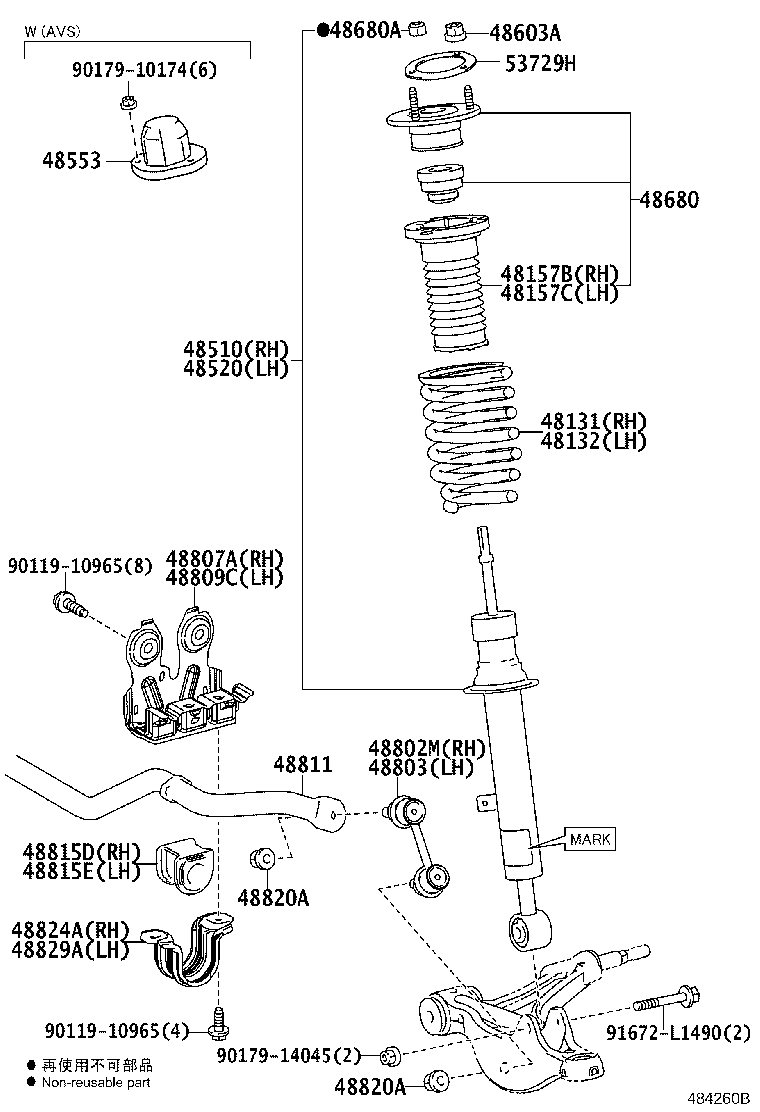

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-30E80 |
URL10 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-30E80 |
URL10 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-30250 |
URL10 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-30250 |
URL10 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80845 |
URL10 MARK 48510-24440 |
1 | ||
| 48510-80798 |
URL10 MARK 48510-30C80 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80517 |
URL10 MARK 48520-24170 |
1 | ||
| 48520-80474 |
URL10 MARK 48520-30690 |
1 | ||
| 48553 - CAP, SHOCK ABSORBER, UPPER | ||||
| 48553-30110 |
URL10 |
2 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10014 |
URL10 |
6 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-24080 |
URL10 |
2 | ||
| 48680-24140 |
URL10 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90177-12002 |
URL10 |
2 | ||
| 48802M - LINK SUB-ASSY, FRONT STABILIZER, RH | ||||
| 48802-48010 |
URL10 |
1 | ||
| 48803 - LINK SUB-ASSY, FRONT STABILIZER, LH | ||||
| 48803-48010 |
URL10 |
1 | ||
| 48807A - BRACKET, FRONT STABILIZER, RH | ||||
| 48809-30130 |
URL10 |
1 | ||
| 48809C - BRACKET, FRONT STABILIZER, LH | ||||
| 48809-30130 |
URL10 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-30830 |
URL10 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-30710 |
URL10 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-30710 |
URL10 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
URL10 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
URL10 |
4 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-24040 |
URL10 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-24040 |
URL10 |
1 | ||
| 53729H - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3 | ||||
| 53729-53020 |
URL10 |
2 | ||
| Common parts | ||||
| 90119-10965 | ||||
| 90179-10174 | ||||
| 90179-14045 | ||||
| 91672-L1490 | ||||
