JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9303-9708)

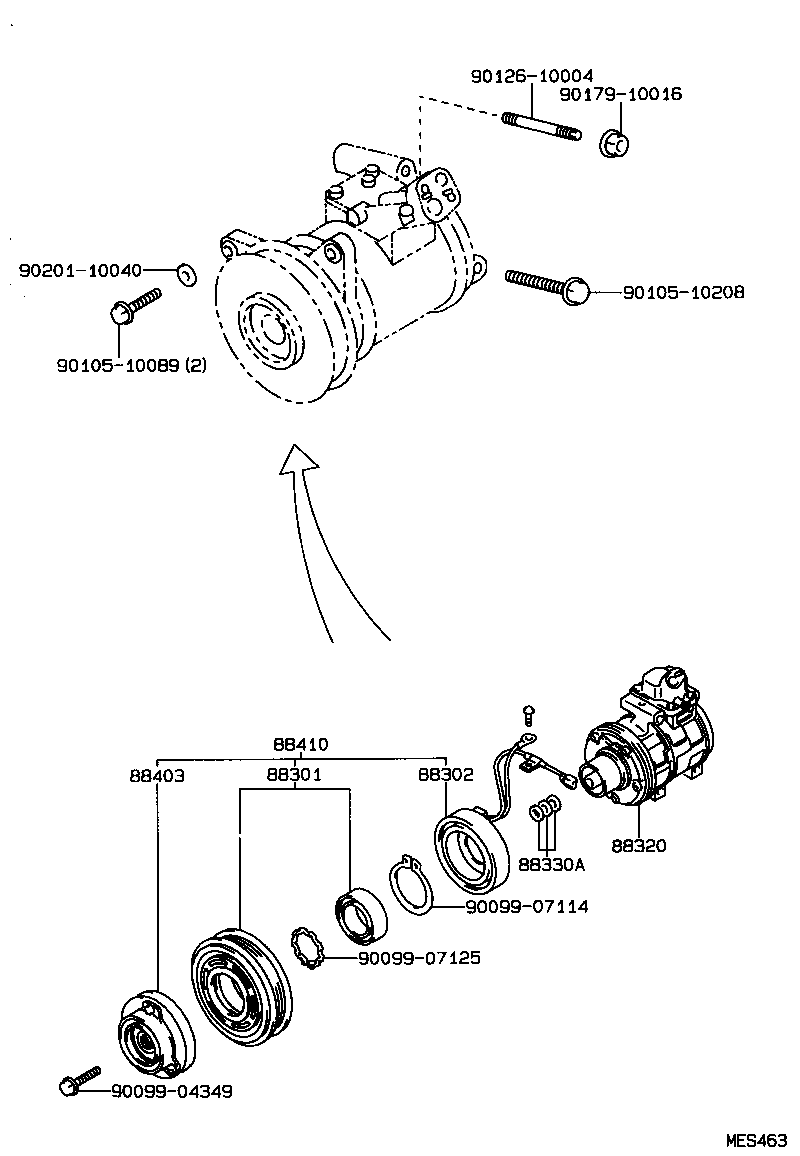

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-30410 |
JZS147 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-3A010 |
JZS147 |
1 | ||
| 88411-3A010 |
JZS147..EUR |
1 | ||
| 88411-30540 |
JZS147 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30651 |
JZS147..EUR |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
JZS147 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-28010 |
JZS147..EUR |
1 | ||
| 88403-3A020 |
JZS147..EUR |
1 | ||
| 88403-30290 |
JZS147 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-30710 |
JZS147 |
1 | ||
| 88410-3A100 |
JZS147..EUR |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90105-10089 | ||||
| 90105-10208 | ||||
| 90126-10004 | ||||
| 90179-10016 | ||||
| 90201-10040 | ||||
(9303-9708)

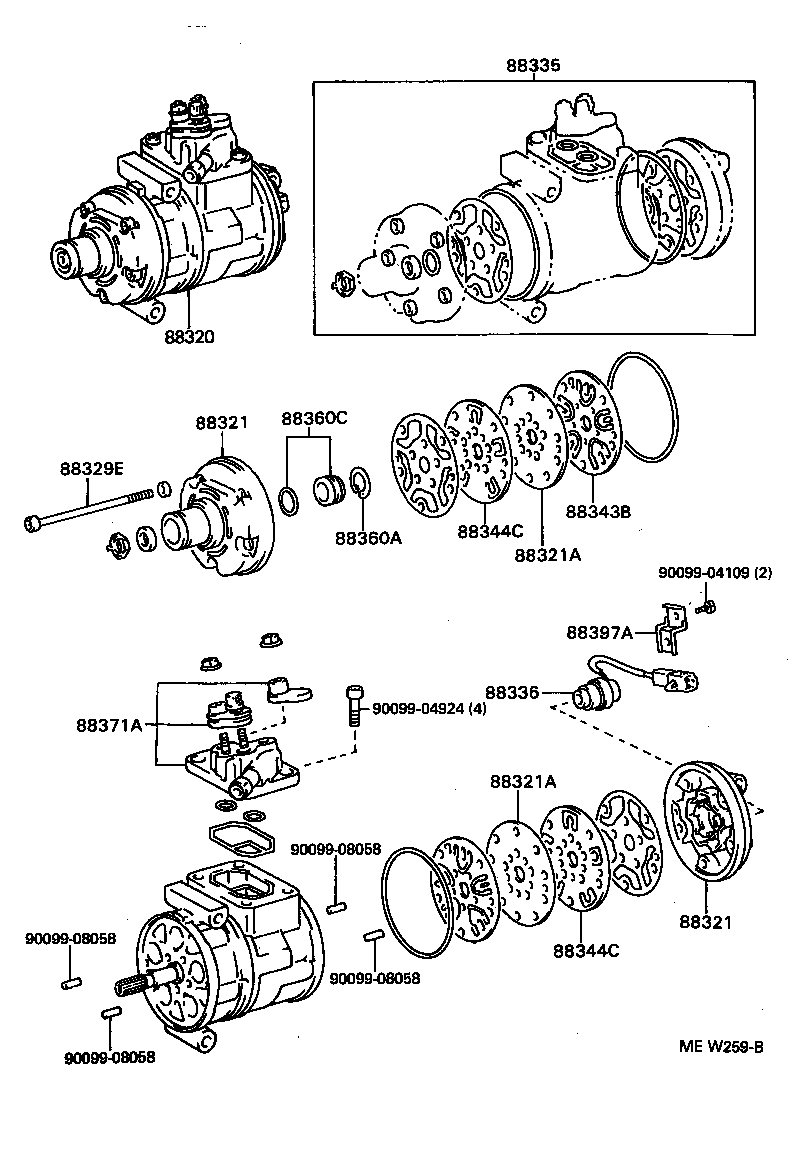

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30651 |
JZS147..EUR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-30320 |
JZS147 FRONT |
1 | ||
| 88322-30340 |
JZS147 REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-30320 |
JZS147 FRONT |
1 | ||
| 88322-30340 |
JZS147 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-30040 |
JZS147 FRONT |
1 | ||
| 88342-30270 |
JZS147 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-30040 |
JZS147 FRONT |
1 | ||
| 88342-30270 |
JZS147 REAR |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 88329-30010 |
JZS147 |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-30340 |
JZS147 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-30060 |
JZS147..EUR |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-30280 |
JZS147 |
1 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-30010 |
JZS147 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-30010 |
JZS147 |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
JZS147 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B010 |
JZS147 |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-30560 |
JZS147..EUR |
1 | ||
| 88397A - CLIP, COMPRESSOR | ||||
| 88688-30110 |
JZS147 |
1 | ||
| Common parts | ||||
| 90099-04109 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
