JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9708)RHD

Click highlighted areas on diagram

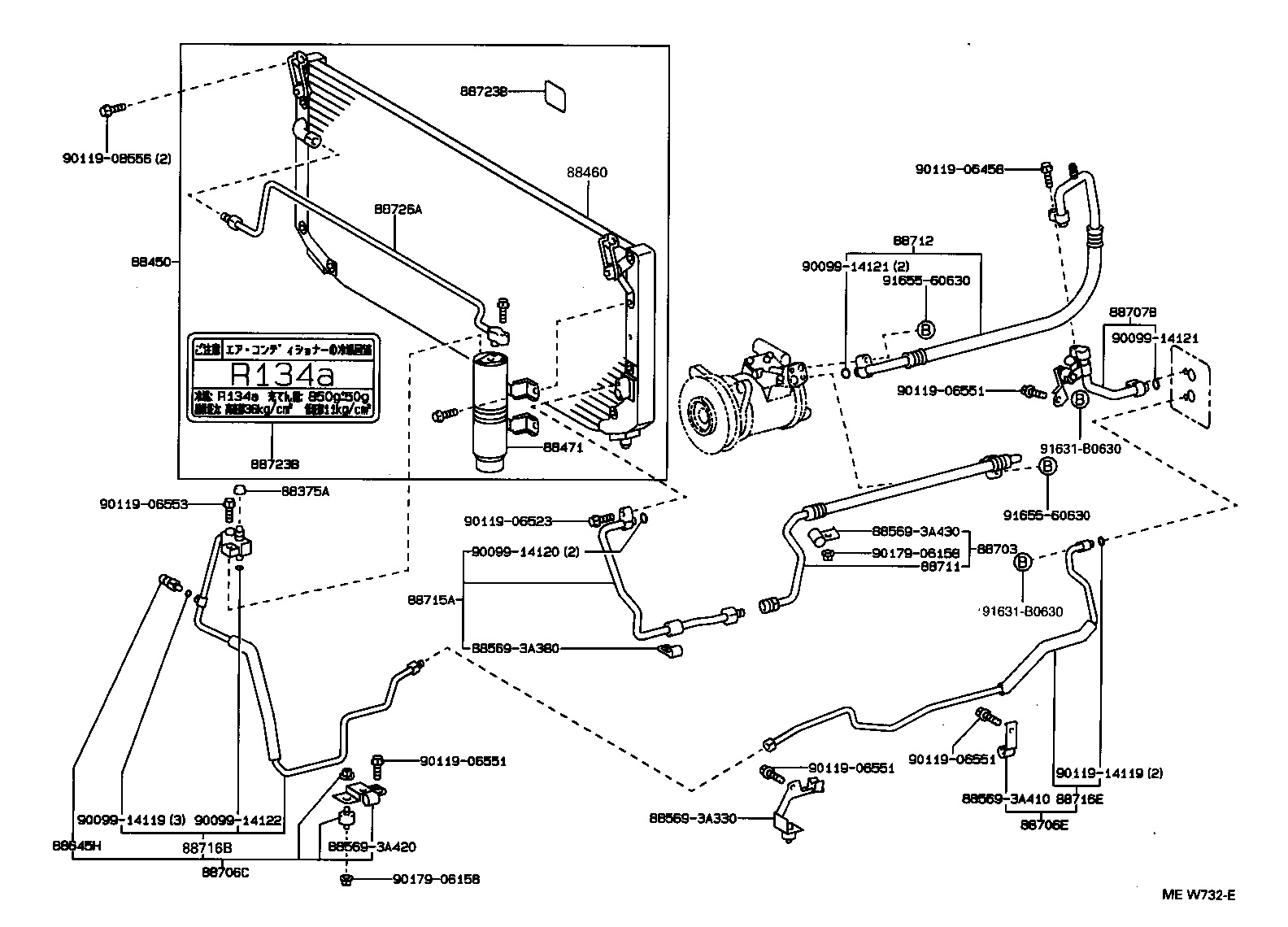

diagram 88375A 88450 88460 88471 885693A330 885693A380 885693A410 885693A420 885693A430 88645H 88703 88706C 88706E 88707B 88711 88712 88715A 88716B 88716E 88723B 88723B 88726A 9009914119 9009914120 9009914121 9009914121 9009914122 9011906458 9011906523 9011906551 9011906551 9011906551 9011906551 9011906553 9011908556 9011914119 9017906158 9017906158 91631B0630 91631B0630 9165560630 9165560630
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

JZS147..RHD

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-30250

JZS147..RHD

 1
88460 - CONDENSER ASSY, COOLER
88460-30760

JZS147..RHD

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30370

JZS147

 1
88645H - SWITCH, PRESSURE NO.1
88645-30340

JZS147..RHD

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-30420

JZS147

 1
88706C - TUBE SUB-ASSY, LIQUID, C
88706-30490

JZS147..RHD

 1
88706E - TUBE SUB-ASSY, LIQUID, E
88706-30510

JZS147..RHD

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-30370

JZS147..RHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-30790

JZS147..RHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3A520

JZS147..RHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-30450

JZS147

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3A460

JZS147..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-3A410

JZS147..RHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

JZS147

 1
88723-50150

JZS147

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

JZS147

 1
88723-50150

JZS147

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A510

JZS147..RHD

 1
Common parts
88569-3A330
88569-3A380
88569-3A410
88569-3A420
88569-3A430
90099-14119
90099-14120
90099-14121
90099-14122
90119-06458
90119-06523
90119-06551
90119-06553
90119-08556
90119-14119
90179-06158
91631-B0630
91655-60630
