JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9303-9708)

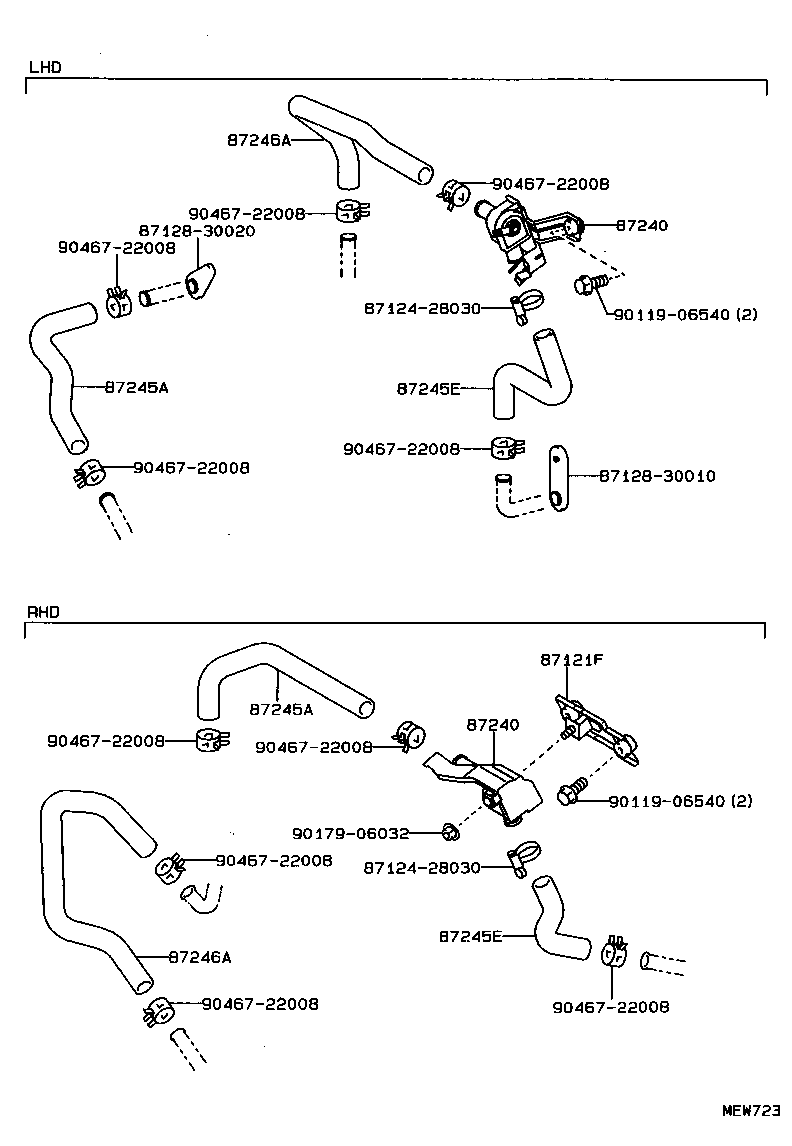

Click highlighted areas on diagram

diagram 87121F 8712428030 8712428030 8712830010 8712830020 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9011906540 9011906540 9017906032 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008
Part # Description Qty Price
87121F - BRACKET, HEATER
87121-30060

JZS147..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-30620

JZS147..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-30620

JZS147..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A880

JZS147..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A880

JZS147..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A890

JZS147..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A890

JZS147..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3A500

JZS147..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3A500

JZS147..RHD

 1
Common parts
87124-28030
87128-30010
87128-30020
90119-06540
90179-06032
90467-22008
