JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

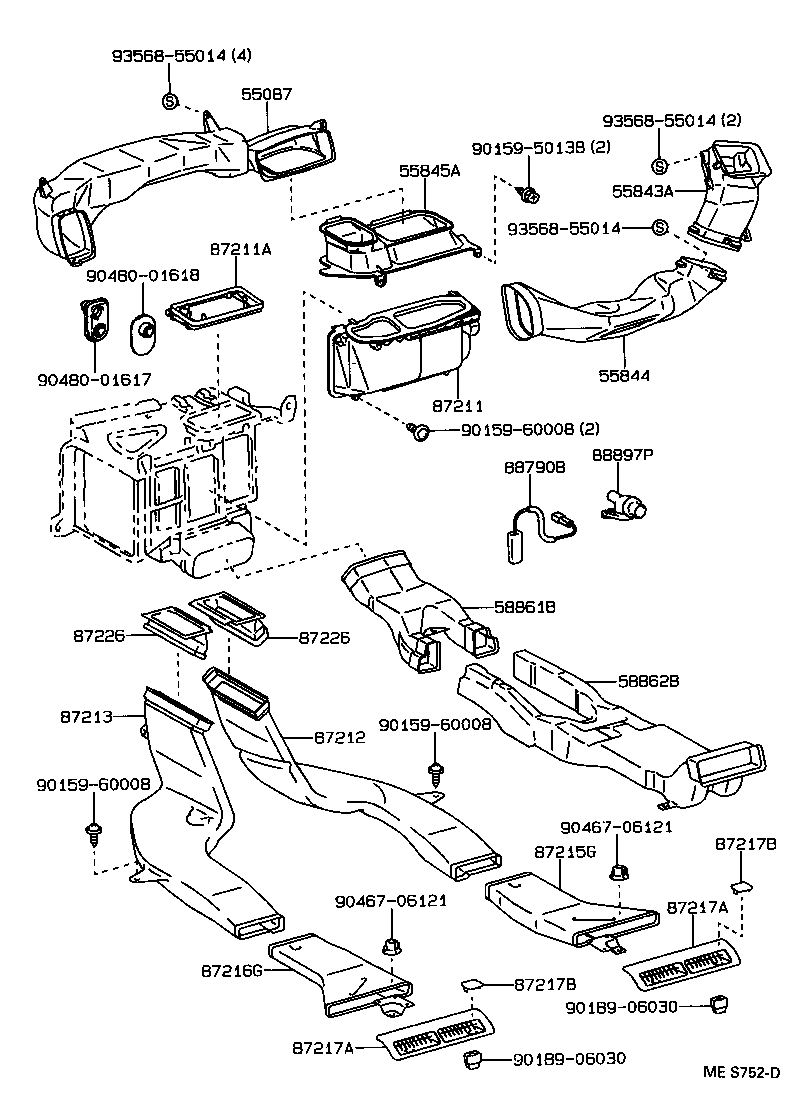

ILLUST NO. 1 OF 3(9308-9708)RHD

Click highlighted areas on diagram

FRONT DUCT

diagram 55087 55843A 55844 55845A 58861B 58862B 87211 87211A 87212 87213 87215G 87216G 87217A 87217A 87217B 87217B 87226 87226 88790B 88897P 9015950138 9015960008 9015960008 9015960008 9018906030 9018906030 9046706121 9046706121 9048001617 9048001618 9356855014 9356855014 9356855014
Part # Description Qty Price
55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4
55085-30130

JZS147..RHD

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-30150

JZS147..RHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-30140

JZS147..RHD

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-30170

JZS147..RHD

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-30051

JZS147..RHD

 1
58862B - DUCT, CONSOLE BOX, NO.2
58086-30011

JZS147..RHD

 1
87211 - DUCT, AIR, NO.1
87201-30570

JZS147..RHD

 1
87211A - DUCT, AIR, NO.2
87201-30550

JZS147..RHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-30350

JZS147

 1
87213 - DUCT, AIR, REAR NO.2
87213-30270

JZS147

 1
87215G - GUIDE, AIR DUCT, REAR RH
87215-30260

JZS147

 1
87216G - GUIDE, AIR DUCT, REAR LH
87216-30240

JZS147

 1
87217A - DUCT, AIR, REAR NO.6
87217-50030G0

JZS147

LI.SPRUCE,TRIM6#

 2
87217-50030A0

JZS147

IVORY,TRIM0#

 2
87217-50030B0

JZS147

GRAY,TRIM1#

 2
87217A - DUCT, AIR, REAR NO.6
87217-50030G0

JZS147

LI.SPRUCE,TRIM6#

 2
87217-50030A0

JZS147

IVORY,TRIM0#

 2
87217-50030B0

JZS147

GRAY,TRIM1#

 2
87217B - PLUG, AIR DUCT
90950-01693A0

JZS147

IVORY,TRIM0#

 4
90950-01693G0

JZS147

LI.SPRUCE,TRIM6#

 4
90950-01693B0

JZS147

GRAY,TRIM1#

 4
87217B - PLUG, AIR DUCT
90950-01693A0

JZS147

IVORY,TRIM0#

 4
90950-01693G0

JZS147

LI.SPRUCE,TRIM6#

 4
90950-01693B0

JZS147

GRAY,TRIM1#

 4
87226 - ADAPTER, AIR DUCT
87226-30020

JZS147

RH

 1
87226-30030

JZS147

LH

 1
87226 - ADAPTER, AIR DUCT
87226-30020

JZS147

RH

 1
87226-30030

JZS147

LH

 1
88790B - THERMISTOR ASSY
88790-28010

JZS147

 1
88897P - ASPIRATOR
88897-30710

JZS147..RHD

 1
Common parts
90159-50138
90159-60008
90189-06030
90467-06121
90480-01617
90480-01618
93568-55014

ILLUST NO. 2 OF 3(9303-9708)

Click highlighted areas on diagram

AUTO AIR SENSOR

diagram 88625C 88625C 88625C 9046710121 9356755016
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88790-30020

JZS147..RHD

NO.3

 1
88625-3A050

JZS147

NO.1

 1
88625-30880

JZS147

NO.2

 1
88625C - THERMISTOR, COOLER
88790-30020

JZS147..RHD

NO.3

 1
88625-3A050

JZS147

NO.1

 1
88625-30880

JZS147

NO.2

 1
88625C - THERMISTOR, COOLER
88790-30020

JZS147..RHD

NO.3

 1
88625-3A050

JZS147

NO.1

 1
88625-30880

JZS147

NO.2

 1
Common parts
90467-10121
93567-55016

ILLUST NO. 3 OF 3(9303-9708)

Click highlighted areas on diagram

CONTROL

diagram 55900B 55902B 55905A 55905A 55905A 88484 88650M 9009490416 9009490416
Part # Description Qty Price
55900B - BULB, AIR CONDITIONER CONTROL
84999-60220

JZS147

14V 1.12W,BROWN BASE

 2
84999-60200

JZS147

14V 0.84W

 1
84999-60230

JZS147

14V 1.12W,GRAY BASE

 4
84999-60210

JZS147

14V 1.12W,BLACK BASE

 1
55902B - CONTROL SUB-ASSY, HEATER
55902-30120

JZS147..RHD

 1
55902-30100

JZS147..RHD

 1
55905A - KNOB, HEATER CONTROL
55905-30210

JZS147

 3
55905A - KNOB, HEATER CONTROL
55905-30210

JZS147

 3
55905A - KNOB, HEATER CONTROL
55905-30210

JZS147

 3
88484 - WIRE, COOLER, NO.1
88484-30010

JZS147

 1
88650M - COMPUTER ASSY, AIR CONDITIONER
88650-3A030

JZS147..RHD

 1
88650-3A010

JZS147..RHD

 1
Common parts
90094-90416
