JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9303-9708)

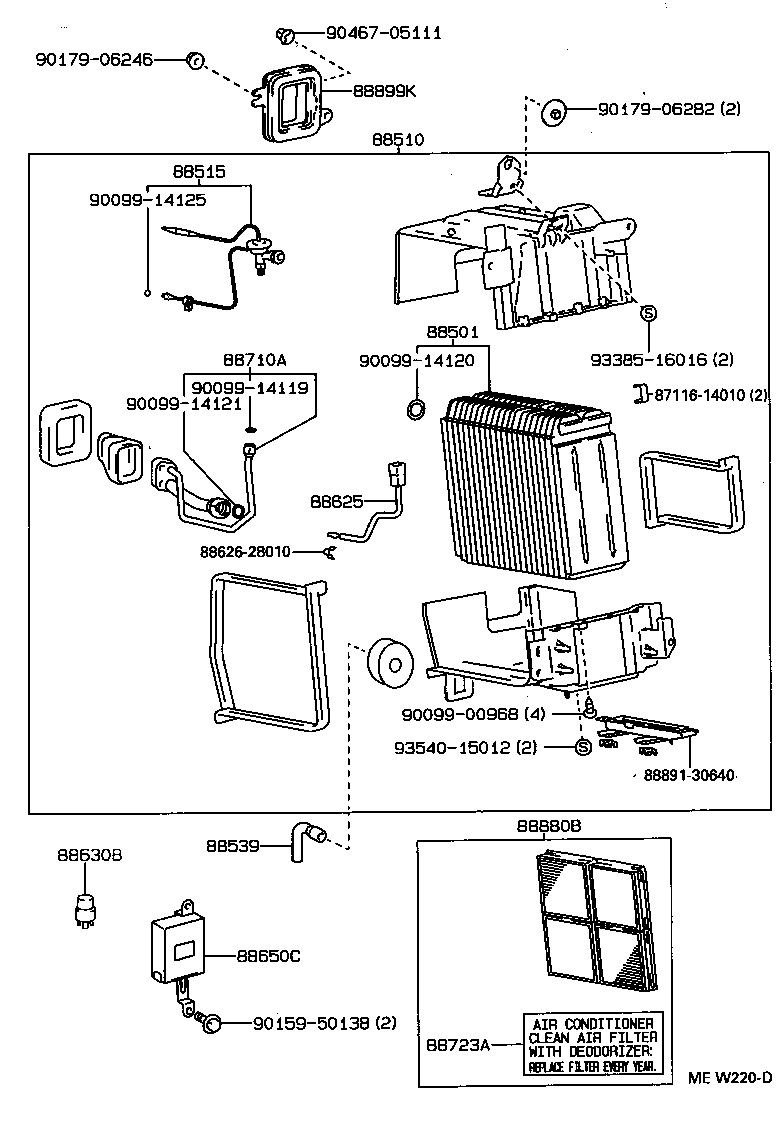

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30700 |
JZS147..RHD |
1 | ||
| 88501-30701 |
JZS147..RHD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-3F150 |
JZS147..RHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30530 |
JZS147..RHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30650 |
JZS147..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A020 |
JZS147 |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 90987-02010 |
JZS147 |
1 | ||
| 90987-02009 |
JZS147 |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-30750 |
JZS147..RHD |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-30790 |
JZS147..RHD |
1 | ||
| 88880B - FILTER ASSY, CLEAN AIR | ||||
| 88880-30050 |
JZS147..RHD |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-30750 |
JZS147..RHD |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 88626-28010 | ||||
| 88891-30640 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14125 | ||||
| 90159-50138 | ||||
| 90179-06246 | ||||
| 90179-06282 | ||||
| 90467-05111 | ||||
| 93385-16016 | ||||
| 93540-15012 | ||||
