JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9708)

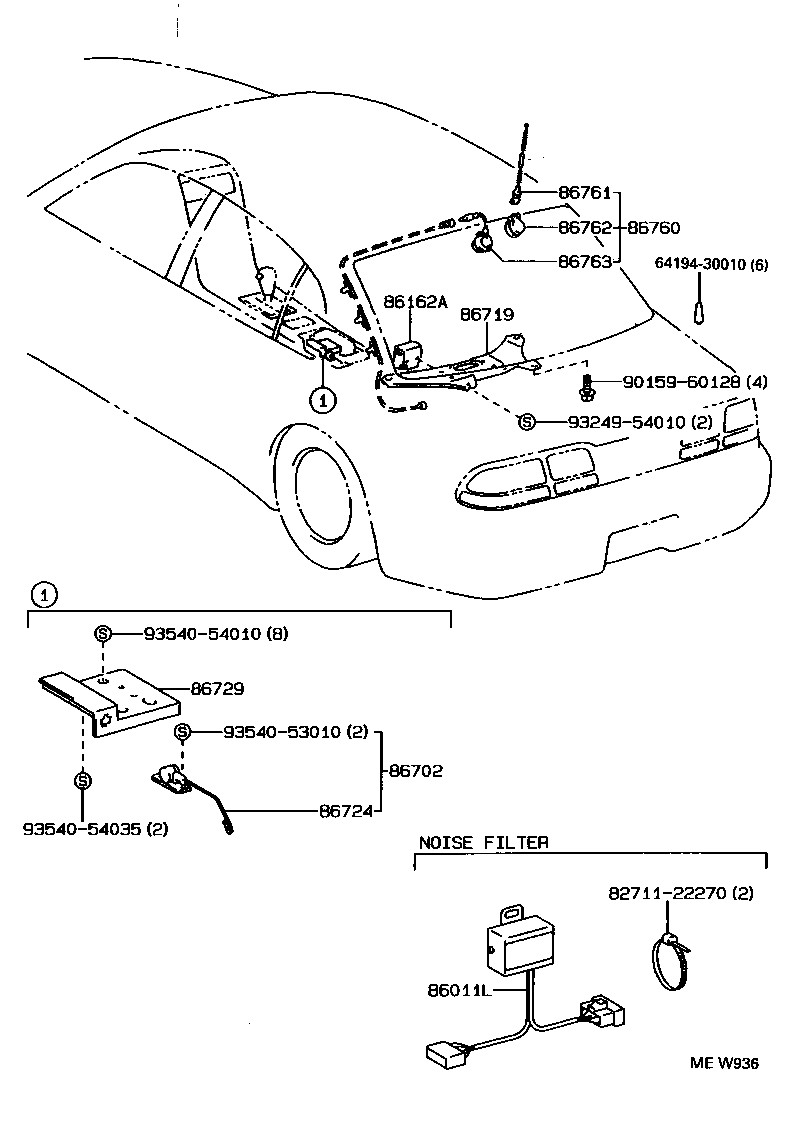

Click highlighted areas on diagram

diagram 6419430010 8271122270 86011L 86162A 86702 86719 86724 86729 86760 86761 86762 86763 9015960128 9324954010 9354053010 9354054010 9354054035
Part # Description Qty Price
86011L - FILTER, NOISE
90980-05281

JZS147..RHD

 1
86162A - RELAY, SPEAKER
86162-50010

JZS147..RHD

 1
86702 - BRACKET SET, TELEPHONE
86702-30010

JZS147..RHD

 1
86719 - BRACKET, TELEPHONE
86719-30040

JZS147..RHD

 1
86724 - GUIDE, CURL CORD
86724-30010

JZS147..RHD

 1
86729 - BRACKET, MOBILEPHONE
86729-30030

JZS147..RHD

 1
86760 - ANTENNA ASSY, TELEPHONE
86760-30010

JZS147..RHD

 1
86761 - ROD, TELEPHONE ANTENNA
86761-50020

JZS147..RHD

 1
86762 - BASE, TELEPHONE ANTENNA
86762-50020

JZS147..RHD

 1
86763 - BASE, TELEPHONE ANTENNA, N0.2
86763-30010

JZS147..RHD

 1
Common parts
64194-30010
82711-22270
90159-60128
93249-54010
93540-53010
93540-54010
93540-54035
