JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9303-9708)

Click highlighted areas on diagram

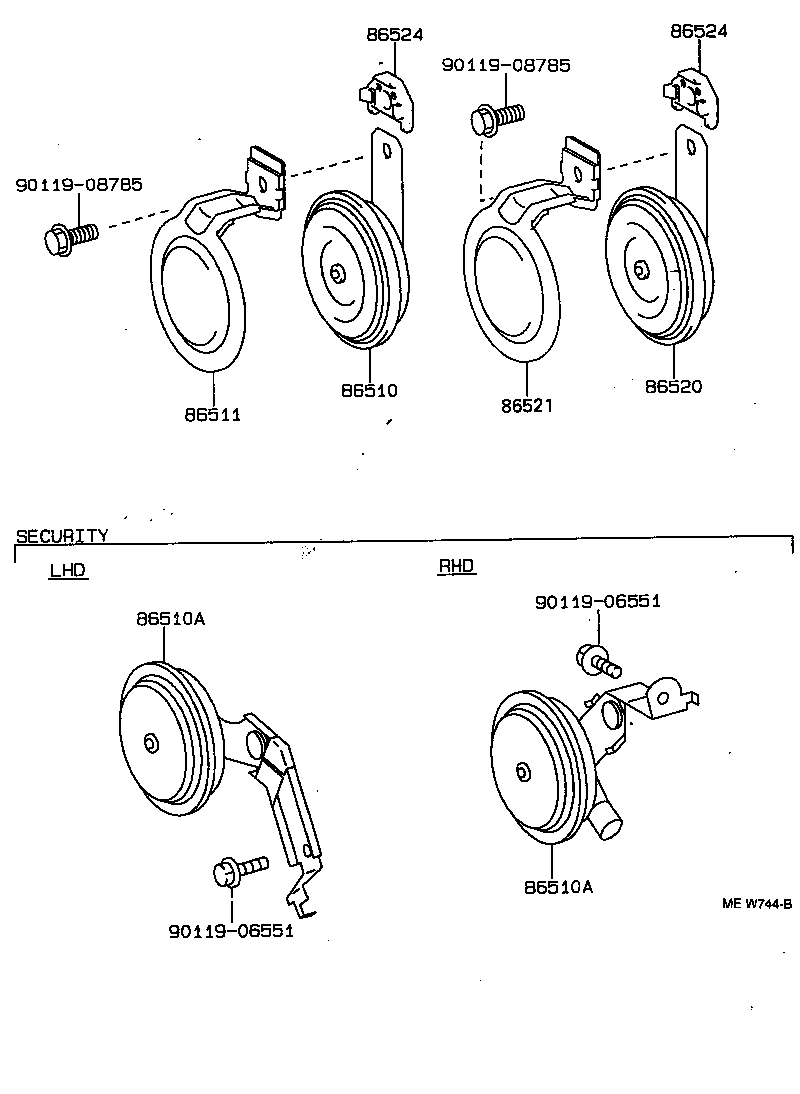

diagram 86510 86510A 86510A 86511 86520 86521 86524 86524 9011906551 9011906551 9011908785 9011908785
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-14290

JZS147..EUR

 1
86510A - HORN ASSY, SECURITY
86510-30540

JZS147..RHD

 1
86510A - HORN ASSY, SECURITY
86510-30540

JZS147..RHD

 1
86520 - HORN ASSY, LOW PITCHED
86520-12510

JZS147..EUR

 1
86524 - SPACER, HORN
86524-32020

JZS147

 2
86524 - SPACER, HORN
86524-32020

JZS147

 2
Common parts
90119-06551
90119-08785
