JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9303-9708)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-3A450 |
JZS147..RHD SINGAPORE SPEC OR HONG KONG SPEC |
1 | ||
| 86120-3A450 |
JZS147..RHD SINGAPORE SPEC |
1 | ||
| 86120-3A330 |
JZS147..RHD |
1 | ||
| 86120-3A451 |
JZS147..RHD SINGAPORE SPEC OR HONG KONG SPEC |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86127-30030 |
JZS147..EUR |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30170 |
JZS147..RHD |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30150 |
JZS147..RHD |
1 | ||
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-33020 |
JZS147 |
1 | ||
| 86275A - CHANGER, DISC PLAYER | ||||
| 86270-30071 |
JZS147 |
1 | ||
| 86270-30070 |
JZS147 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90119-06620 | ||||
| 90153-50010 | ||||
| 90159-60114 | ||||
(9303-9708)

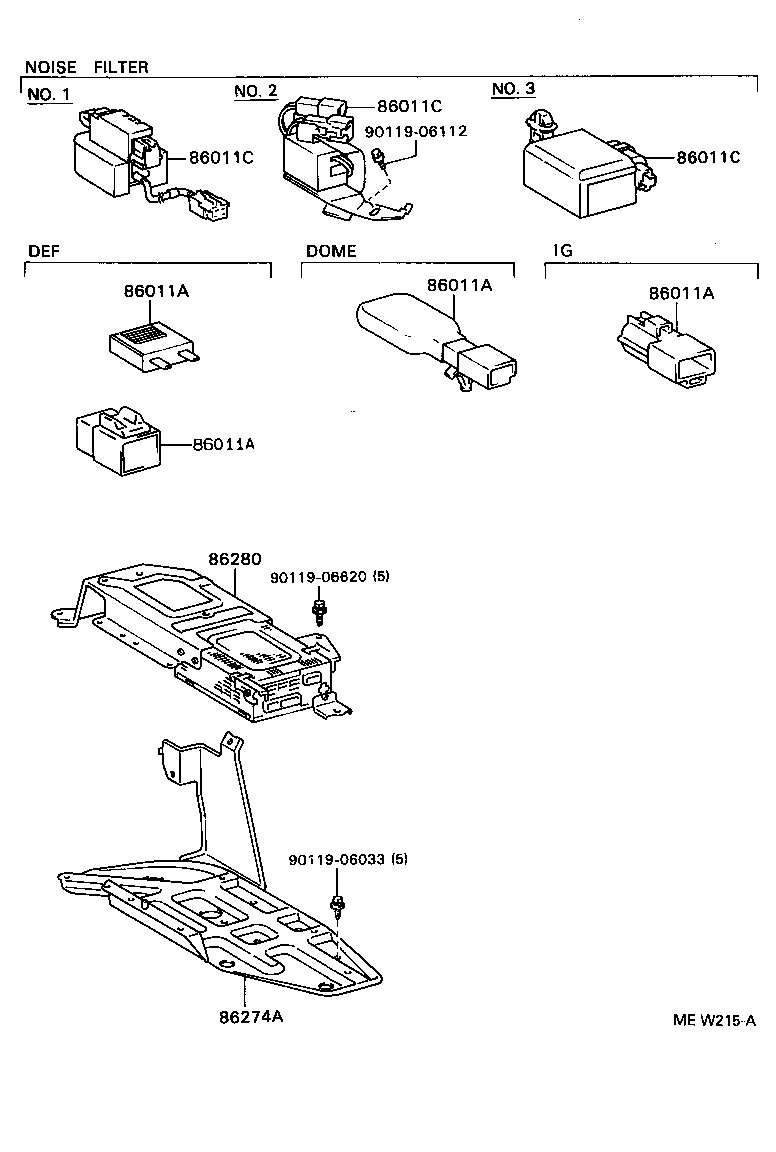

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
JZS147 IGNITION |
1 | ||
| 90980-04103 |
JZS147 DOME LAMP |
2 | ||
| 90980-04086 |
JZS147..RHD DEFOGGER |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
JZS147 IGNITION |
1 | ||
| 90980-04103 |
JZS147 DOME LAMP |
2 | ||
| 90980-04086 |
JZS147..RHD DEFOGGER |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
JZS147 IGNITION |
1 | ||
| 90980-04103 |
JZS147 DOME LAMP |
2 | ||
| 90980-04086 |
JZS147..RHD DEFOGGER |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
JZS147 IGNITION |
1 | ||
| 90980-04103 |
JZS147 DOME LAMP |
2 | ||
| 90980-04086 |
JZS147..RHD DEFOGGER |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05235 |
JZS147 |
1 | ||
| 90980-05228 |
JZS147 |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05235 |
JZS147 |
1 | ||
| 90980-05228 |
JZS147 |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05235 |
JZS147 |
1 | ||
| 90980-05228 |
JZS147 |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30030 |
JZS147 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30200 |
JZS147 |
1 | ||
| Common parts | ||||
| 90119-06033 | ||||
| 90119-06112 | ||||
| 90119-06620 | ||||
