JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9308-9708)

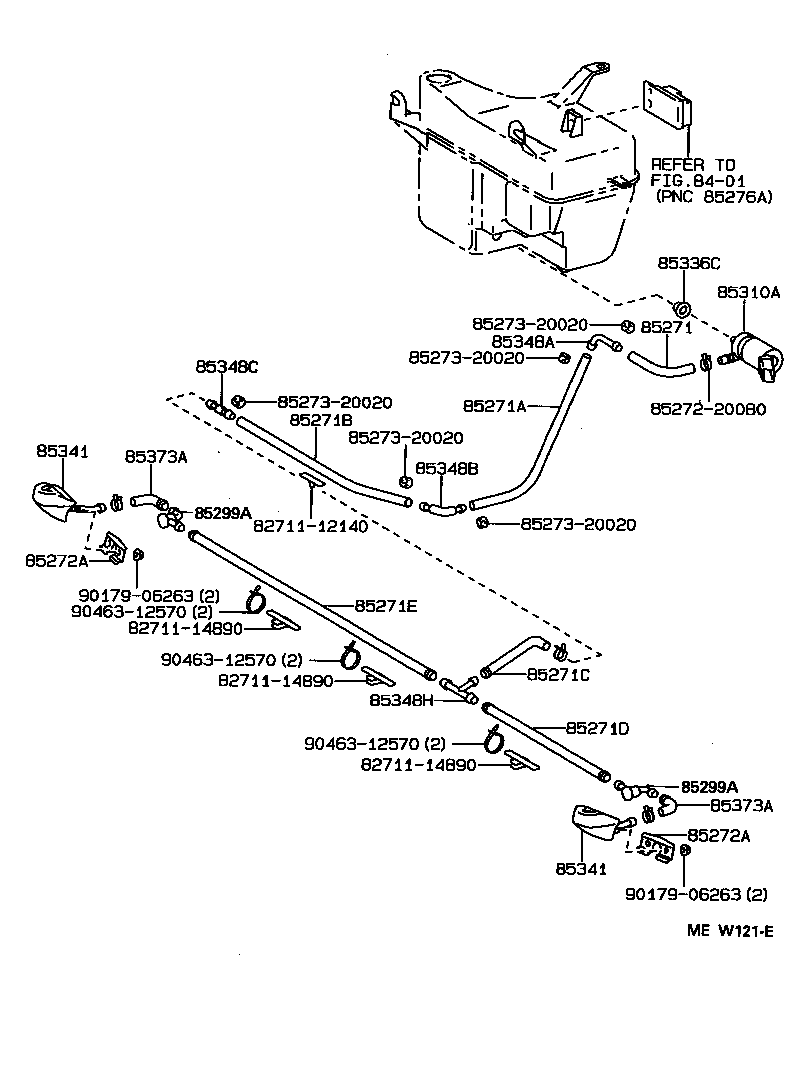

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85343-95700 |
JZS147..EUR L=135 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85275-30010 |
JZS147..EUR |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85375-22061 |
JZS147..EUR L=640 |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 85275-30020 |
JZS147..EUR |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 85375-22061 |
JZS147..EUR L=640 |
1 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 85375-22061 |
JZS147..EUR L=640 |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-30020 |
JZS147..EUR |
2 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-30020 |
JZS147..EUR |
2 | ||
| 85299A - VALVE ASSY, CHECK | ||||
| 85299-33020 |
JZS147..EUR |
2 | ||
| 85299A - VALVE ASSY, CHECK | ||||
| 85299-33020 |
JZS147..EUR |
2 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85280-30020 |
JZS147..EUR |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 85336-10010 |
JZS147..EUR |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85044-30010 |
JZS147..EUR |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85044-30010 |
JZS147..EUR |
2 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85279-30010 |
JZS147..EUR |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 85379-90K04 |
JZS147..EUR |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85379-89131 |
JZS147..EUR |
1 | ||
| 85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4 | ||||
| 85352-12010 |
JZS147..EUR |
1 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85375-32011 |
JZS147..EUR L=35 |
2 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85375-32011 |
JZS147..EUR L=35 |
2 | ||
| Common parts | ||||
| 82711-12140 | ||||
| 82711-14890 | ||||
| 85272-20080 | ||||
| 85273-20020 | ||||
| 90179-06263 | ||||
| 90463-12570 | ||||
| Linked diagrams | ||||
| 8401 | ||||
