JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9303-9708)

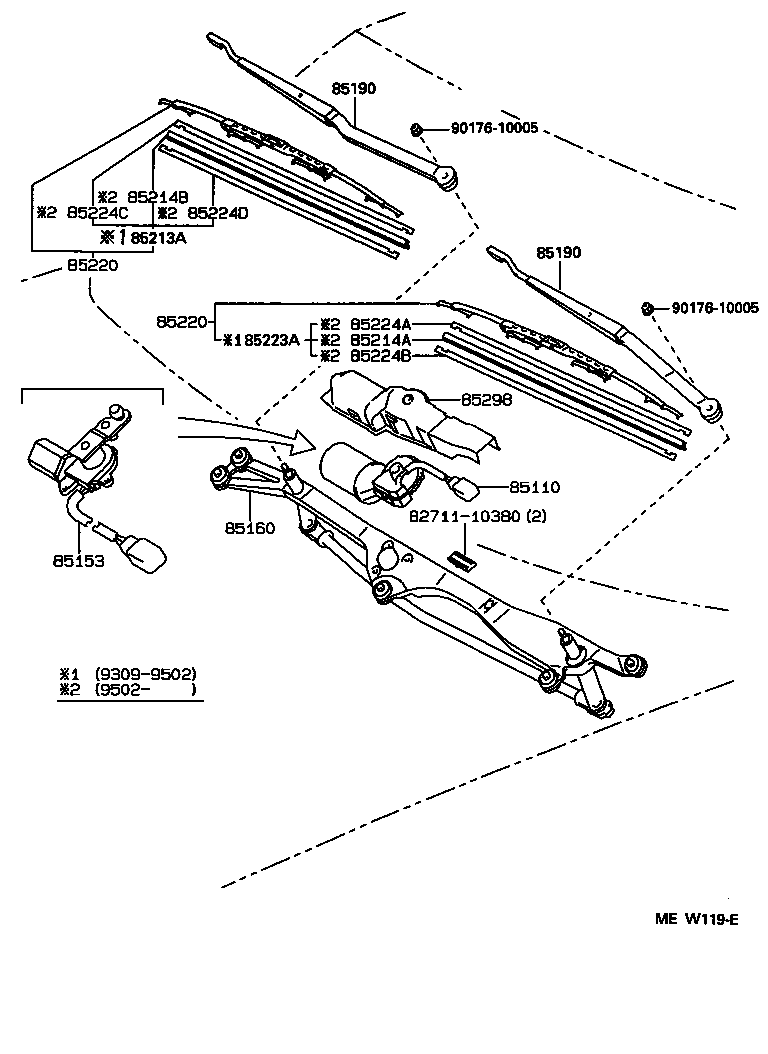

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-30370 |
JZS147..RHD |
1 | ||
| 85110-30361 |
JZS147 |
1 | ||
| 85153 - MOTOR, FULL AREA WIPER | ||||
| 85153-30290 |
JZS147..RHD |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-30291 |
JZS147..RHD |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85221-30330 |
JZS147..RHD LH |
1 | ||
| 85211-30440 |
JZS147..RHD RH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85221-30330 |
JZS147..RHD LH |
1 | ||
| 85211-30440 |
JZS147..RHD RH |
1 | ||
| 85213A - RUBBER, WIPER BLADE, RH | ||||
| 85223-33022 |
JZS147..RHD |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-33050 |
JZS147..RHD |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-30270 |
JZS147..RHD |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85222-30480 |
JZS147..RHD LH |
1 | ||
| 85212-30320 |
JZS147..RHD RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85222-30480 |
JZS147..RHD LH |
1 | ||
| 85212-30320 |
JZS147..RHD RH |
1 | ||
| 85223A - RUBBER, FRONT WIPER BLADE, LH | ||||
| 85223-30410 |
JZS147..RHD |
1 | ||
| 85224A - PLATE, WIPER RUBBER BACKING, NO.1 | ||||
| 85224-33050 |
JZS147..RHD |
1 | ||
| 85224B - PLATE, WIPER RUBBER BACKING, NO.2 | ||||
| 85224-33050 |
JZS147..RHD |
1 | ||
| 85224C - PLATE, WIPER RUBBER BACKING, NO.3 | ||||
| 85224-28090 |
JZS147..RHD |
1 | ||
| 85224D - PLATE, WIPER RUBBER BACKING, NO.4 | ||||
| 85224-28080 |
JZS147..RHD |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90176-10005 | ||||
