JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9508-9708)

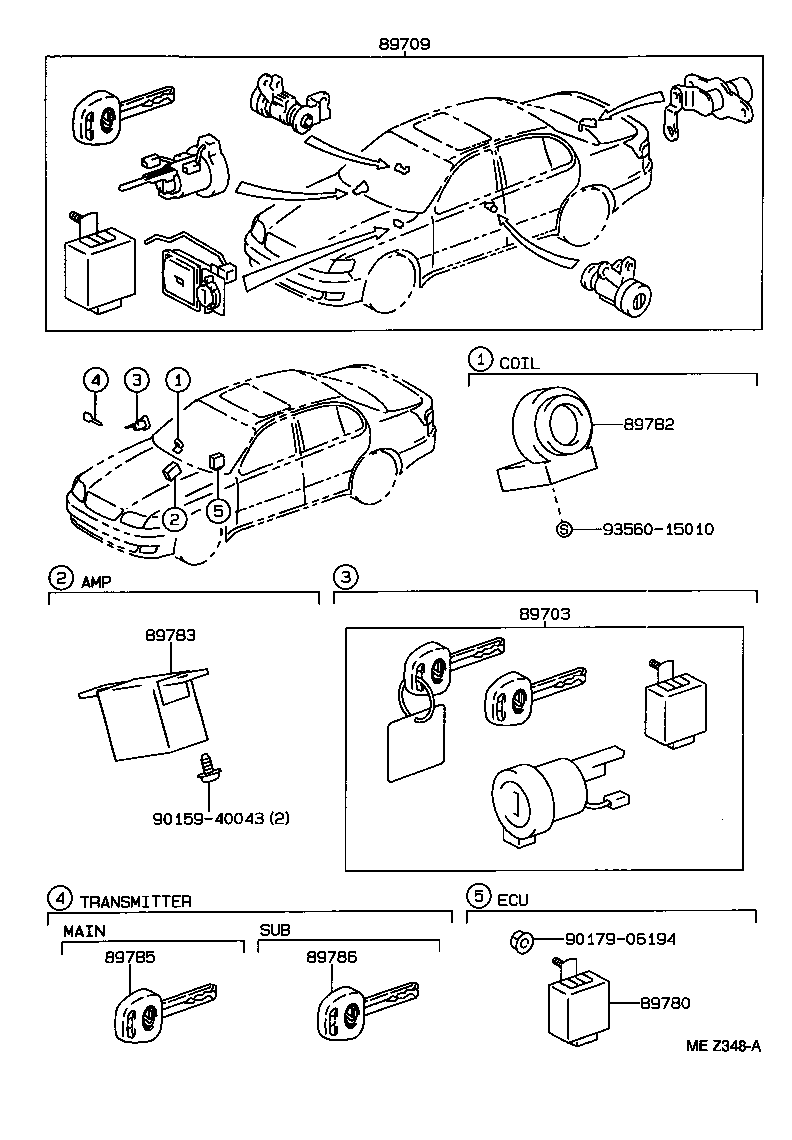

Click highlighted areas on diagram

diagram 89703 89709 89780 89782 89783 89785 89786 9015940043 9017906194 9356015010
Part # Description Qty Price
89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89703-30010

JZS147..EUR

 1
89709 - COMPUTER SET, TRANSPONDER KEY
89709-30010

JZS147..RHD

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-30010

JZS147..EUR

 1
89782 - COIL, TRANSPONDER KEY
89782-30010

JZS147..EUR

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-30010

JZS147..EUR

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-50010

JZS147..EUR

CUT KEY

 1
89785-30020

JZS147..EUR

BLANK KEY

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-50010

JZS147..EUR

CUT KEY

 1
89786-30020

JZS147..EUR

BLANK KEY

 1
Common parts
90159-40043
90179-06194
93560-15010
