JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9303-9708)

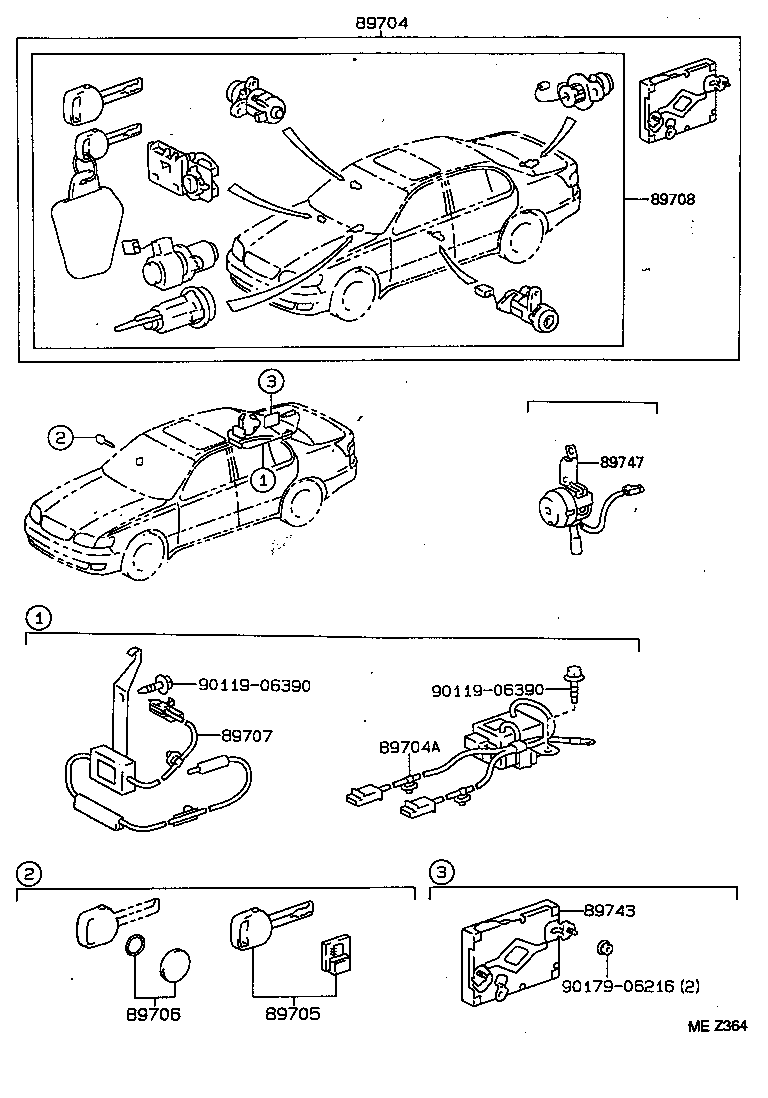

Click highlighted areas on diagram

diagram 89704 89704A 89705 89706 89707 89708 89743 89747 9011906390 9011906390 9017906216
Part # Description Qty Price
89704 - CONTROL SET, WIRELESS DOOR LOCK
89704-30150

JZS147..RHD

 1
89704A - FILTER, NOISE(FOR WIRELESS DOOR LOCK)
90980-05273

JZS147

 1
89705 - TRANSMITTER, DOOR CONTROL
89705-50909

JZS147..RHD

 1
89705-50916

JZS147..RHD

 1
89705-50912

JZS147..RHD

 1
89706 - BATTERY SET, TRANSMITTER
89706-50010

JZS147

 1
89707 - CORD SUB-ASSY, WIRELESS DOOR LOCK
89707-30040

JZS147..EUR

 1
89708 - CYLINDER SET, WIRELESS DOOR LOCK
89708-30080

JZS147..RHD

CUT KEY 3PCE

 1
89743 - RECEIVER, DOOR CONTROL
89743-30100

JZS147..EUR

 1
Common parts
90119-06390
90179-06216
