JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9303-9708)

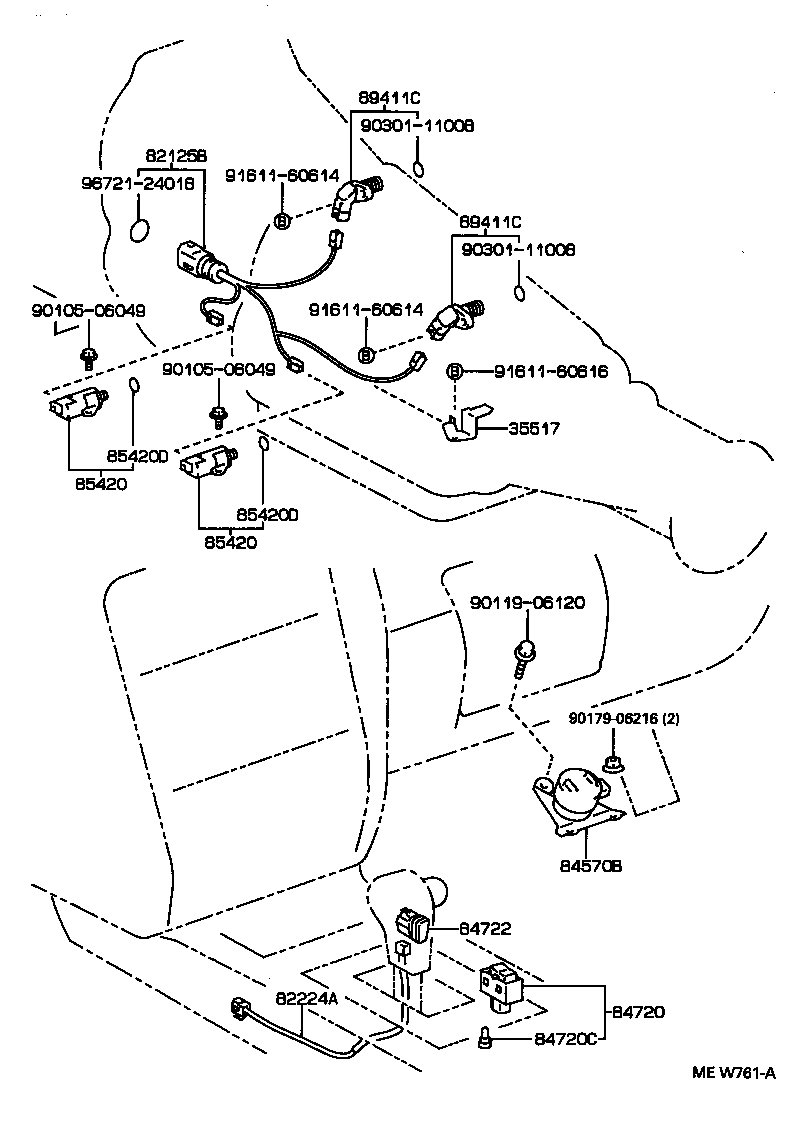

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35517 - PLATE, TRANSMISSION WIRE LOCK | ||||
| 35517-50010 |
JZS147 |
1 | ||
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-50010 |
JZS147 |
1 | ||
| 82125-30380 |
JZS147 |
1 | ||
| 82224A - WIRE, OVERDRIVE | ||||
| 82224-30040 |
JZS147 |
1 | ||
| 84570B - SWITCH ASSY, KICK DOWN | ||||
| 84570-30060 |
JZS147..RHD |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-30170 |
JZS147 |
1 | ||
| 84720C - BULB(FOR PATTERN SELECT SWITCH) | ||||
| 84999-10320 |
JZS147 14V 0.84W |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-30170G0 |
JZS147..RHD SPRUCE GRAY,TRIM6# |
1 | ||
| 84722-30170E1 |
JZS147..RHD DK.ROSE,TRIM0# |
1 | ||
| 84722-30170B0 |
JZS147..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-50020 |
JZS147 SHIFT SOLENOID |
2 | ||
| 85420-30190 |
JZS147 LOCK UP SOLENOID |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-50020 |
JZS147 SHIFT SOLENOID |
2 | ||
| 85420-30190 |
JZS147 LOCK UP SOLENOID |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
JZS147 |
2 | ||
| 90301-06004 |
JZS147 |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
JZS147 |
2 | ||
| 90301-06004 |
JZS147 |
4 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-50010 |
JZS147 |
1 | ||
| 89411-50010 |
JZS147 |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-50010 |
JZS147 |
1 | ||
| 89411-50010 |
JZS147 |
2 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 90119-06120 | ||||
| 90179-06216 | ||||
| 90301-11008 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 96721-24018 | ||||
