JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9303-9708)

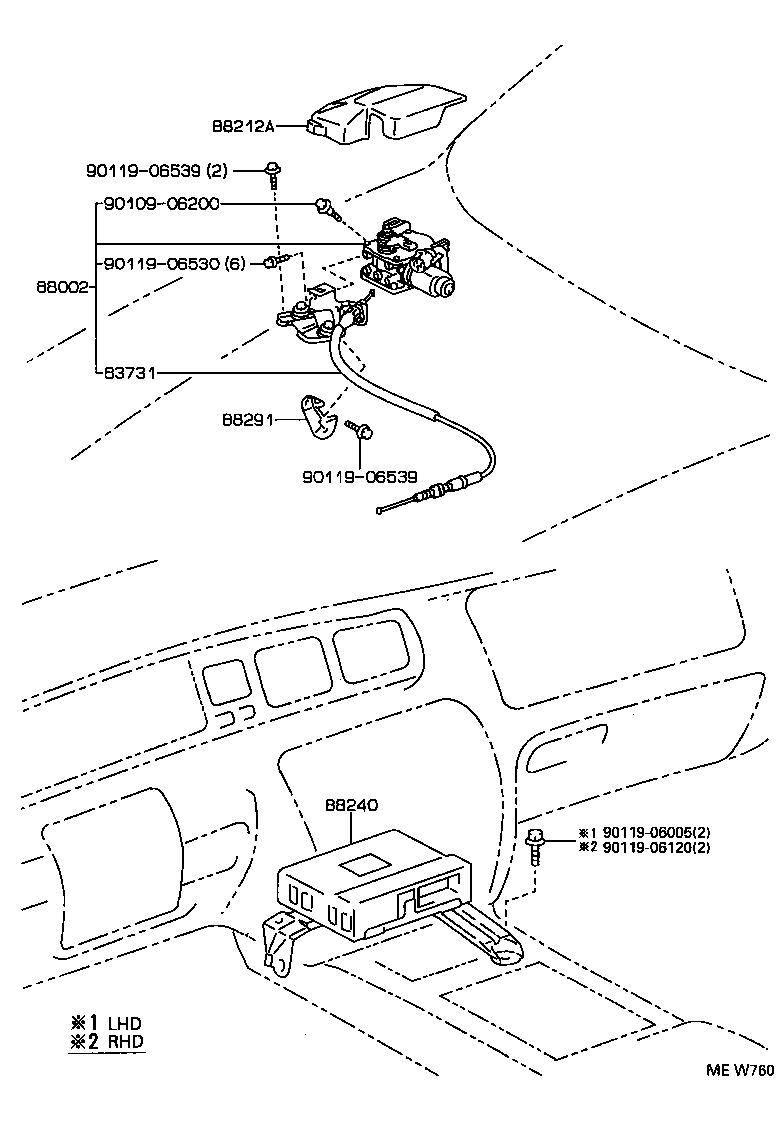

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83731 - CABLE, CRUISE CONTROL | ||||
| 83731-30170 |
JZS147..RHD |
1 | ||
| 83731-30110 |
JZS147 |
1 | ||
| 88002 - CRUISE CONTROL(AUTO DRIVE) SET | ||||
| 88002-30280 |
JZS147..RHD |
1 | ||
| 88002-30190 |
JZS147..RHD |
1 | ||
| 88212A - COVER, CRUISE CONTROL ACTUATOR | ||||
| 88212-30130 |
JZS147..RHD |
1 | ||
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-30280 |
JZS147..RHD |
1 | ||
| 88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1 | ||||
| 88291-30080 |
JZS147 |
1 | ||
| Common parts | ||||
| 90109-06200 | ||||
| 90119-06005 | ||||
| 90119-06120 | ||||
| 90119-06530 | ||||
| 90119-06539 | ||||
