JZS147R-BEPQFW (1993)
Toyota Lexus Gs300

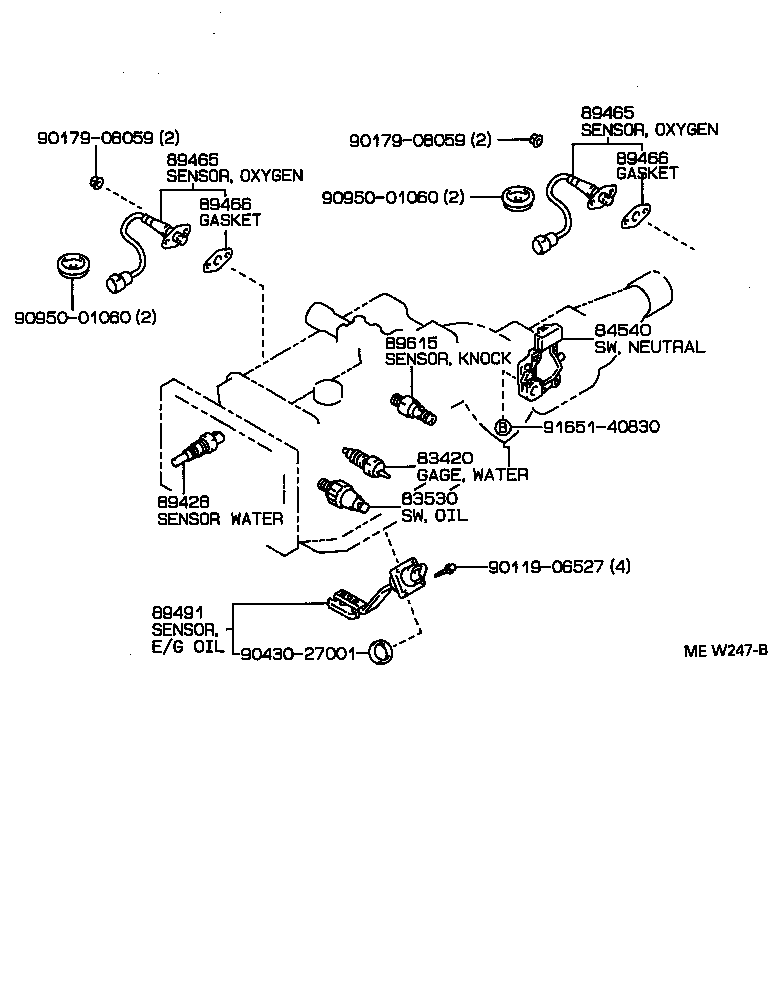

ILLUST NO. 1 OF 8(9303-9708)
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
JZS147 NIPPONDENSO |
1 | ||
| 83420-16040 |
JZS147 NIPPONDENSO |
1 | ||
| 83420-20030 |
JZS147 YAZAKI |
1 | ||
| 83420-20030 |
JZS147 YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
JZS147 NIPPONDENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30280 |
JZS147 MATSUSHITA |
1 | ||
| 84540-30270 |
JZS147 TOKAIRIKA |
1 | ||
| 84540-30270 |
JZS147 MATSUSHITA |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-24010 |
JZS147 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39795 |
JZS147..EUR FRONT |
1 | ||
| 89465-39805 |
JZS147..EUR REAR |
1 | ||
| 89465-30350 |
JZS147..RHD |
1 | ||
| 89465-20430 |
JZS147..EUR REAR |
1 | ||
| 89465-30330 |
JZS147..EUR FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39795 |
JZS147..EUR FRONT |
1 | ||
| 89465-39805 |
JZS147..EUR REAR |
1 | ||
| 89465-30350 |
JZS147..RHD |
1 | ||
| 89465-20430 |
JZS147..EUR REAR |
1 | ||
| 89465-30330 |
JZS147..EUR FRONT |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
JZS147..EUR |
2 | ||
| 89466-20020 |
JZS147..EUR |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
JZS147..EUR |
2 | ||
| 89466-20020 |
JZS147..EUR |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30010 |
JZS147 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22040 |
JZS147 DENSO |
2 | ||
| 89615-22030 |
JZS147 MATSUSHITA |
2 | ||
| Common parts | ||||
| 90119-06527 | ||||
| 90179-08059 | ||||
| 90430-27001 | ||||
| 90950-01060 | ||||
| 91651-40830 | ||||

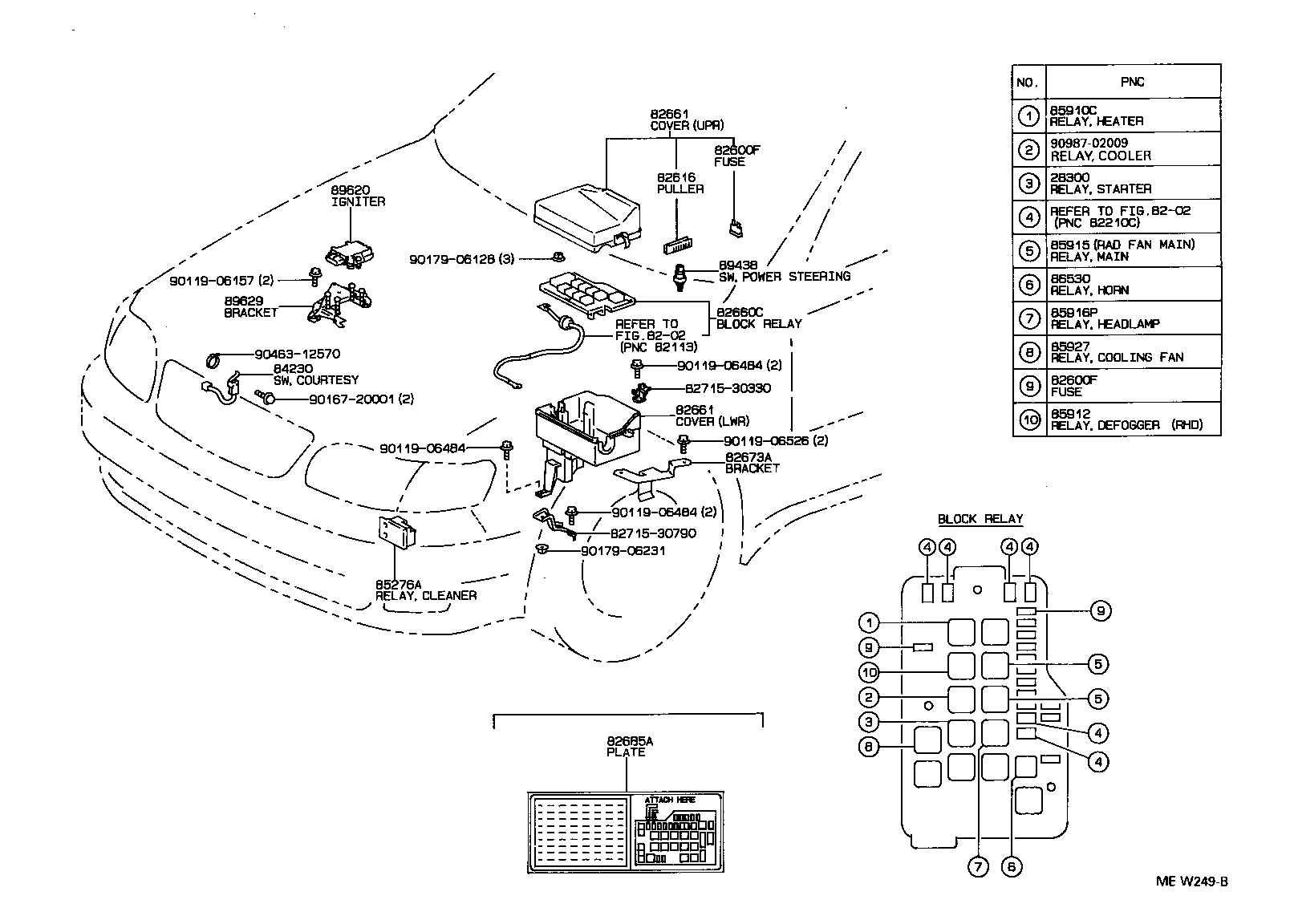

ILLUST NO. 2 OF 8(9303-9708)
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
2JZGE..JZS147 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
JZS147..RHD 7.5A |
3 | ||
| 90982-09003 |
JZS147..RHD 15A |
6 | ||
| 90982-09001 |
JZS147..RHD 5A |
1 | ||
| 90982-09006 |
JZS147 25A |
1 | ||
| 90982-07011 |
JZS147 30A,GREEN |
2 | ||
| 90982-09003 |
JZS147..RHD 15A |
4 | ||
| 90982-09002 |
JZS147..RHD 10A |
5 | ||
| 90982-09002 |
JZS147..RHD 10A |
2 | ||
| 90982-09004 |
JZS147..RHD 20A,YELLOW |
4 | ||
| 90982-09004 |
JZS147..RHD 20A,YELLOW |
1 | ||
| 90982-09005 |
JZS147..RHD;JZS147..GCC 7.5A |
3 | ||
| 90982-09003 |
JZS147..EUR 15A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
JZS147..RHD 7.5A |
3 | ||
| 90982-09003 |
JZS147..RHD 15A |
6 | ||
| 90982-09001 |
JZS147..RHD 5A |
1 | ||
| 90982-09006 |
JZS147 25A |
1 | ||
| 90982-07011 |
JZS147 30A,GREEN |
2 | ||
| 90982-09003 |
JZS147..RHD 15A |
4 | ||
| 90982-09002 |
JZS147..RHD 10A |
5 | ||
| 90982-09002 |
JZS147..RHD 10A |
2 | ||
| 90982-09004 |
JZS147..RHD 20A,YELLOW |
4 | ||
| 90982-09004 |
JZS147..RHD 20A,YELLOW |
1 | ||
| 90982-09005 |
JZS147..RHD;JZS147..GCC 7.5A |
3 | ||
| 90982-09003 |
JZS147..EUR 15A |
6 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
JZS147 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-30860 |
JZS147..RHD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-30050 |
JZS147..RHD LOWER |
1 | ||
| 82662-30301 |
JZS147..RHD UPPER |
1 | ||
| 82662-30350 |
JZS147 UPPER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-30050 |
JZS147..RHD LOWER |
1 | ||
| 82662-30301 |
JZS147..RHD UPPER |
1 | ||
| 82662-30350 |
JZS147 UPPER |
1 | ||
| 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) | ||||
| 84231-50050 |
JZS147..RHD |
1 | ||
| 85276A - RELAY, CLEANER CONTROL | ||||
| 85942-33010 |
JZS147..EUR |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
JZS147 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02010 |
JZS147 |
1 | ||
| 90987-02009 |
JZS147 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02009 |
JZS147 IGNITION |
1 | ||
| 90987-04002 |
JZS147 RADIATOR FAN MAIN |
1 | ||
| 90987-02010 |
JZS147 IGNITION |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
JZS147 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
JZS147 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
JZS147 |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-30020 |
JZS147 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-33010 |
JZS147..EUR |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-30180 |
JZS147..EUR |
1 | ||
| Common parts | ||||
| 82715-30330 | ||||
| 82715-30790 | ||||
| 90119-06157 | ||||
| 90119-06484 | ||||
| 90119-06526 | ||||
| 90167-20001 | ||||
| 90179-06128 | ||||
| 90179-06231 | ||||
| 90463-12570 | ||||
| 90987-02009 | ||||
| Linked diagrams | ||||
| 8202 | ||||

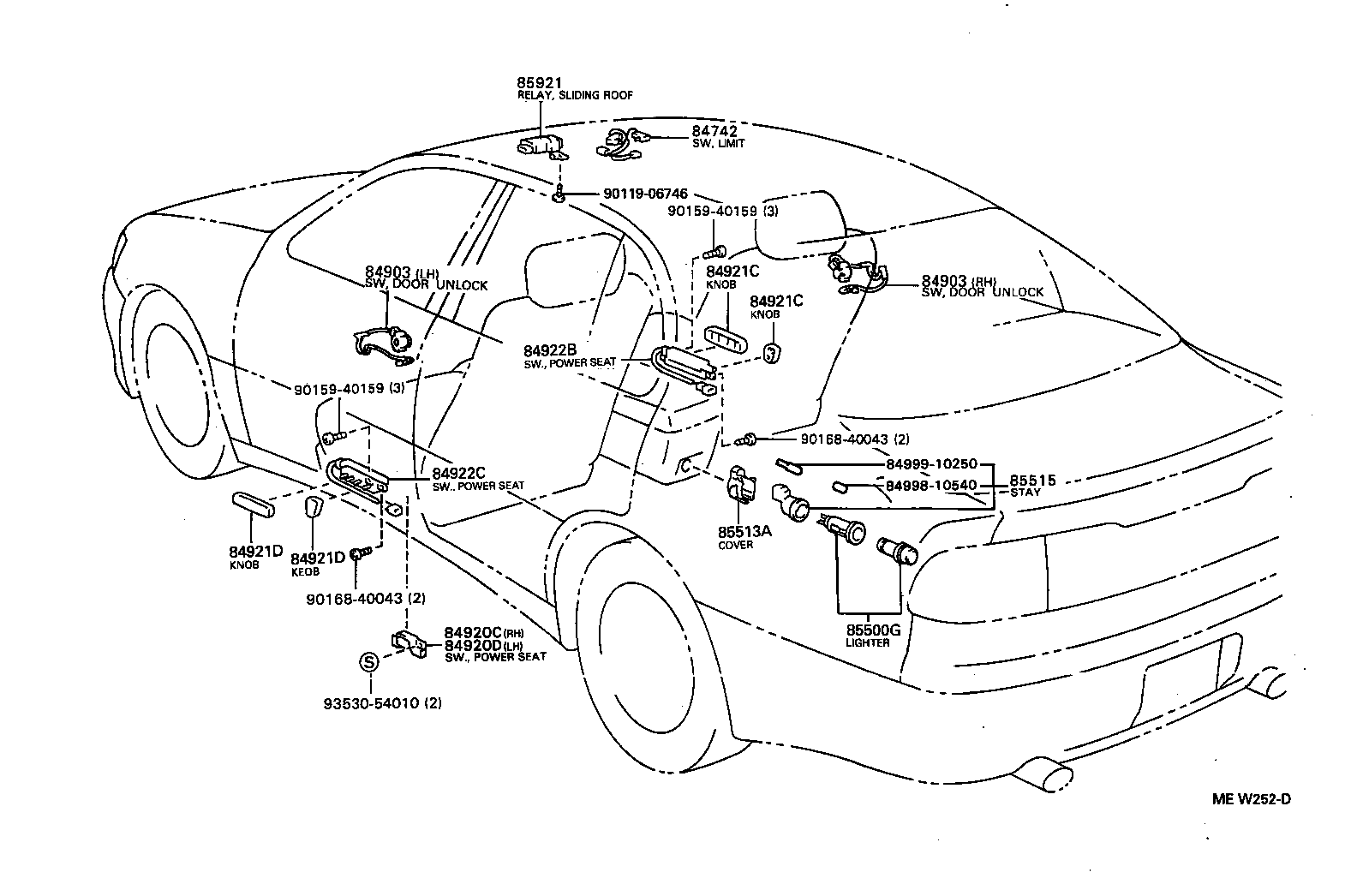

ILLUST NO. 7 OF 8(9303-9708)
ROOF, FRONT DOOR,FRONT SEAT & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-30030 |
JZS147 |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-30020 |
JZS147 RH |
1 | ||
| 84903-30040 |
JZS147 LH |
1 | ||
| 84903-50040 |
JZS147 LUGGAGE |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-30020 |
JZS147 RH |
1 | ||
| 84903-30040 |
JZS147 LH |
1 | ||
| 84903-50040 |
JZS147 LUGGAGE |
1 | ||
| 84920C - SWITCH ASSY, POWER SEAT FRONT, RH | ||||
| 84920-30200A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 84920-30200B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 84920-30200G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-30210G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 84920-30210B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 84920-30210A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-24030G0 |
JZS147 LI.SPRUCE,TRIM6#,SLIDE |
1 | ||
| 84921-24030A0 |
JZS147 IVORY,TRIM0#,SLIDE |
1 | ||
| 84921-24010G0 |
JZS147 LI.SPRUCE,TRIM6#,RECLINING |
1 | ||
| 84921-24030B0 |
JZS147 GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24010A0 |
JZS147 IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-24010B0 |
JZS147 GRAY,TRIM1#,RECLINING |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-24030G0 |
JZS147 LI.SPRUCE,TRIM6#,SLIDE |
1 | ||
| 84921-24030A0 |
JZS147 IVORY,TRIM0#,SLIDE |
1 | ||
| 84921-24010G0 |
JZS147 LI.SPRUCE,TRIM6#,RECLINING |
1 | ||
| 84921-24030B0 |
JZS147 GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24010A0 |
JZS147 IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-24010B0 |
JZS147 GRAY,TRIM1#,RECLINING |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-2405003 |
JZS147 MIDIUM GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24050G0 |
JZS147 LI. SPRUCE,TRIM6#,SLIDE |
1 | ||
| 84921-24020B0 |
JZS147 GRAY,TRIM1#,RECLINING |
1 | ||
| 84921-24050B0 |
JZS147 GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24050A0 |
JZS147 IVORY,TRIM0#,SLIDE |
1 | ||
| 84921-24020G0 |
JZS147 LI.SPRUCE,TRIM6#,RECLINING |
1 | ||
| 84921-24020A0 |
JZS147 IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-2405007 |
JZS147 SPRUCE,TRIM6#,SLIDE |
1 | ||
| 84921-2405008 |
JZS147 IVORY,TRIM0#,SLIDE |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-2405003 |
JZS147 MIDIUM GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24050G0 |
JZS147 LI. SPRUCE,TRIM6#,SLIDE |
1 | ||
| 84921-24020B0 |
JZS147 GRAY,TRIM1#,RECLINING |
1 | ||
| 84921-24050B0 |
JZS147 GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24050A0 |
JZS147 IVORY,TRIM0#,SLIDE |
1 | ||
| 84921-24020G0 |
JZS147 LI.SPRUCE,TRIM6#,RECLINING |
1 | ||
| 84921-24020A0 |
JZS147 IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-2405007 |
JZS147 SPRUCE,TRIM6#,SLIDE |
1 | ||
| 84921-2405008 |
JZS147 IVORY,TRIM0#,SLIDE |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-30150 |
JZS147 |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-30270 |
JZS147 |
1 | ||
| 85500G - LIGHTER ASSY, CIGARETTE, REAR | ||||
| 85500-50020 |
JZS147 |
1 | ||
| 85513A - COVER, CIGARETTE LIGHTER, REAR | ||||
| 85513-28010 |
JZS147 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-20030 |
JZS147 |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-30040 |
JZS147 |
1 | ||
| 85921-30030 |
JZS147 |
1 | ||
| 85921-50020 |
JZS147 |
1 | ||
| Common parts | ||||
| 84998-10540 | ||||
| 84999-10250 | ||||
| 90119-06746 | ||||
| 90159-40159 | ||||
| 90168-40043 | ||||
| 93530-54010 | ||||

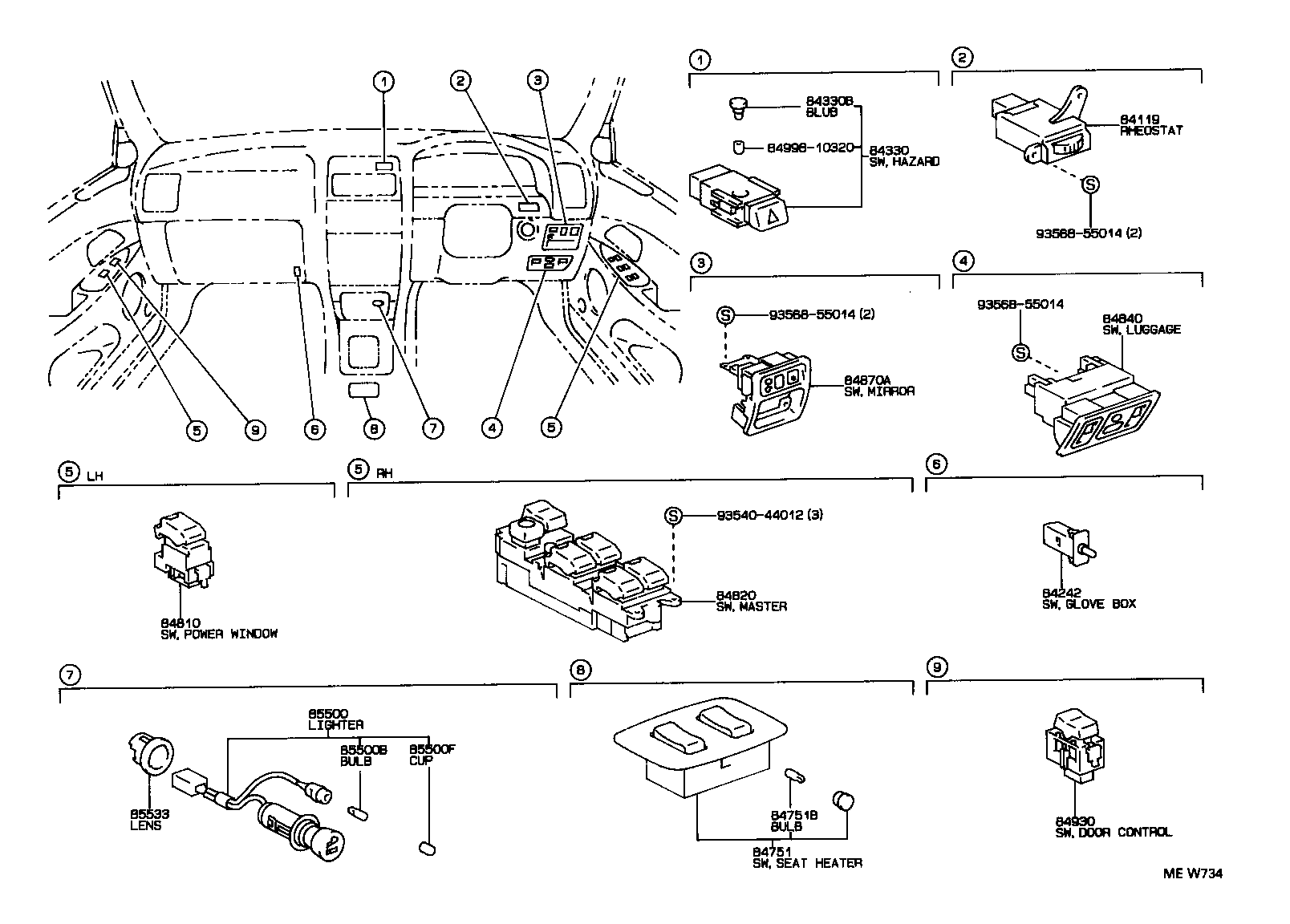

ILLUST NO. 3 OF 8(9308-9708)RHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-30220 |
JZS147..RHD |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
JZS147 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30250 |
JZS147 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
JZS147 14V 0.84W |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-30110G0 |
JZS147..EUR SPRUCE GRAY,TRIM6# |
1 | ||
| 84751-30110E0 |
JZS147..EUR SABLE,TRIM0# |
1 | ||
| 84751-30110B0 |
JZS147..EUR GRAY,TRIM1# |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10720 |
JZS147..EUR 14V 0.84W |
1 | ||
| 84999-10130 |
JZS147..EUR 12V 0.56W |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30210 |
JZS147 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-30420 |
JZS147..RHD |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30150G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 84840-30150B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 84840-30150A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30280B0 |
JZS147..RHD GRAY,TRIM1# |
1 | ||
| 84870-30280G0 |
JZS147..RHD LI.SPRUCE,TRIM6# |
1 | ||
| 84870-30280A0 |
JZS147..RHD IVORY,TRIM0# |
1 | ||
| 84870-30320G0 |
JZS147..RHD SPRUCE,TRIM6# |
1 | ||
| 84870-30320B0 |
JZS147..RHD MD.GRAY,TRIM1# |
1 | ||
| 84870-30320A0 |
JZS147..RHD IVORY,TRIM0# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-50020 |
JZS147 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30460 |
JZS147 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10440 |
JZS147 14V 2.0W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10530 |
JZS147 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-50010 |
JZS147 |
1 | ||
| Common parts | ||||
| 84998-10320 | ||||
| 93540-44012 | ||||
| 93568-55014 | ||||

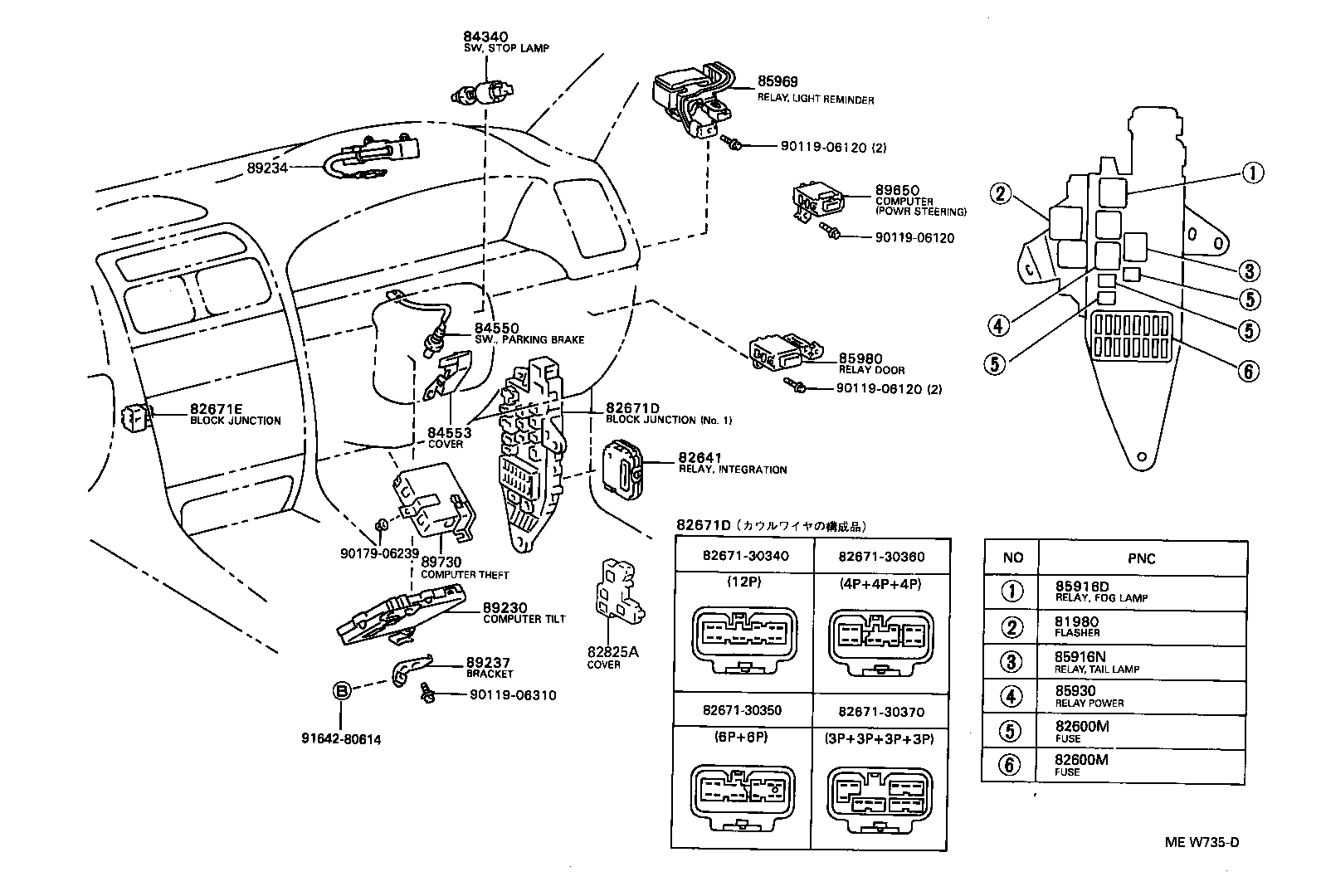

ILLUST NO. 4 OF 8(9308-9708)RHD
COWL RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
JZS147 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
JZS147..RHD 30A,PINK |
2 | ||
| 90982-10001 |
JZS147..RHD;JZS147..GCC 30A,PINK |
2 | ||
| 90982-10002 |
JZS147..RHD 40A,GREEN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
JZS147..RHD 30A,PINK |
2 | ||
| 90982-10001 |
JZS147..RHD;JZS147..GCC 30A,PINK |
2 | ||
| 90982-10002 |
JZS147..RHD 40A,GREEN |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-14040 |
JZS147..EUR |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-30370 |
JZS147 3P+3P+3P+3P |
3 | ||
| 82671-30320 |
JZS147..EUR NO.3 J/B |
1 | ||
| 82671-30360 |
JZS147 4P+4P+4P |
3 | ||
| 82671-30310 |
JZS147..RHD NO.1 J/B |
1 | ||
| 82671-30350 |
JZS147..RHD 6P+6P |
1 | ||
| 82671-30340 |
JZS147..RHD 12P |
1 | ||
| 82671E - BLOCK, JUNCTION | ||||
| 82671-30360 |
JZS147 |
1 | ||
| 82825A - COVER, RELAY | ||||
| 82825-30020 |
JZS147..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32110 |
JZS147 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30060 |
JZS147..RHD |
1 | ||
| 84550-30070 |
JZS147..RHD |
1 | ||
| 84553 - COVER, PARKING BRAKE SWITCH | ||||
| 84553-30010 |
JZS147..RHD |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02010 |
JZS147 |
1 | ||
| 90987-02009 |
JZS147 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02010 |
JZS147 |
1 | ||
| 90987-02009 |
JZS147 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02009 |
JZS147 |
1 | ||
| 90987-02010 |
JZS147 |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-30020 |
JZS147..RHD |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-30390 |
JZS147..RHD |
1 | ||
| 89230 - COMPUTER ASSY, TILT STEERING | ||||
| 89230-30120 |
JZS147..RHD |
1 | ||
| 89230-30121 |
JZS147..RHD |
1 | ||
| 89234 - SENSOR, TELESCOPIC POSITION | ||||
| 89234-30040 |
JZS147 |
1 | ||
| 89237 - BRACKET, COMPUTER UNIT | ||||
| 89237-30020 |
JZS147..RHD |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30470 |
JZS147..RHD |
1 | ||
| 89730 - COMPUTER ASSY, SECURITY WARNING | ||||
| 89730-30040 |
JZS147..RHD |
1 | ||
| Common parts | ||||
| 82671-30340 | ||||
| 82671-30350 | ||||
| 82671-30360 | ||||
| 82671-30370 | ||||
| 90119-06120 | ||||
| 90119-06310 | ||||
| 90179-06239 | ||||
| 91642-80614 | ||||

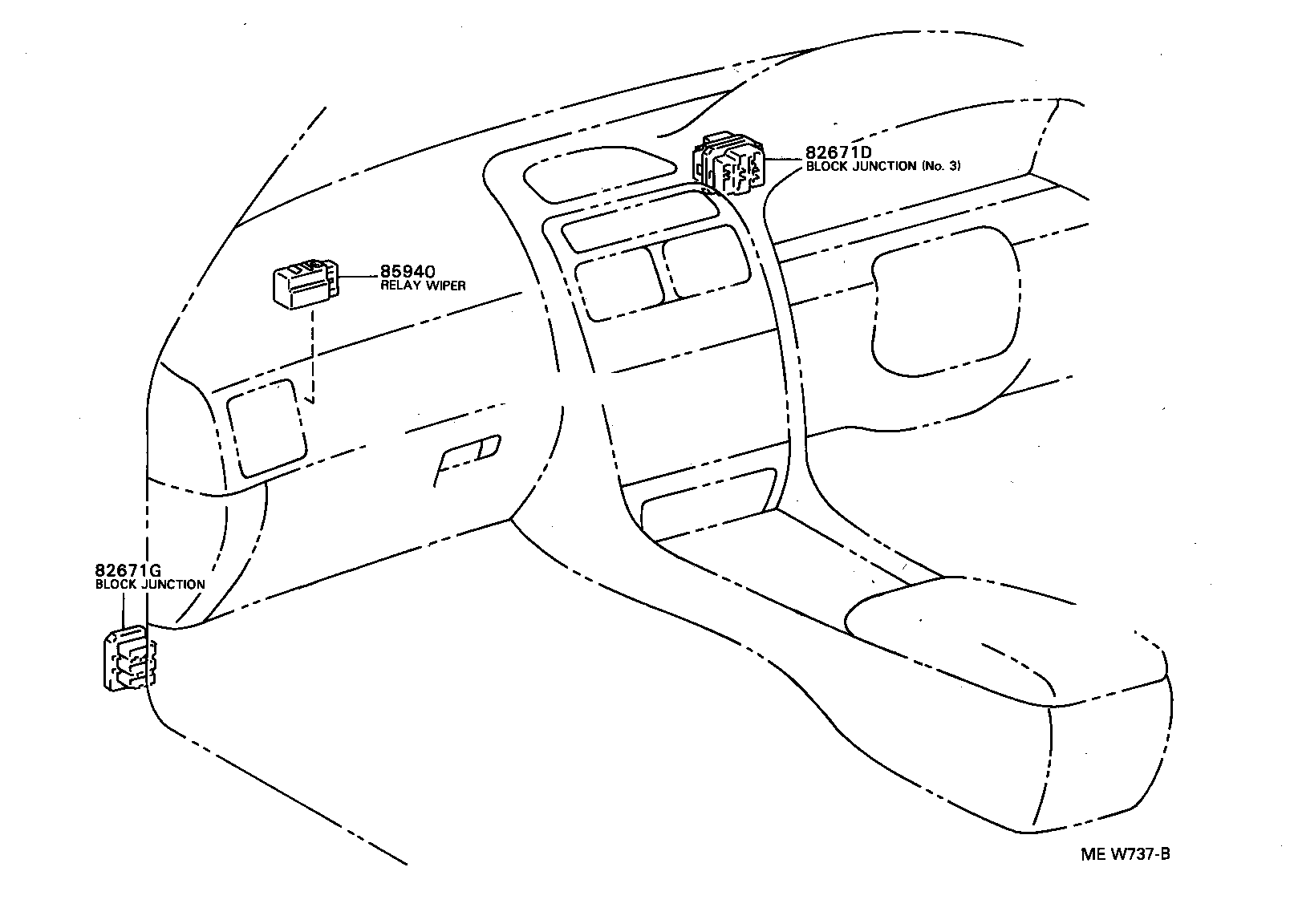

ILLUST NO. 5 OF 8(9308-9708)RHD
COWL LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82671D - BLOCK, JUNCTION | ||||
| 82671-30370 |
JZS147 3P+3P+3P+3P |
3 | ||
| 82671-30320 |
JZS147..EUR NO.3 J/B |
1 | ||
| 82671-30360 |
JZS147 4P+4P+4P |
3 | ||
| 82671-30310 |
JZS147..RHD NO.1 J/B |
1 | ||
| 82671-30350 |
JZS147..RHD 6P+6P |
1 | ||
| 82671-30340 |
JZS147..RHD 12P |
1 | ||
| 82671G - BLOCK, JUNCTION | ||||
| 82671-30330 |
JZS147..RHD |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30140 |
JZS147..RHD |
1 | ||

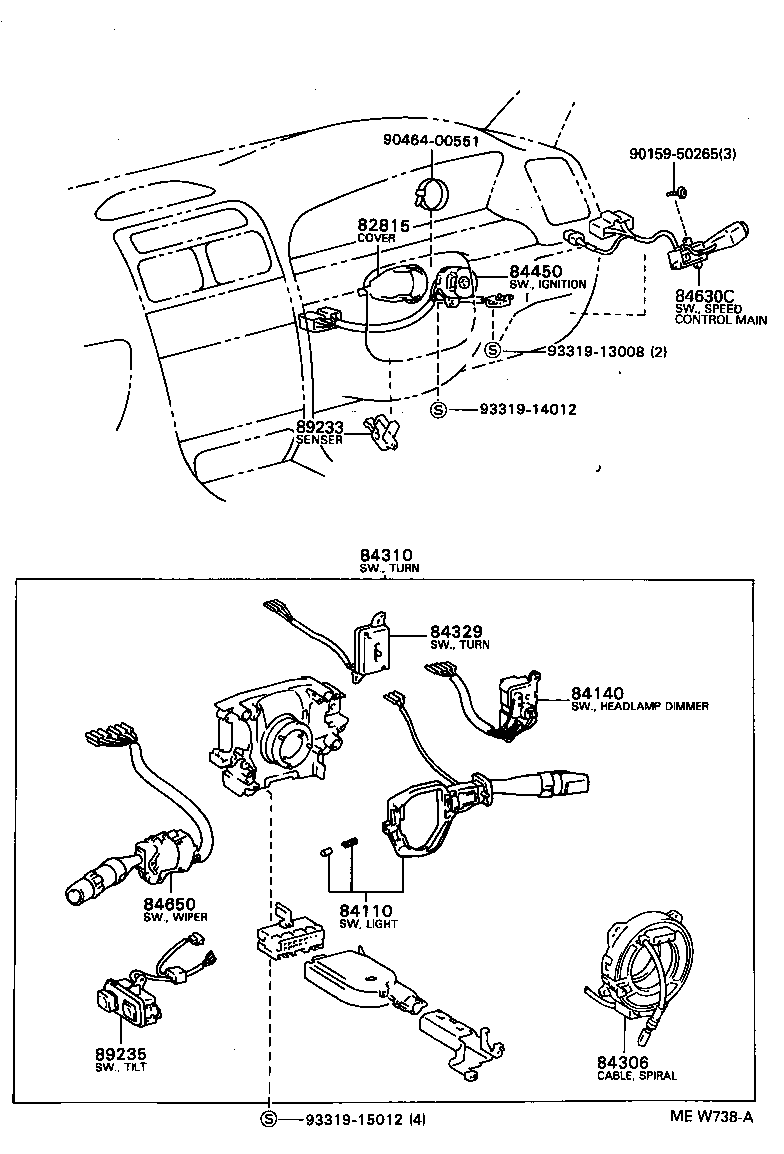

ILLUST NO. 6 OF 8(9308-9708)RHD
COMBINATION SWTICH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815 - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-50010 |
JZS147..RHD |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-30530 |
JZS147..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30140 |
JZS147..RHD |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-30060 |
JZS147 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-3A540 |
JZS147..RHD W(*HC) |
1 | ||
| 84310-3A530 |
JZS147..RHD |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-30040 |
JZS147..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-50020 |
JZS147..RHD |
1 | ||
| 84630C - SWITCH ASSY, SPEED CONTROL MAIN | ||||
| 84630-30150 |
JZS147 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30430 |
JZS147..RHD W(*HC) |
1 | ||
| 84652-30420 |
JZS147..RHD |
1 | ||
| 89233 - SENSOR, TILT POSITION | ||||
| 89233-30030 |
JZS147 |
1 | ||
| 89235 - SWITCH, TILT STEERING | ||||
| 89235-30100 |
JZS147..RHD |
1 | ||
| Common parts | ||||
| 90159-50265 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

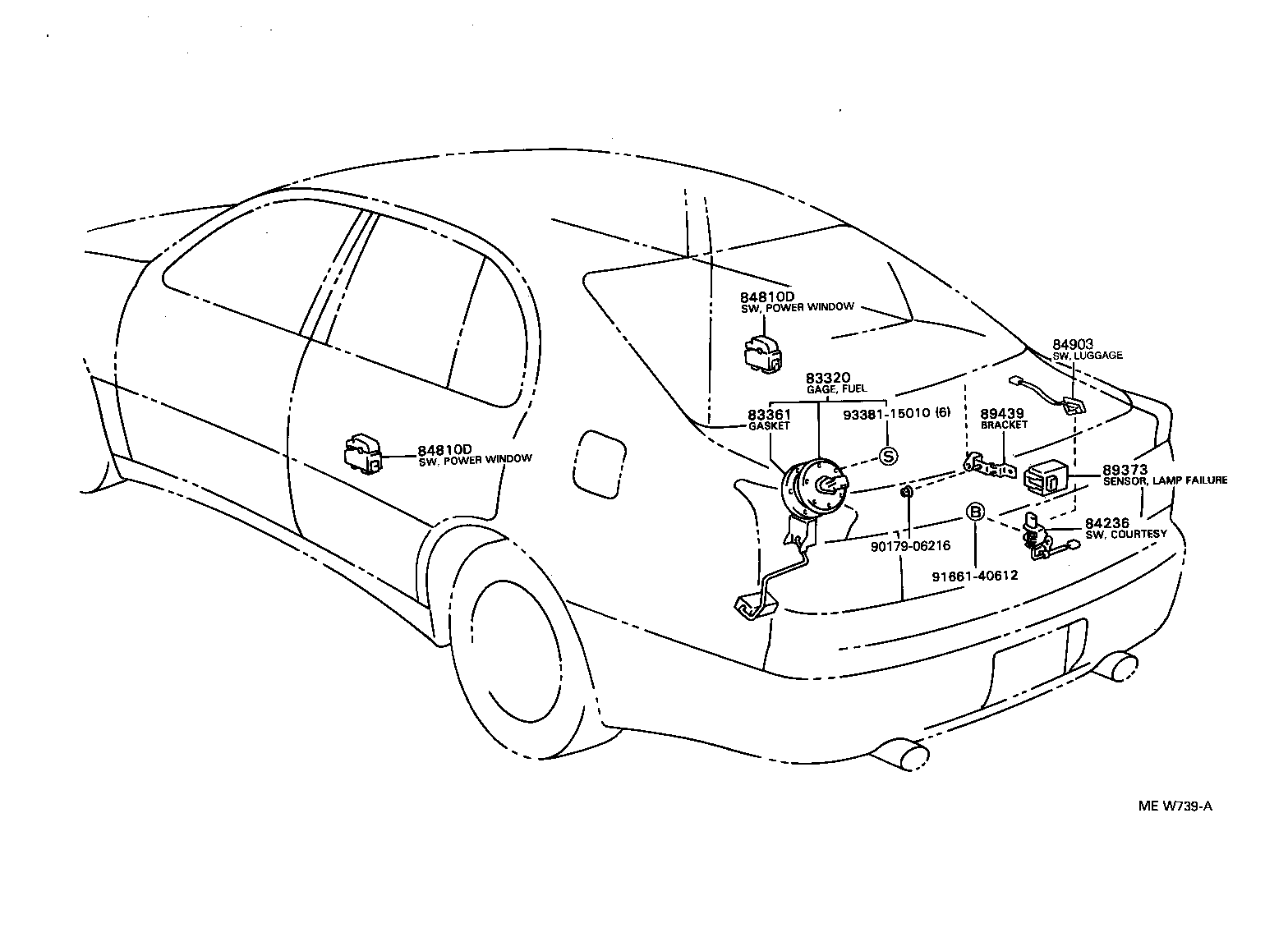

ILLUST NO. 8 OF 8(9303-9708)
REAR DOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80266 |
JZS147 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-30020 |
JZS147 |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-30140 |
JZS147 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-30210 |
JZS147 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-30210 |
JZS147 |
2 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-30020 |
JZS147 RH |
1 | ||
| 84903-30040 |
JZS147 LH |
1 | ||
| 84903-50040 |
JZS147 LUGGAGE |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32160 |
JZS147..RHD |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-30020 |
JZS147 |
1 | ||
| Common parts | ||||
| 90179-06216 | ||||
| 91661-40612 | ||||
| 93381-15010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
