JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
(9303-9708)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
JZS147..RHD 14V 2.0W,W/O SOCKET |
1 | ||
| 83119-32010 |
JZS147..EUR 14V 3.0W |
1 | ||
| 90099-53008 |
JZS147..EUR 14V 2.0W |
6 | ||
| 83109-30070 |
JZS147..RHD 14V 2.0W,W/O SOCKET |
1 | ||
| 90099-53007 |
JZS147 14V 3.0W(T6.5) |
8 | ||
| 90981-11018 |
JZS147..RHD 12V 1.2W W/O SOCKET |
20 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
JZS147..RHD 14V 2.0W,W/O SOCKET |
1 | ||
| 83119-32010 |
JZS147..EUR 14V 3.0W |
1 | ||
| 90099-53008 |
JZS147..EUR 14V 2.0W |
6 | ||
| 83109-30070 |
JZS147..RHD 14V 2.0W,W/O SOCKET |
1 | ||
| 90099-53007 |
JZS147 14V 3.0W(T6.5) |
8 | ||
| 90981-11018 |
JZS147..RHD 12V 1.2W W/O SOCKET |
20 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
JZS147..RHD BULB:1.4W |
20 | ||
| 83101-32020 |
JZS147..EUR 14V 3.0W,GREEN |
7 | ||
| 83101-32020 |
JZS147..RHD BULB:2.0W OR 3.0W |
6 | ||
| 83101-30050 |
JZS147..RHD BULB:2.0W OR 3.0W |
1 | ||
| 83101-32020 |
JZS147..RHD BULB:2.0W OR 3.0W |
6 | ||
| 83101-24010 |
JZS147..EUR 14V 3.0W,BLUE |
8 | ||
| 83101-14040 |
JZS147..RHD 12V 1.4W |
20 | ||
| 83101-30050 |
JZS147..RHD BULB:2.0W OR 3.0W |
1 | ||
| 83101-14040 |
JZS147..RHD BULB:1.4W |
20 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
JZS147..RHD BULB:1.4W |
20 | ||
| 83101-32020 |
JZS147..EUR 14V 3.0W,GREEN |
7 | ||
| 83101-32020 |
JZS147..RHD BULB:2.0W OR 3.0W |
6 | ||
| 83101-30050 |
JZS147..RHD BULB:2.0W OR 3.0W |
1 | ||
| 83101-32020 |
JZS147..RHD BULB:2.0W OR 3.0W |
6 | ||
| 83101-24010 |
JZS147..EUR 14V 3.0W,BLUE |
8 | ||
| 83101-14040 |
JZS147..RHD 12V 1.4W |
20 | ||
| 83101-30050 |
JZS147..RHD BULB:2.0W OR 3.0W |
1 | ||
| 83101-14040 |
JZS147..RHD BULB:1.4W |
20 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83149-3F150 |
JZS147..RHD UP |
1 | ||
| 83149-3F170 |
JZS147..RHD DOWN |
1 | ||
| 83149-3F410 |
JZS147..RHD UP |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83149-3F150 |
JZS147..RHD UP |
1 | ||
| 83149-3F170 |
JZS147..RHD DOWN |
1 | ||
| 83149-3F410 |
JZS147..RHD UP |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-30080 |
JZS147..RHD SINGAPORE SPEC OR HONG KONG SPEC |
1 | ||
| 83220-30080 |
JZS147..RHD SINGAPORE SPEC |
1 | ||
| 83110-3F240 |
JZS147..RHD |
1 | ||
| 83110-3F241 |
JZS147..RHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3F110 |
JZS147..RHD |
1 | ||
| 83132-3F370 |
JZS147..RHD |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-3F150 |
JZS147..RHD |
1 | ||
| 83132B - CASE, COMBINATION METER NO.3 | ||||
| 83132-3F170 |
JZS147..RHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-3A190 |
JZS147..RHD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-3A770 |
JZS147..RHD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24040 |
JZS147 |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83149-3F230 |
JZS147..RHD ODO & TRIP |
1 | ||
| 83149-3F210 |
JZS147..RHD MAIN |
1 | ||
| 83864-30250 |
JZS147..RHD SINGAPORE SPEC,ODO & TRIP |
1 | ||
| 83864-30250 |
JZS147..RHD SINGAPORE SPEC OR HONG KONG SPEC,ODO & TRIP |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83149-3F230 |
JZS147..RHD ODO & TRIP |
1 | ||
| 83149-3F210 |
JZS147..RHD MAIN |
1 | ||
| 83864-30250 |
JZS147..RHD SINGAPORE SPEC,ODO & TRIP |
1 | ||
| 83864-30250 |
JZS147..RHD SINGAPORE SPEC OR HONG KONG SPEC,ODO & TRIP |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-3A210 |
JZS147..RHD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-3A030 |
JZS147..RHD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30540 |
JZS147 |
1 | ||
| Common parts | ||||
| 83194-87501 | ||||
| 90099-00225 | ||||
| 90099-00929 | ||||
| 91651-40820 | ||||
| 93540-13012 | ||||
| 93567-55016 | ||||

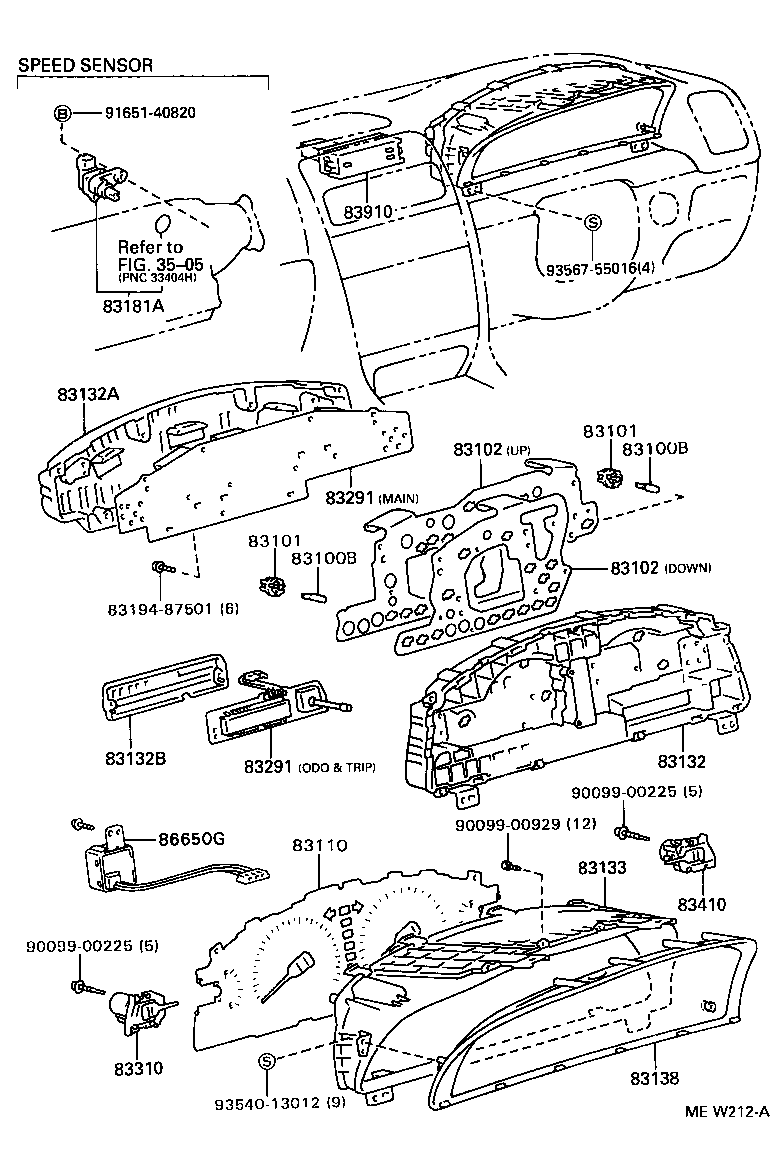

| Linked diagrams | ||||
| 3505 | ||||
