JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
ILLUST NO.10 OF11(9303-9708)
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82988 - WIRE, AIR BAG REPAIR | ||||
| 82988-24010 |
JZS147 |
1 | ||
| Common parts | ||||
| 82988-24010 | ||||

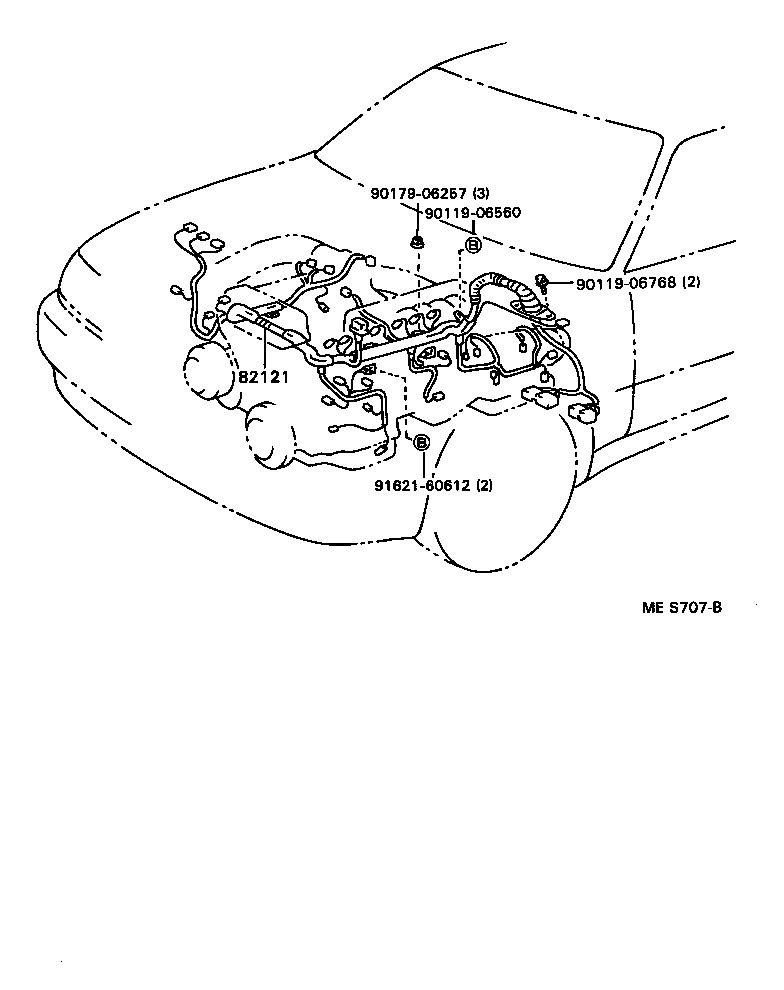

ILLUST NO. 2 OF11(9303-9708)
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3A060 |
JZS147 |
1 | ||
| 82121-3A090 |
JZS147..RHD |
1 | ||
| 82121-3A091 |
JZS147..RHD |
1 | ||
| Common parts | ||||
| 90119-06560 | ||||
| 90119-06768 | ||||
| 90179-06257 | ||||
| 91621-60612 | ||||

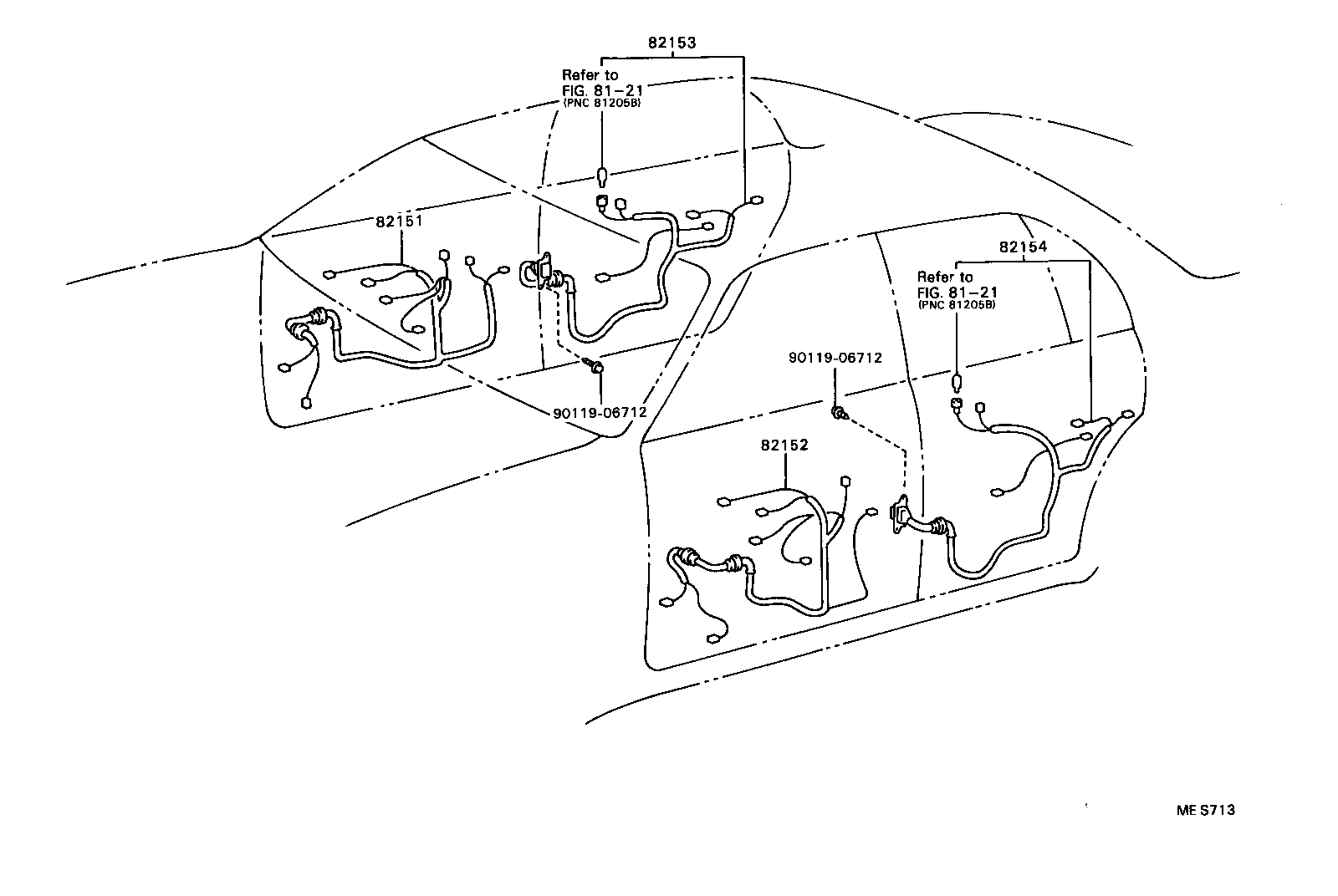

ILLUST NO. 6 OF11(9303-9708)
DOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-3A011 |
JZS147..RHD |
1 | ||
| 82151-3A010 |
JZS147..RHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-30630 |
JZS147..RHD |
1 | ||
| 82152-30631 |
JZS147..RHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30350 |
JZS147 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30240 |
JZS147 |
1 | ||
| Common parts | ||||
| 90119-06712 | ||||
| Linked diagrams | ||||
| 8121 | ||||

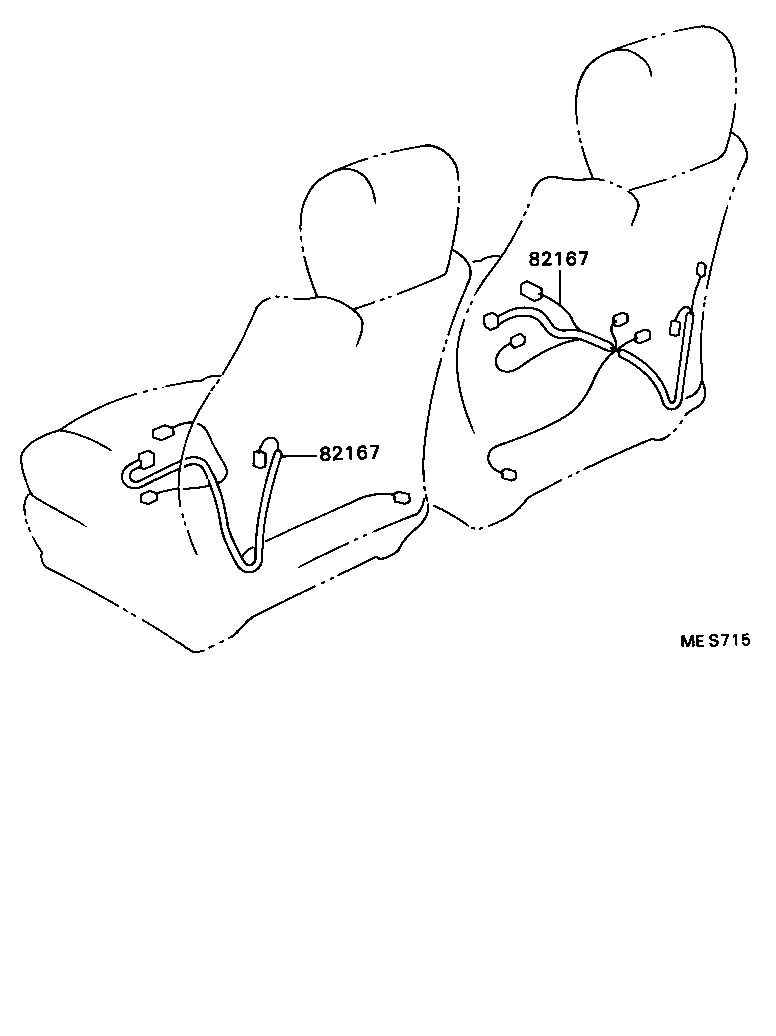

ILLUST NO. 8 OF11(9303-9708)
SEAT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30800 |
JZS147 LH |
1 | ||
| 82167-30840 |
JZS147 RH |
1 | ||
| 82167-30831 |
JZS147..EUR W(SEAT HEATER),LH |
1 | ||
| 82167-30851 |
JZS147..EUR W(SEAT HEATER),RH |
1 | ||
| 82167-30841 |
JZS147 RH |
1 | ||
| 82167-30801 |
JZS147 LH |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30800 |
JZS147 LH |
1 | ||
| 82167-30840 |
JZS147 RH |
1 | ||
| 82167-30831 |
JZS147..EUR W(SEAT HEATER),LH |
1 | ||
| 82167-30851 |
JZS147..EUR W(SEAT HEATER),RH |
1 | ||
| 82167-30841 |
JZS147 RH |
1 | ||
| 82167-30801 |
JZS147 LH |
1 | ||

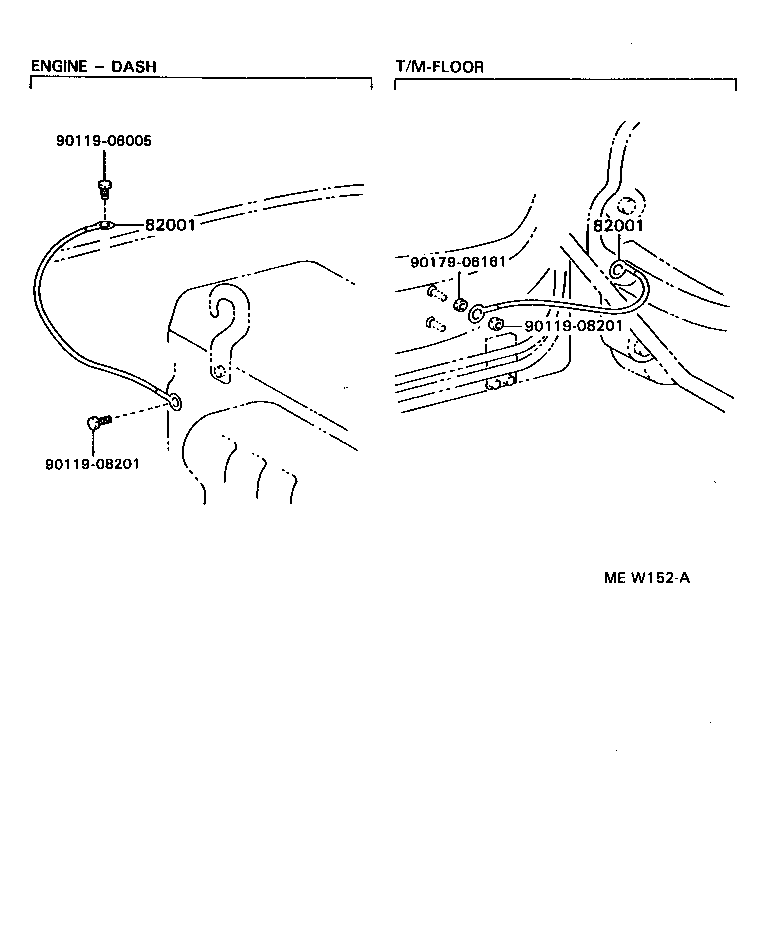

ILLUST NO. 9 OF11(9303-9708)
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07338 |
JZS147 E/G-DASH |
1 | ||
| 90980-07354 |
JZS147 T/M-FLOOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07338 |
JZS147 E/G-DASH |
1 | ||
| 90980-07354 |
JZS147 T/M-FLOOR |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08201 | ||||
| 90179-06161 | ||||

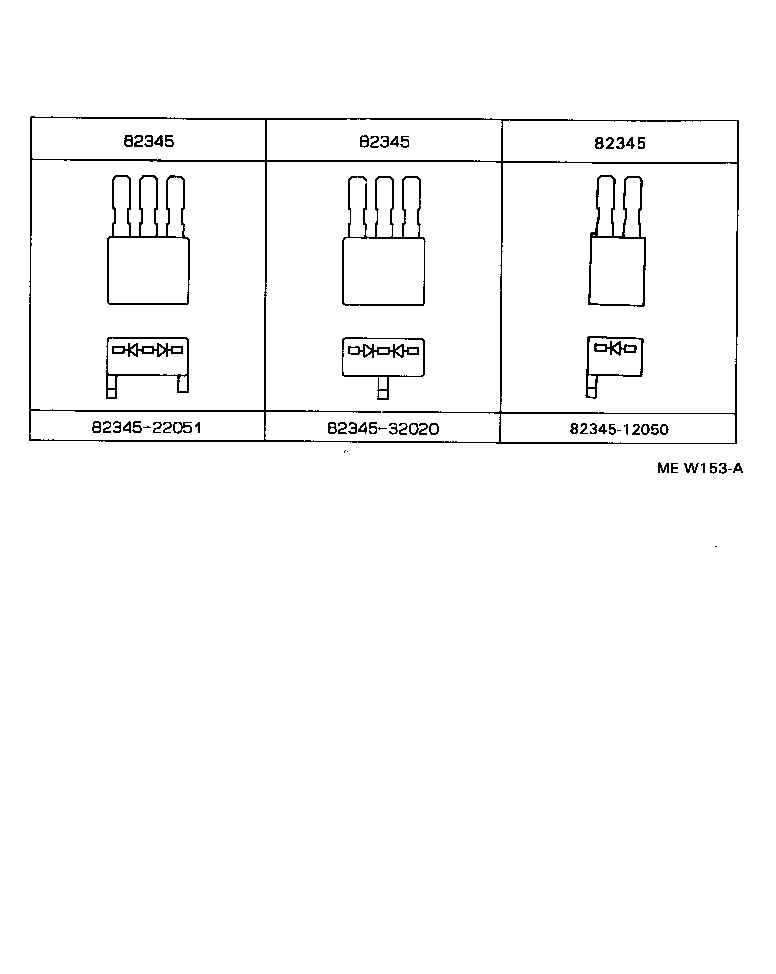

ILLUST NO.11 OF11(9303-9708)
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-32020 |
JZS147..RHD *89 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
JZS147..RHD *89 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
JZS147..RHD *89 |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||
| 82345-22051 | ||||
| 82345-32020 | ||||

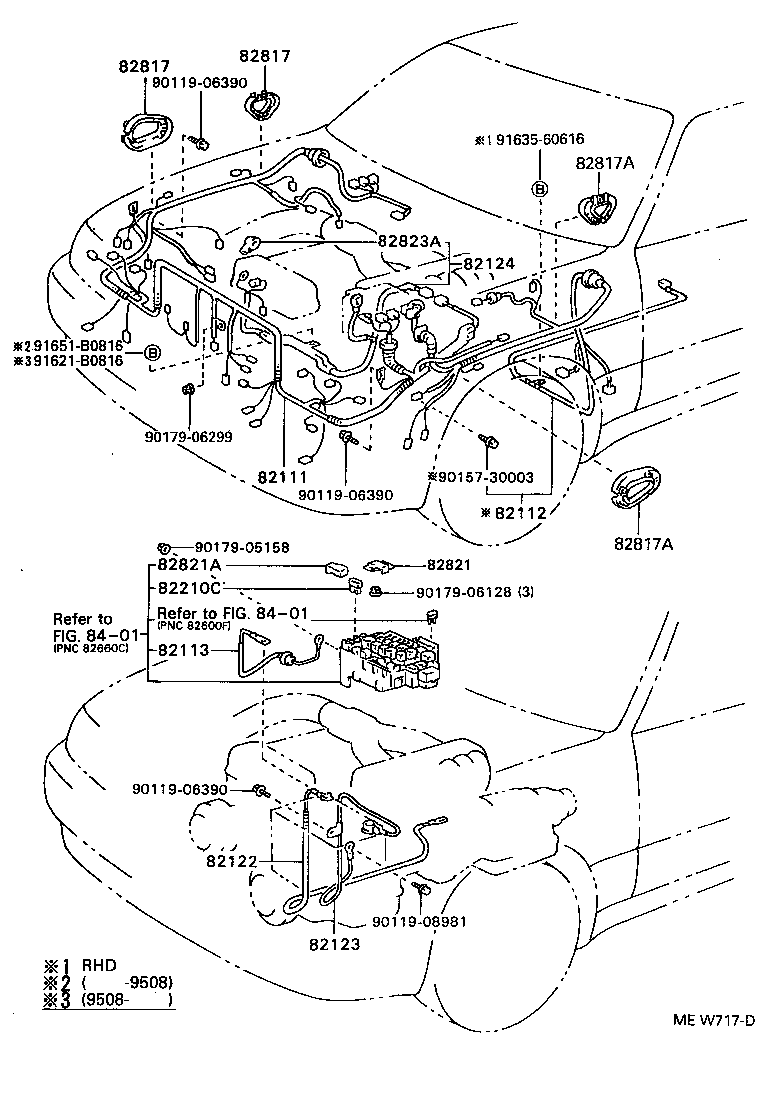

ILLUST NO. 1 OF11(9303-9708)
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3F690 |
JZS147..RHD |
1 | ||
| 82111-3F691 |
JZS147..RHD |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-30650 |
JZS147..RHD W(*HC) |
1 | ||
| 82112-30641 |
JZS147..RHD |
1 | ||
| 82112-30651 |
JZS147..RHD W(*HC) |
1 | ||
| 82112-30640 |
JZS147..RHD |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-30400 |
JZS147..RHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30371 |
JZS147 |
1 | ||
| 82122-30480 |
JZS147 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30210 |
JZS147 |
1 | ||
| 82123-30200 |
JZS147 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-30121 |
JZS147..RHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
JZS147..RHD 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08188 |
JZS147..RHD 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
JZS147 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08270 |
JZS147 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08227 |
JZS147 50A,TERM.:FEMALE,RED |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3F090 |
JZS147..EUR FRONT APRON RH |
1 | ||
| 82817-3F090 |
JZS147..RHD FRONT APRON LH |
1 | ||
| 82817-3F240 |
JZS147..EUR REAR APRON RH |
1 | ||
| 82817-3F210 |
JZS147 FENDER GUSSET RH |
1 | ||
| 82817-3F240 |
JZS147..RHD REAR APRON LH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3F090 |
JZS147..EUR FRONT APRON RH |
1 | ||
| 82817-3F090 |
JZS147..RHD FRONT APRON LH |
1 | ||
| 82817-3F240 |
JZS147..EUR REAR APRON RH |
1 | ||
| 82817-3F210 |
JZS147 FENDER GUSSET RH |
1 | ||
| 82817-3F240 |
JZS147..RHD REAR APRON LH |
1 | ||
| 82821 - RETAINER, HEADLAMP HARNESS | ||||
| 82821-35040 |
JZS147..EUR |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-22070 |
JZS147 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08981 | ||||
| 90157-30003 | ||||
| 90179-05158 | ||||
| 90179-06128 | ||||
| 90179-06299 | ||||
| 91621-B0816 | ||||
| 91635-60616 | ||||
| 91651-B0816 | ||||
| Linked diagrams | ||||
| 8401 | ||||

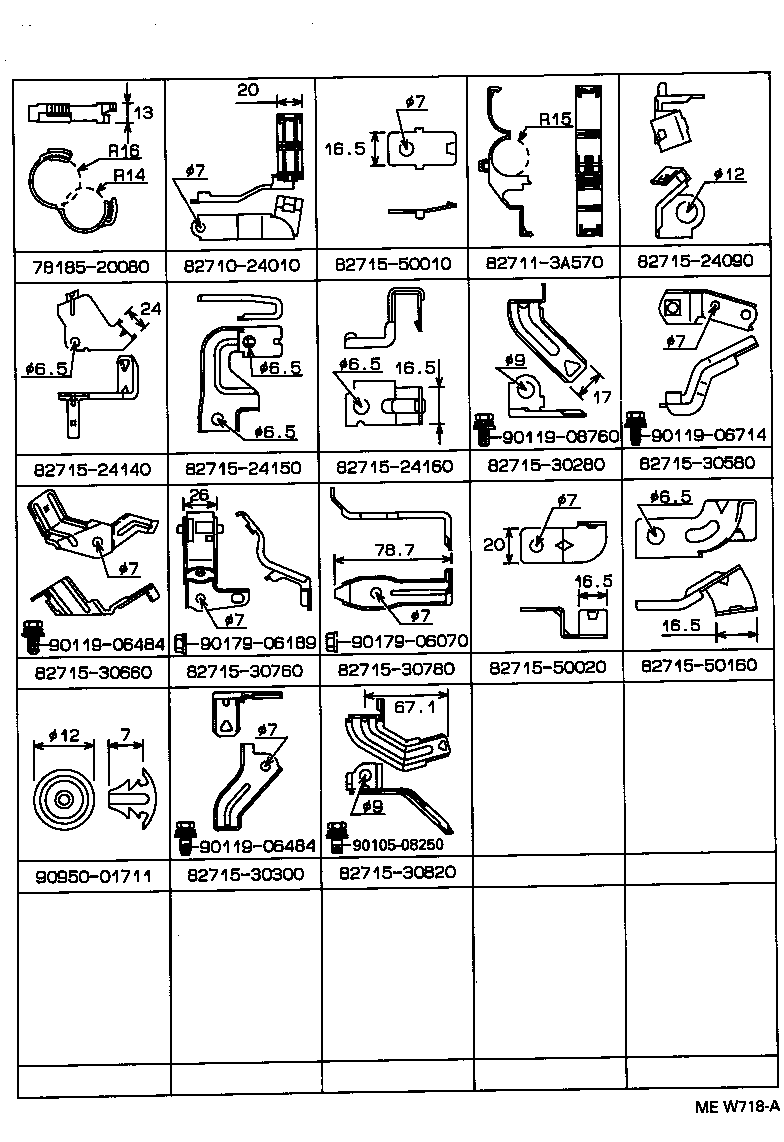

ILLUST NO. 3 OF11(9303-9708)
ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 78185-20080 | ||||
| 82710-24010 | ||||
| 82711-3A570 | ||||
| 82715-24090 | ||||
| 82715-24140 | ||||
| 82715-24150 | ||||
| 82715-24160 | ||||
| 82715-30280 | ||||
| 82715-30300 | ||||
| 82715-30580 | ||||
| 82715-30660 | ||||
| 82715-30760 | ||||
| 82715-30780 | ||||
| 82715-30820 | ||||
| 82715-50010 | ||||
| 82715-50020 | ||||
| 82715-50160 | ||||
| 90105-08250 | ||||
| 90119-06484 | ||||
| 90119-06714 | ||||
| 90119-08760 | ||||
| 90179-06070 | ||||
| 90179-06189 | ||||
| 90950-01711 | ||||

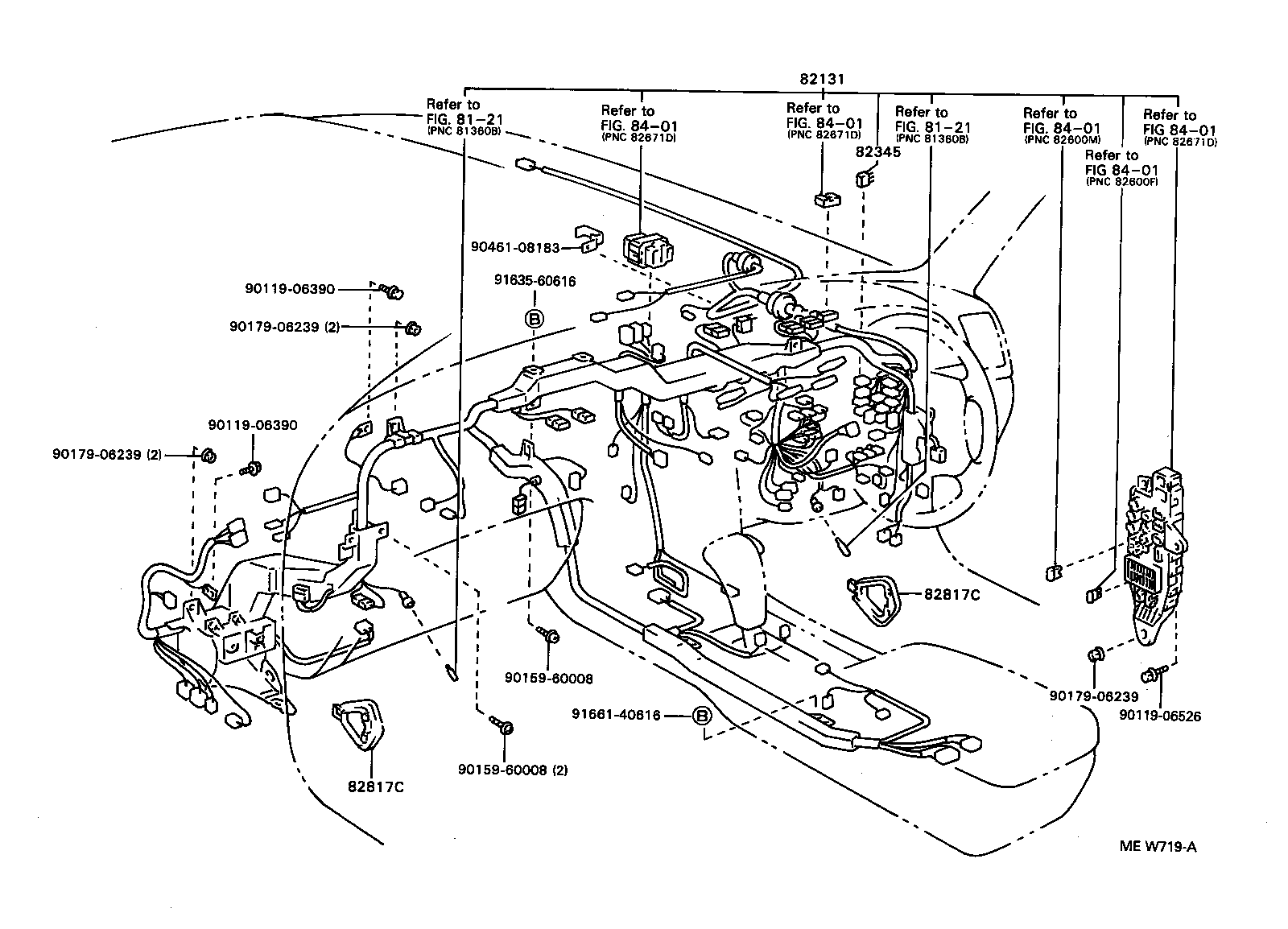

ILLUST NO. 4 OF11(9308-9708)RHD
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-31840 |
JZS147 |
1 | ||
| 82131-3U400 |
JZS147..RHD W(*HC) |
1 | ||
| 82131-3U410 |
JZS147..RHD W(SEAT HEATER) |
1 | ||
| 82131-3U391 |
JZS147..RHD |
1 | ||
| 82131-3U401 |
JZS147..RHD W(*HC) |
1 | ||
| 82131-3U420 |
JZS147..RHD W(*HC & SEAT HEATER) |
1 | ||
| 82131-3U390 |
JZS147..RHD |
1 | ||
| 82131-3U411 |
JZS147..RHD W(SEAT HEATER) |
1 | ||
| 82131-3U421 |
JZS147..RHD W(*HC & SEAT HEATER) |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
JZS147..RHD *89 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-3F350 |
JZS147 |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-3F350 |
JZS147 |
2 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06526 | ||||
| 90159-60008 | ||||
| 90179-06239 | ||||
| 90461-08183 | ||||
| 91635-60616 | ||||
| 91661-40616 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||

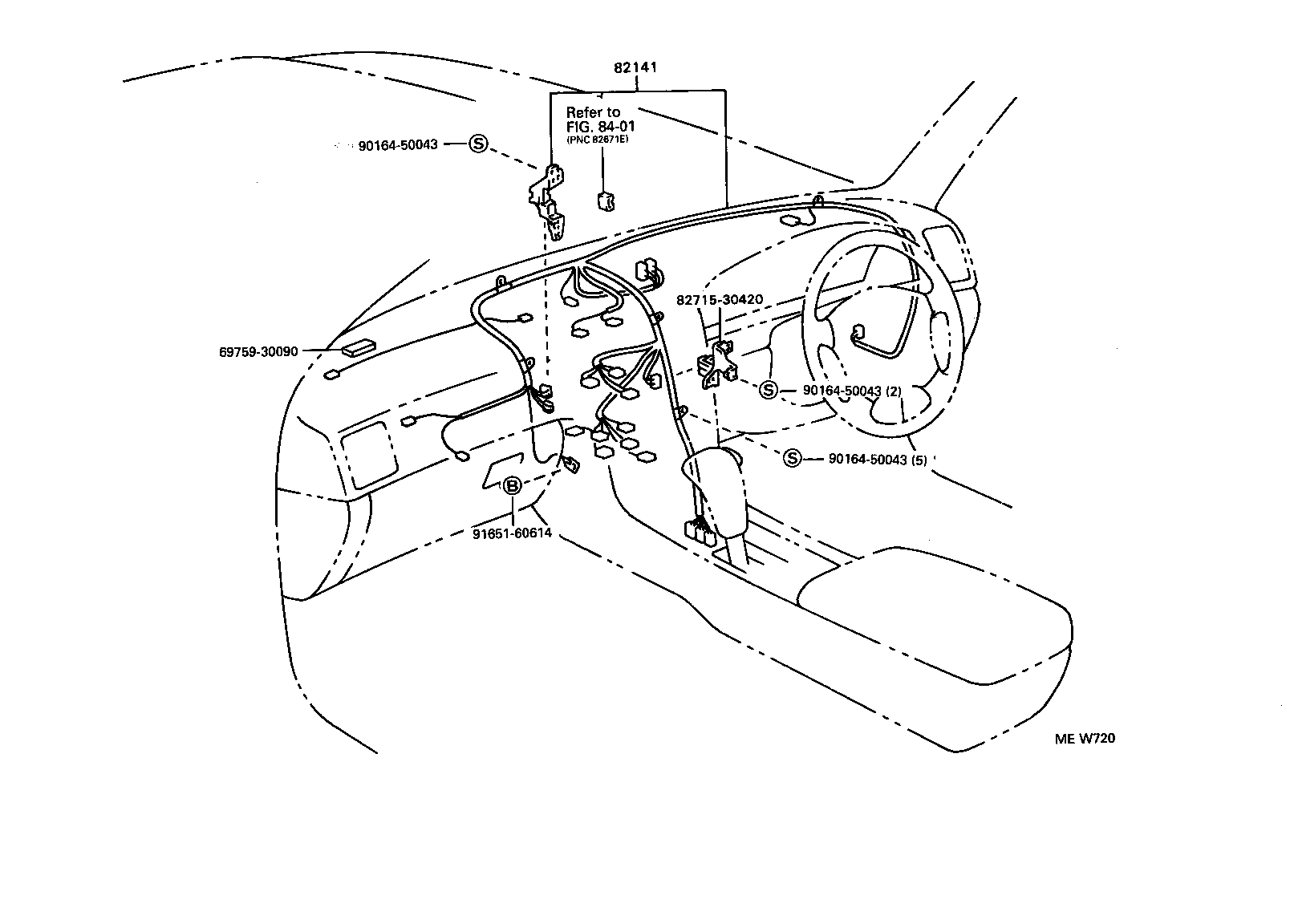

ILLUST NO. 5 OF11(9308-9708)RHD
INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3A620 |
JZS147..RHD |
1 | ||
| Common parts | ||||
| 69759-30090 | ||||
| 82715-30420 | ||||
| 90164-50043 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

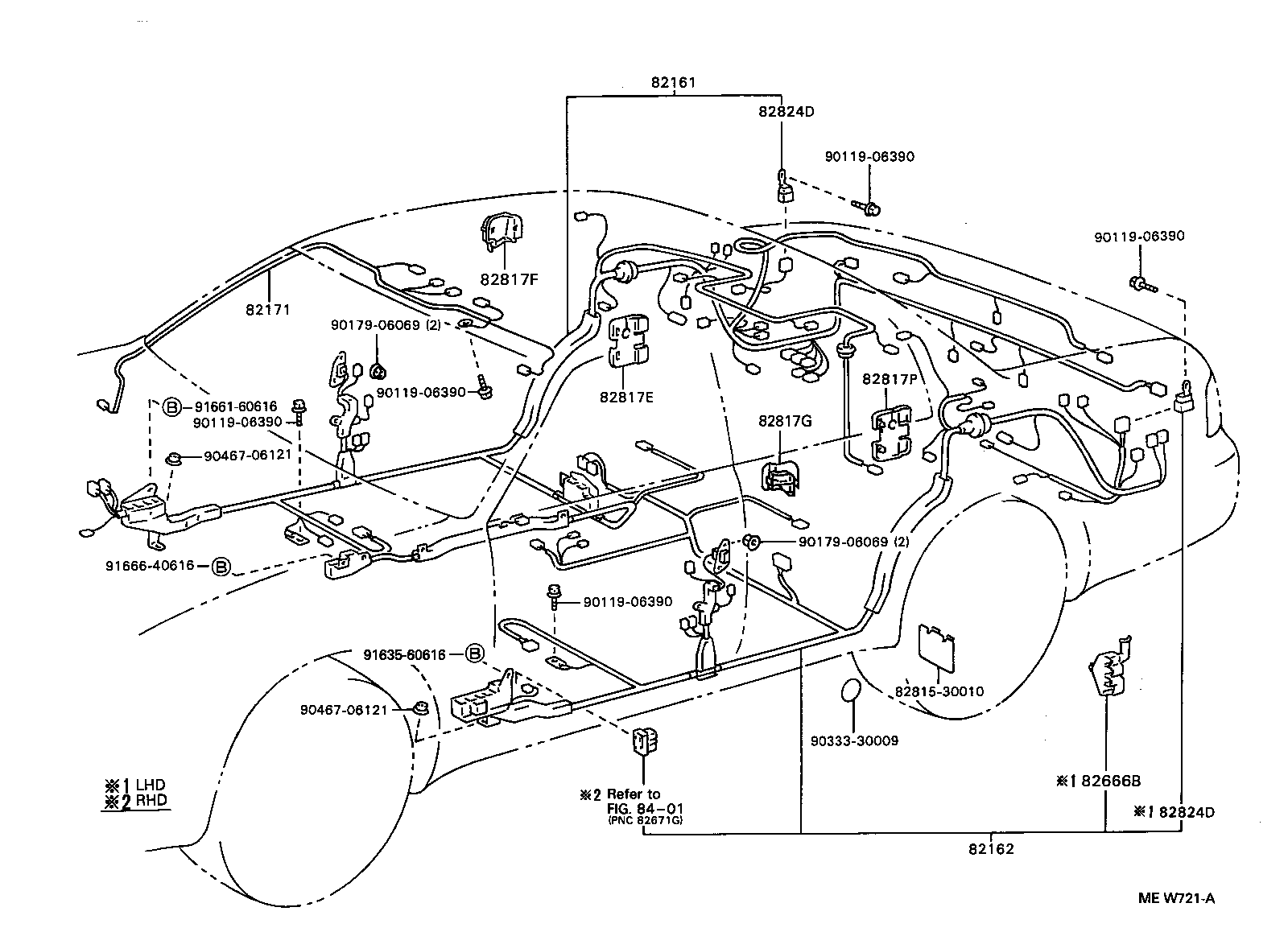

ILLUST NO. 7 OF11(9303-9708)
FLOOR & ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-3F170 |
JZS147..RHD |
1 | ||
| 82161-3F780 |
JZS147..RHD FABRIC SEAT SPEC (UK) |
1 | ||
| 82161-3F171 |
JZS147..RHD |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-3A500 |
JZS147..RHD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30650 |
JZS147..RHD W(*MR) |
1 | ||
| 82171-30651 |
JZS147..RHD W(*MR) |
1 | ||
| 82171-30640 |
JZS147..RHD |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-3F420 |
JZS147 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-3K020 |
JZS147 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-3K030 |
JZS147 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-3F430 |
JZS147 |
1 | ||
| Common parts | ||||
| 82815-30010 | ||||
| 90119-06390 | ||||
| 90179-06069 | ||||
| 90333-30009 | ||||
| 90467-06121 | ||||
| 91635-60616 | ||||
| 91661-60616 | ||||
| 91666-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
