JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9303-9708)

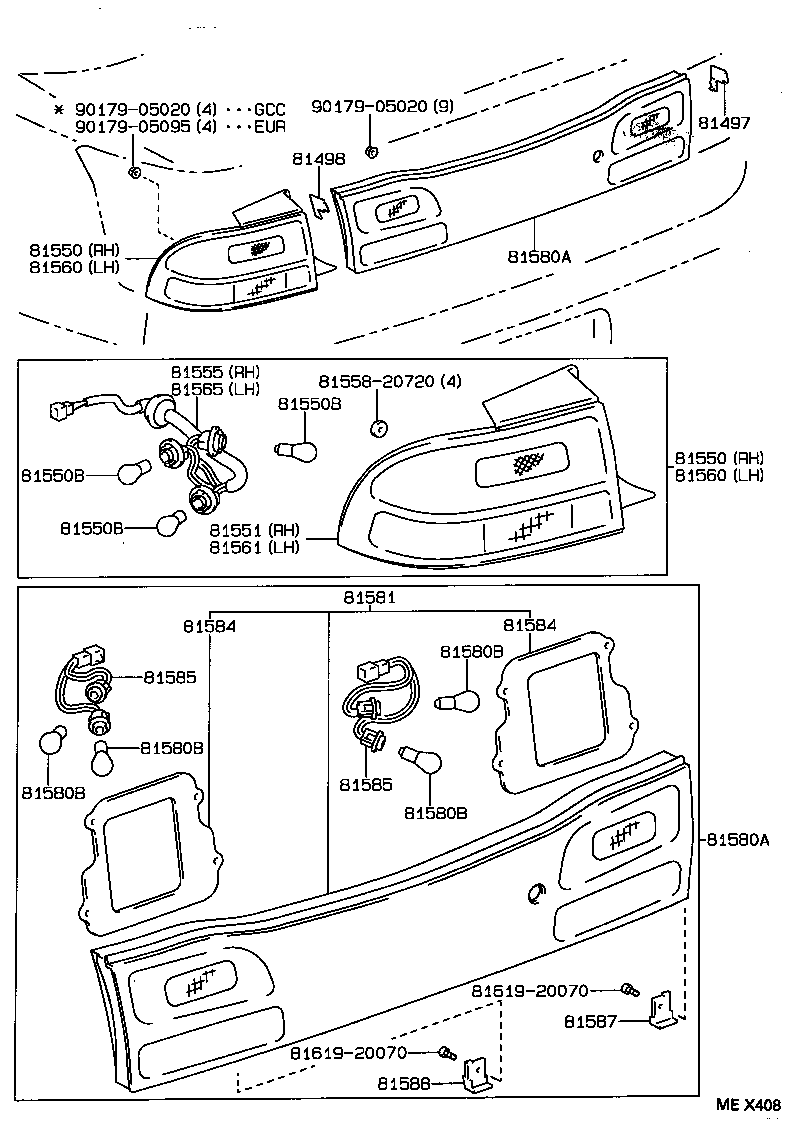

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-30040 |
JZS147 |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-30040 |
JZS147 |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-30700 |
JZS147..EUR |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-30700 |
JZS147..EUR |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
JZS147..EUR 12V 21W |
4 | ||
| 99132-12050 |
JZS147..EUR 12V 5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
JZS147..EUR 12V 21W |
4 | ||
| 99132-12050 |
JZS147..EUR 12V 5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
JZS147..EUR 12V 21W |
4 | ||
| 99132-12050 |
JZS147..EUR 12V 5W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-30700 |
JZS147..EUR |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-30630 |
JZS147 |
1 | ||
| 81555-30700 |
JZS147..EUR |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-30700 |
JZS147..EUR |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-30700 |
JZS147..EUR |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-30700 |
JZS147..EUR |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-30630 |
JZS147 |
1 | ||
| 81555-30700 |
JZS147..EUR |
1 | ||
| 81580A - LAMP ASSY, REAR | ||||
| 81580-30060 |
JZS147..EUR |
1 | ||
| 81580A - LAMP ASSY, REAR | ||||
| 81580-30060 |
JZS147..EUR |
1 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 99132-11210 |
JZS147..EUR 12V 21W |
4 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 99132-11210 |
JZS147..EUR 12V 21W |
4 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 99132-11210 |
JZS147..EUR 12V 21W |
4 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 99132-11210 |
JZS147..EUR 12V 21W |
4 | ||
| 81581 - LENS, REAR LAMP | ||||
| 81581-30060 |
JZS147..EUR |
1 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81584-30030 |
JZS147 |
2 | ||
| 81584-30030 |
JZS147..EUR |
2 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81584-30030 |
JZS147 |
2 | ||
| 81584-30030 |
JZS147..EUR |
2 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81586-30030 |
JZS147 LH |
1 | ||
| 81586-30060 |
JZS147..EUR LH |
1 | ||
| 81585-30030 |
JZS147 RH |
1 | ||
| 81585-30060 |
JZS147..EUR RH |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81586-30030 |
JZS147 LH |
1 | ||
| 81586-30060 |
JZS147..EUR LH |
1 | ||
| 81585-30030 |
JZS147 RH |
1 | ||
| 81585-30060 |
JZS147..EUR RH |
1 | ||
| 81587 - PROTECTOR, REAR LAMP, RH | ||||
| 81587-30030 |
JZS147 |
1 | ||
| 81588 - PROTECTOR, REAR LAMP, LH | ||||
| 81588-30030 |
JZS147 |
1 | ||
| Common parts | ||||
| 81558-20720 | ||||
| 81619-20070 | ||||
| 90179-05020 | ||||
| 90179-05095 | ||||
