JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9303-9708)

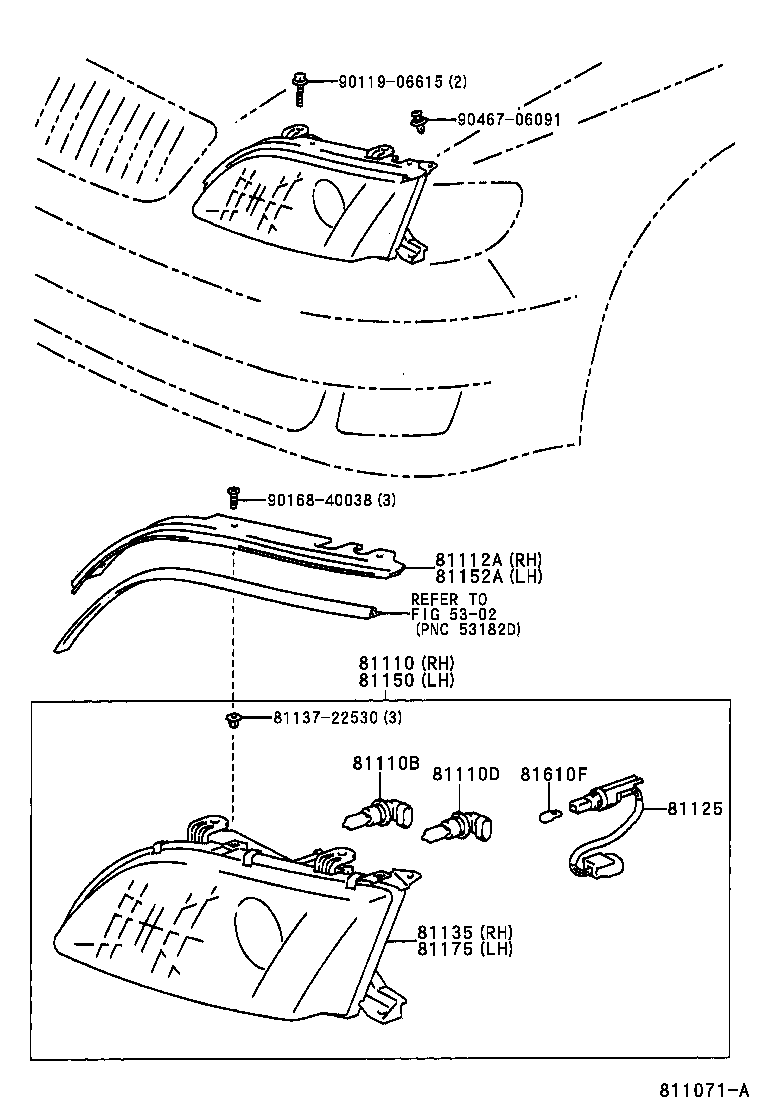

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81120-3A242 |
JZS147..RHD |
1 | ||
| 81120-3A240 |
JZS147..RHD |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
JZS147 12V 65W |
2 | ||
| 90981-13046 |
JZS147 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13047 |
JZS147 12V 51W,HALOGEN |
2 | ||
| 90080-81040 |
JZS147 12V 51W |
2 | ||
| 81112A - RIM, HEADLAMP, RH | ||||
| 81116-3A210 |
JZS147 |
1 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-3A210 |
JZS147 |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-3A240 |
JZS147..RHD |
1 | ||
| 81130-3A242 |
JZS147..RHD |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81160-3A242 |
JZS147..RHD |
1 | ||
| 81160-3A240 |
JZS147..RHD |
1 | ||
| 81152A - RIM, HEADLAMP, LH | ||||
| 81156-3A210 |
JZS147 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-3A240 |
JZS147..RHD |
1 | ||
| 81170-3A242 |
JZS147..RHD |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90083-81004 |
JZS147 12V 5W |
2 | ||
| 99132-12050 |
JZS147 12V 5W |
2 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90119-06615 | ||||
| 90168-40038 | ||||
| 90467-06091 | ||||
| Linked diagrams | ||||
| 5302 | ||||
