JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )RHD

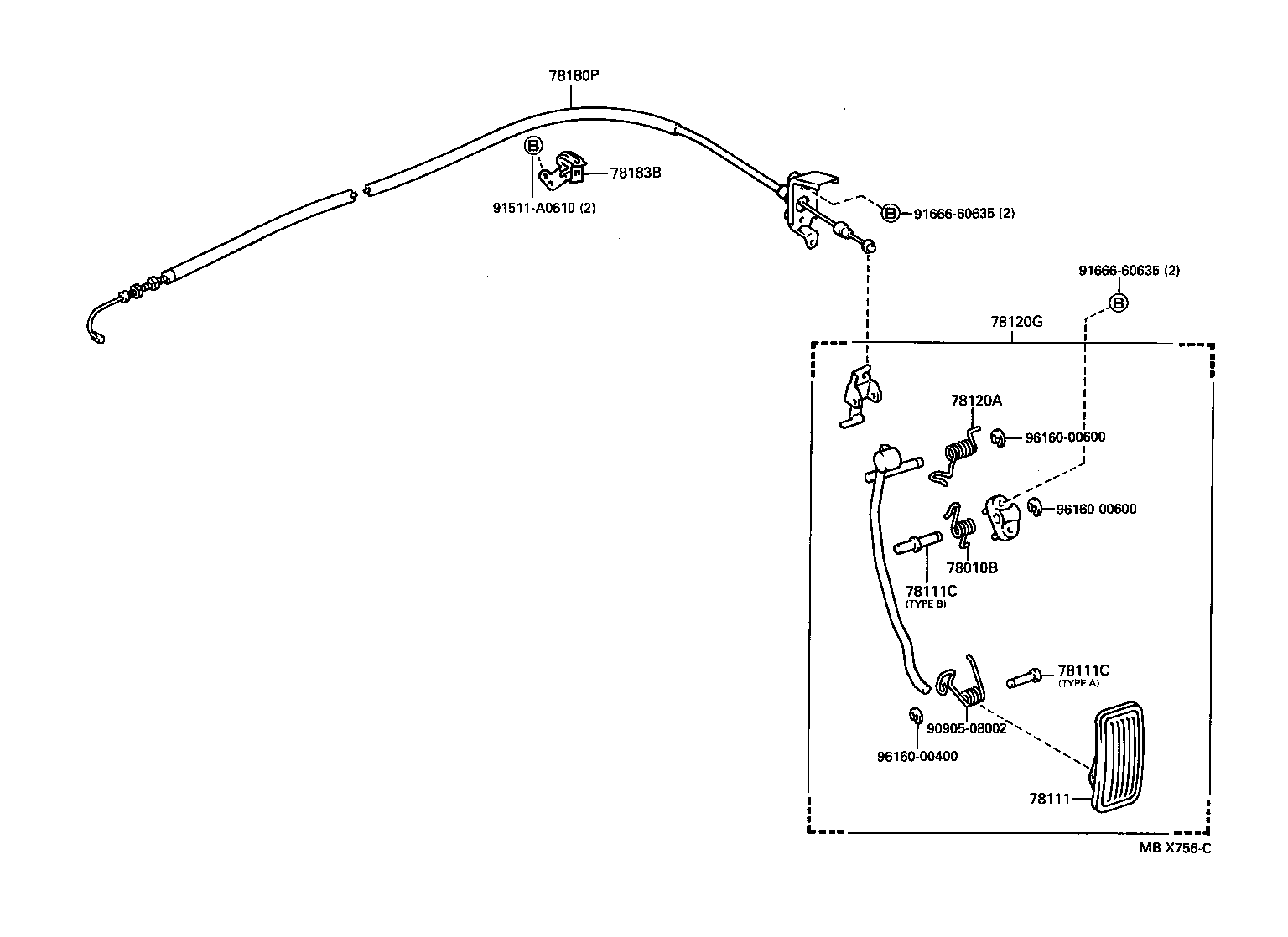

Click highlighted areas on diagram

diagram 78010B 78111 78111C 78111C 78120A 78120G 78180P 78183B 9090508002 91511A0610 9166660635 9166660635 9616000400 9616000600 9616000600
Part # Description Qty Price
78010B - SPRING, TORSION (FOR ACCELERATOR LINK)
90508-18103

JZS147

 1
78111 - PEDAL, ACCELERATOR
78111-30100

JZS147..EUR

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-08116

JZS147

TYPE B

 1
90249-05043

JZS147..EUR

TYPE A

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-08116

JZS147

TYPE B

 1
90249-05043

JZS147..EUR

TYPE A

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90508-29022

JZS147..EUR

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-30760

JZS147..RHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-3A320

JZS147..RHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-30110

JZS147..RHD

 1
Common parts
90905-08002
91511-A0610
91666-60635
96160-00400
96160-00600
