JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
(9308- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62041 - PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER RH | ||||
| 62041-30090A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 62041-30092G0 |
JZS147 SPRUCE,TRIM6# |
1 | ||
| 62041-30092B0 |
JZS147 MD.GRAY,TRIM1# |
1 | ||
| 62041-30090B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 62041-30092A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 62041-30090G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 62042 - PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER LH | ||||
| 62042-30092B0 |
JZS147 MD.GRAY,TRIM1# |
1 | ||
| 62042-30090B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 62042-30090A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 62042-30092G0 |
JZS147 SPRUCE,TRIM6# |
1 | ||
| 62042-30090G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 62042-30092A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62117-30070B0 |
JZS147..RHD GRAY,TRIM1# |
1 | ||
| 62117-30070G0 |
JZS147..RHD LI.SPRUCE,TRIM6# |
1 | ||
| 62117-30070A0 |
JZS147..RHD IVORY,TRIM0# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-0501501 |
JZS147 BLACK,BLACK,TRIM0#,1#,6# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-0803101 |
JZS147 BLACK,BLACK,TRIM0#,1#,6# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-30150G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 62210-30150A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 62210-30150B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-30150G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 62220-30150B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 62220-30150A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-30200E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 62311-30200B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 62311-30200G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-30190B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 62312-30190E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 62312-30190G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-30120E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 62331-30120G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 62331-30120B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-30120G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 62332-30120E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 62332-30120B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 62381 - WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH | ||||
| 62381-30100 |
JZS147 |
1 | ||
| 62382 - WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH | ||||
| 62382-30100 |
JZS147 |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62470-30370A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 62470-30370G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 62470-30370B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62480-30330A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 62480-30330B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 62480-30330G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 67867F - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-50020 |
JZS147 |
1 | ||
| 67868F - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-50020 |
JZS147 |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-30050 |
JZS147 |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-30060 |
JZS147 |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-30190G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 67913-30190B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 67913-30190A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-30190A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 67914-30190B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 67914-30190G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-30040 |
JZS147 |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67916-30040 |
JZS147 |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-30140A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 67917-30140B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 67917-30140G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-30120B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 67918-30120G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 67918-30120A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 67771-16170 | ||||
| 67771-32110 | ||||
| 67771-89104 | ||||
| 90467-10011 | ||||
| 90467-10147 | ||||
| 90468-05077 | ||||
| 90468-06086 | ||||
| 90468-06087 | ||||

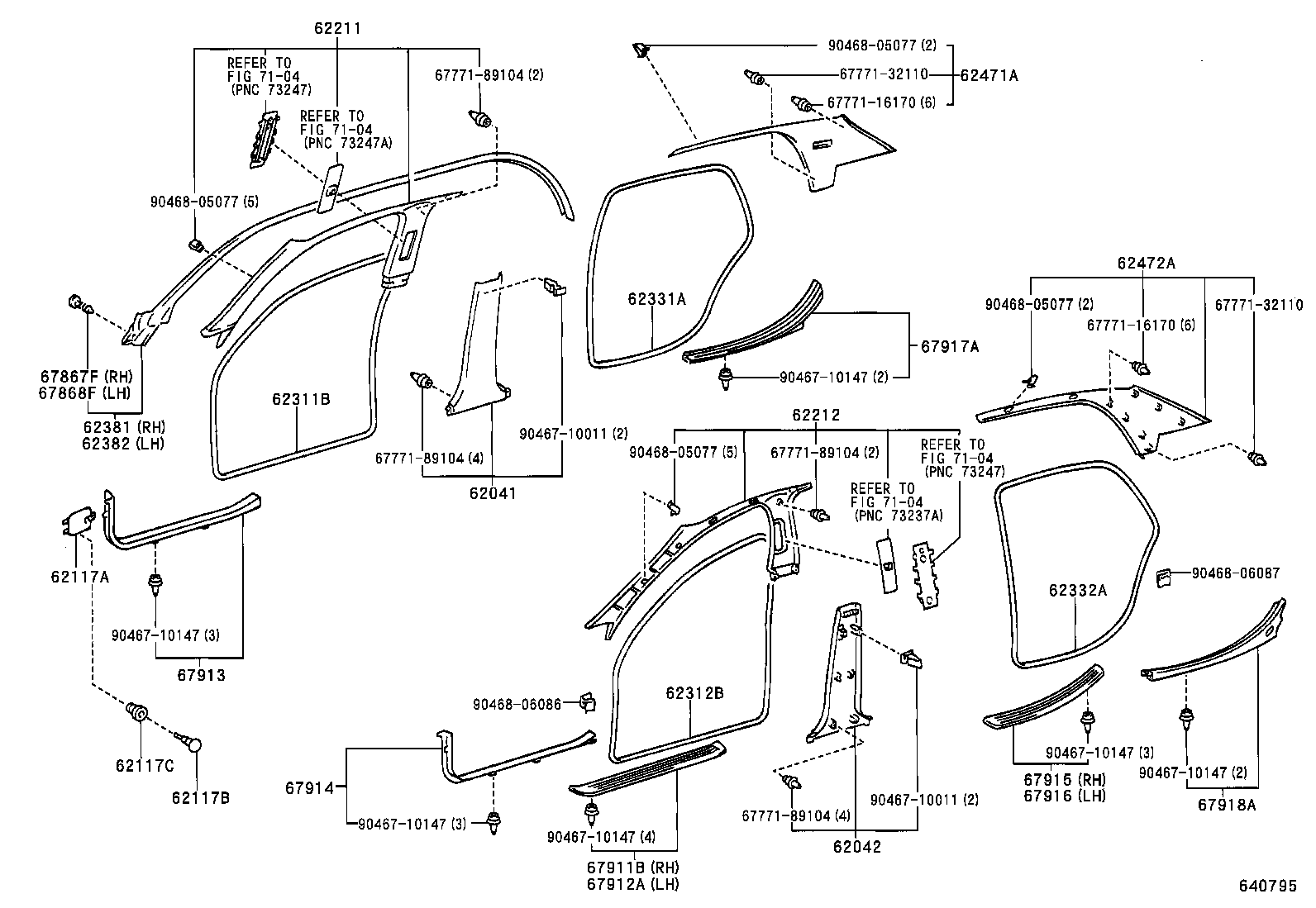

| Linked diagrams | ||||
| 7104 | ||||
