JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )RHD

Click highlighted areas on diagram

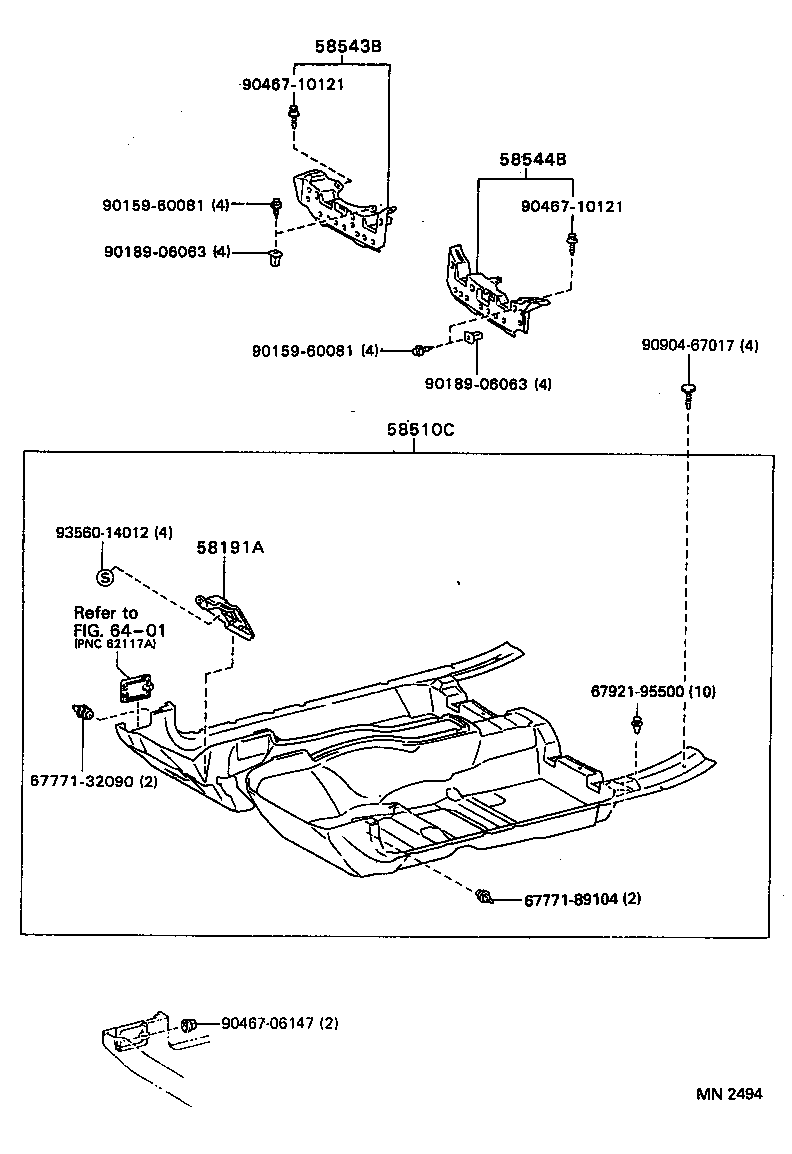

diagram 58191A 58510C 58543B 58544B 6401 6777132090 6777189104 6792195500 9015960081 9015960081 9018906063 9018906063 9046706147 9046710121 9046710121 9090467017 9356014012
Part # Description Qty Price
58191A - FOOTREST, FRONT FLOOR, RH
58191-30030

JZS147..RHD

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-3F760B0

JZS147..RHD

SHADOW GRAY,TRIM1#

 1
58510-3F760G0

JZS147..RHD

LI.SPRUCE,TRIM6#

 1
58510-3F760A0

JZS147..RHD

IVORY,TRIM0#

 1
58510-3F761B0

JZS147..RHD

SHADOW GRAY,TRIM1#

 1
58510-3F761A0

JZS147..RHD

IVORY,TRIM0#

 1
58510-3F761G0

JZS147..RHD

SPRUCE,TRIM6#

 1
58543B - BRACKET, FLOOR CARPET, RH
58543-30010

JZS147

 1
58544B - BRACKET, FLOOR CARPET, LH
58544-30010

JZS147

 1
Common parts
67771-32090
67771-89104
67921-95500
90159-60081
90189-06063
90467-06147
90467-10121
90904-67017
93560-14012
Linked diagrams
6401
