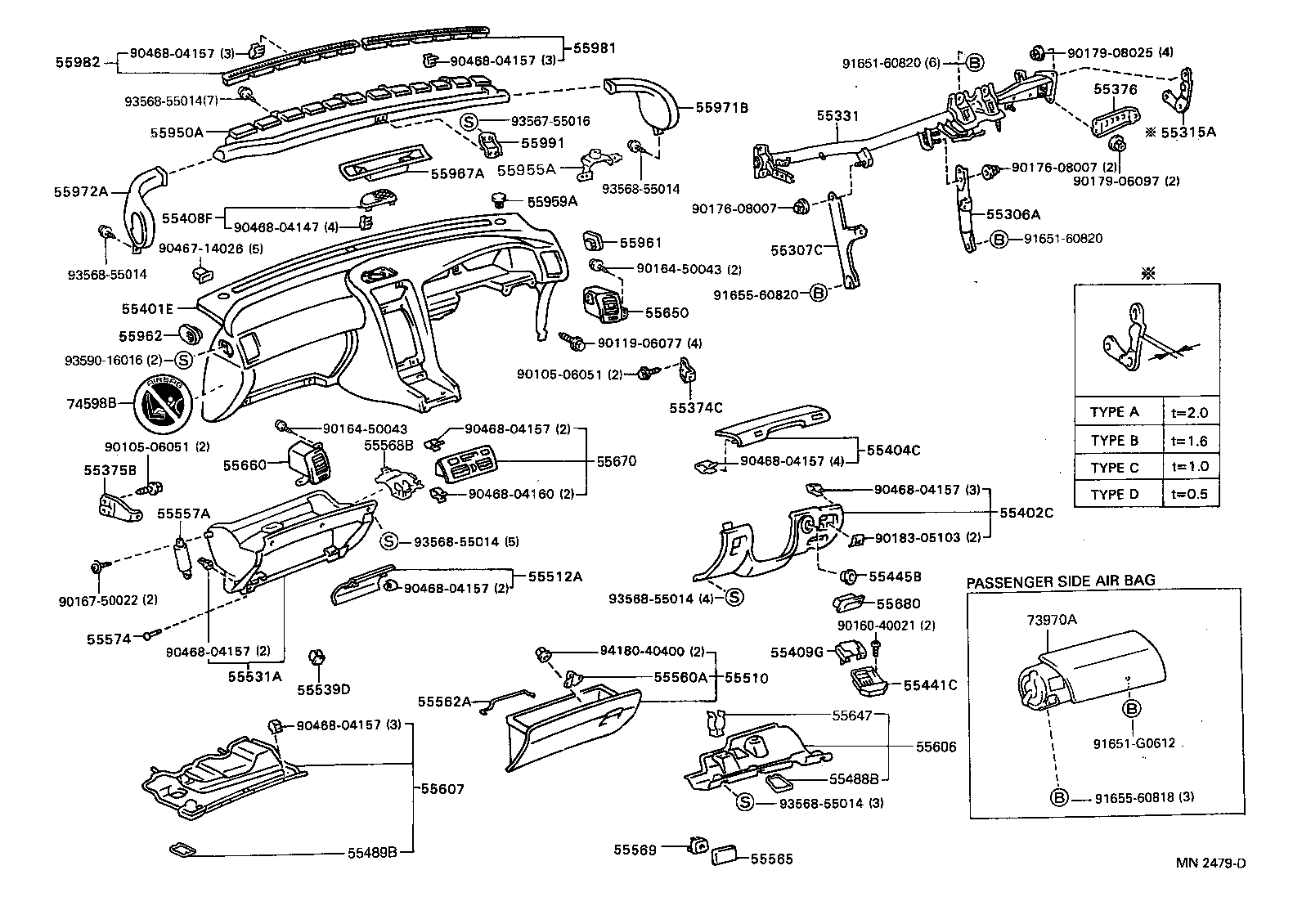

JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
(9308- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-30200 |
JZS147..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-30140 |
JZS147..RHD |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-30050 |
JZS147..RHD TYPE A |
1 | ||
| 55315-30070 |
JZS147..RHD TYPE C |
1 | ||
| 55315-30080 |
JZS147..RHD TYPE D |
1 | ||
| 55315-30060 |
JZS147..RHD TYPE B |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-30100 |
JZS147..RHD |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-30151 |
JZS147..RHD |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-30061 |
JZS147..RHD |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-30120 |
JZS147..RHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-30430G0 |
JZS147..RHD SPRUCE GRAY,TRIM6# |
1 | ||
| 55401-30430B0 |
JZS147..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55401-30430E0 |
JZS147..RHD SABLE,TRIM0# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-30110B0 |
JZS147..RHD GRAY,TRIM1# |
1 | ||
| 55402-30110G0 |
JZS147..RHD LI.SPRUCE,TRIM6# |
1 | ||
| 55402-30110A0 |
JZS147..RHD IVORY,TRIM0# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-30760 |
JZS147..RHD |
1 | ||
| 55404-30790 |
JZS147..RHD |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-30050G0 |
JZS147..RHD SPRUCE GRAY,TRIM6# |
1 | ||
| 55408-30050E0 |
JZS147..RHD SABLE,TRIM0# |
1 | ||
| 55408-30050B0 |
JZS147..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55409G - RETAINER SUB-ASSY, COIN BOX | ||||
| 55409-30120 |
JZS147..RHD |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-30200G0 |
JZS147..RHD LI.SPRUCE,TRIM6# |
1 | ||
| 55441-30200A0 |
JZS147..RHD IVORY,TRIM0# |
1 | ||
| 55441-30200B0 |
JZS147..RHD GRAY,TRIM1# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-30171A0 |
JZS147..RHD IVORY,TRIM0# |
1 | ||
| 55445-30171B0 |
JZS147..RHD GRAY,TRIM1# |
1 | ||
| 55445-30171G0 |
JZS147..RHD LI.SPRUCE,TRIM6# |
1 | ||
| 55488B - LENS, FRONT FOOT LAMP, NO.1 | ||||
| 55488-50010 |
JZS147 |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
JZS147 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-30120A0 |
JZS147..RHD IVORY,TRIM0# |
1 | ||
| 55501-30120B0 |
JZS147..RHD GRAY,TRIM1# |
1 | ||
| 55501-30120G0 |
JZS147..RHD LI.SPRUCE,TRIM6# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-30090 |
JZS147..RHD |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-30181 |
JZS147..RHD |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55546-30030 |
JZS147..RHD |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-30010 |
JZS147..RHD |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-30010 |
JZS147..RHD |
1 | ||
| 55562A - LINK, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-30020 |
JZS147..RHD |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-50010G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 55565-50010B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 55565-50010A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-30070 |
JZS147..RHD |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-50010G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 55569-50010B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 55569-50010A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
JZS147..RHD |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-30160 |
JZS147..RHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30190 |
JZS147..RHD |
1 | ||
| 55647 - CLAMP, INSTRUMENT PANEL UNDER COVER | ||||
| 55647-22010 |
JZS147 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30180G0 |
JZS147..RHD SPRUCE GRAY,TRIM6# |
1 | ||
| 55650-30180E0 |
JZS147..RHD SABLE,TRIM0# |
1 | ||
| 55650-30180B0 |
JZS147..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30290B0 |
JZS147..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55660-30280B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 55660-30290G0 |
JZS147..RHD SPRUCE GRAY,TRIM6# |
1 | ||
| 55660-30290E0 |
JZS147..RHD SABLE,TRIM0# |
1 | ||
| 55660-30280E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 55660-30280G0 |
JZS147 SPRUCE GRAY,TRIM6# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30260 |
JZS147..RHD |
1 | ||
| 55670-30261 |
JZS147..RHD |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-89101B1 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 55680-89101G0 |
JZS147 SPRUCE,TRIM6# |
1 | ||
| 55680-89101E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-30100 |
JZS147..RHD |
1 | ||
| 55955A - PLATE, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55955-30040 |
JZS147..RHD |
1 | ||
| 55959A - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-30050 |
JZS147..EUR |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-30090B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 55961-30090G0 |
JZS147 SPRUCE GRAY,TRIM6# |
1 | ||
| 55961-30090E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-30070E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 55962-30070G0 |
JZS147 SPRUCE GRAY,TRIM6# |
1 | ||
| 55962-30070B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 55967A - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-30030 |
JZS147 |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-30090 |
JZS147..RHD |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-30090 |
JZS147..RHD |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-30060 |
JZS147..RHD |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-30060 |
JZS147..RHD |
1 | ||
| 55991 - BRACKET, DEFROSTER DUCT, NO.1 | ||||
| 55991-30040 |
JZS147 |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-0W010E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 73970-0W010B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 73970-0W010G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 73970-39065G0 |
JZS147..RHD LI.SPRUCE,TRIM6# |
1 | ||
| 73970-39065B0 |
JZS147..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 73970-39065E0 |
JZS147..RHD SABLE,TRIM0# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-30040 |
JZS147 |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90119-06077 | ||||
| 90160-40021 | ||||
| 90164-50043 | ||||
| 90167-50022 | ||||
| 90176-08007 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90183-05103 | ||||
| 90467-14026 | ||||
| 90468-04147 | ||||
| 90468-04157 | ||||
| 90468-04160 | ||||
| 91651-60820 | ||||
| 91651-G0612 | ||||
| 91655-60818 | ||||
| 91655-60820 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| 93590-16016 | ||||
| 94180-40400 | ||||
