JZS147R-BEPQFW (1993)
Toyota Lexus Gs300

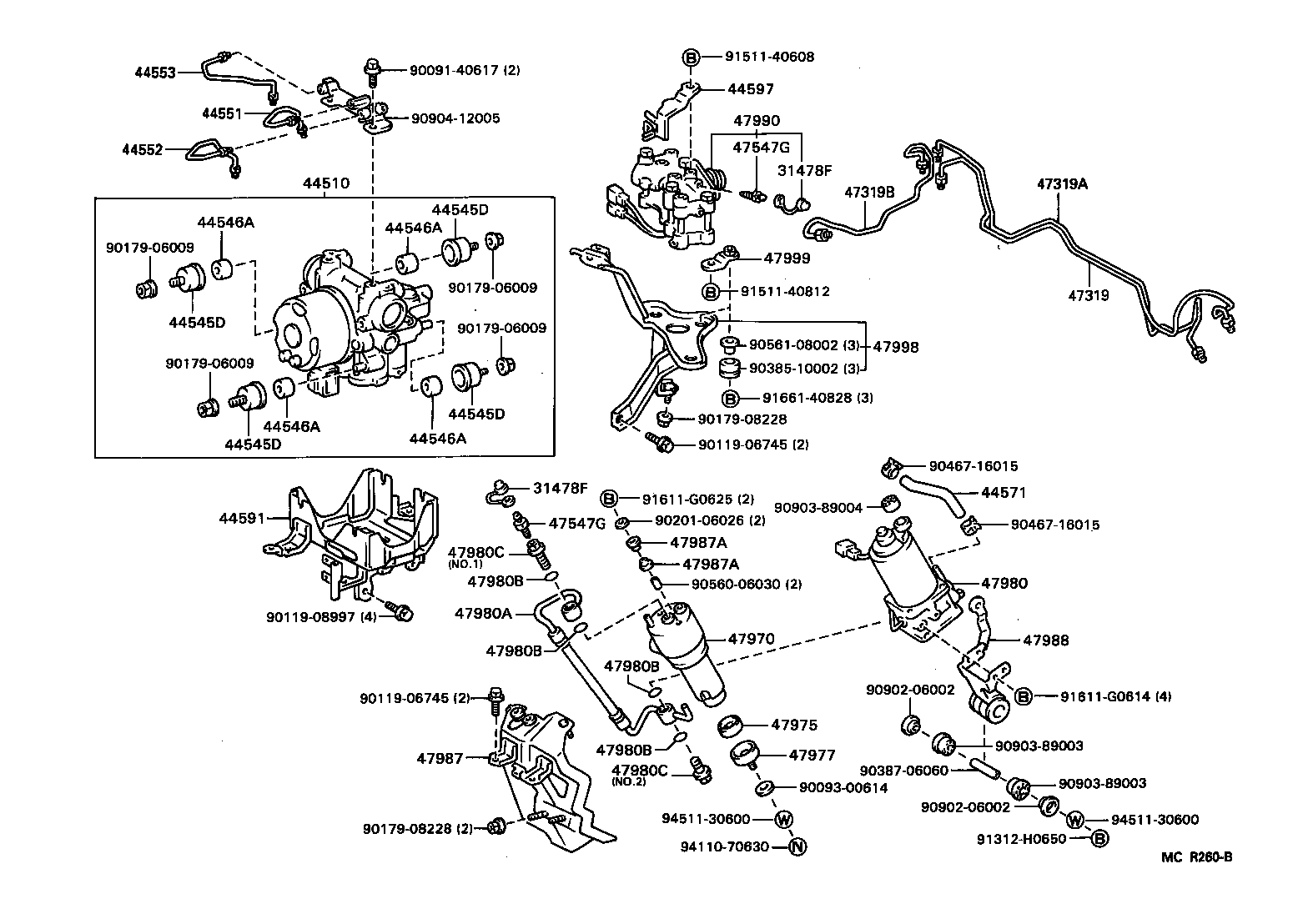

ILLUST NO. 2 OF 2(9308- )
W(TRACTION CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-30091 |
JZS147..RHD;JZS147..GCC |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
JZS147..RHD;JZS147..GCC |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
JZS147..RHD;JZS147..GCC |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
JZS147..RHD;JZS147..GCC |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
JZS147..RHD;JZS147..GCC |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
JZS147..RHD;JZS147..GCC |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
JZS147..RHD;JZS147..GCC |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
JZS147..RHD;JZS147..GCC |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
JZS147..RHD;JZS147..GCC |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-30030 |
JZS147 |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-30041 |
JZS147 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-30070 |
JZS147..RHD;JZS147..GCC |
1 | ||
| Common parts | ||||
| 90091-40617 | ||||
| 90093-00614 | ||||
| 90119-06745 | ||||
| 90119-08997 | ||||
| 90179-06009 | ||||
| 90179-08228 | ||||
| 90201-06026 | ||||
| 90385-10002 | ||||
| 90387-06060 | ||||
| 90467-16015 | ||||
| 90560-06030 | ||||
| 90561-08002 | ||||
| 90902-06002 | ||||
| 90903-89003 | ||||
| 90903-89004 | ||||
| 90904-12005 | ||||
| 91312-H0650 | ||||
| 91511-40608 | ||||
| 91511-40812 | ||||
| 91611-G0614 | ||||
| 91611-G0625 | ||||
| 91661-40828 | ||||
| 94110-70630 | ||||
| 94511-30600 | ||||

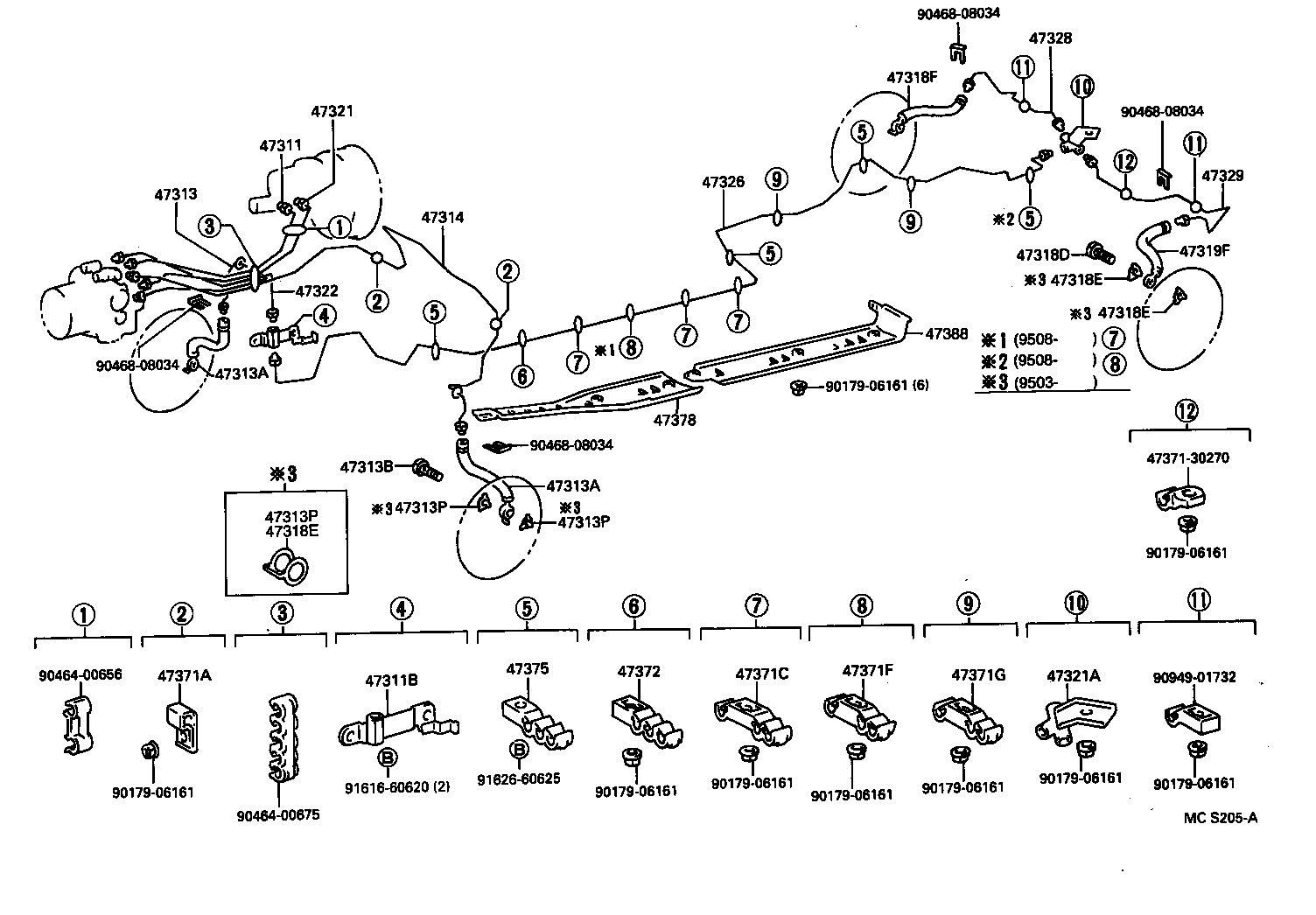

ILLUST NO. 1 OF 2(9308- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30450 |
JZS147..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10188 |
JZS147..RHD;JZS147..GCC |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-30190 |
JZS147..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02837 |
JZS147 |
2 | ||
| 90947-02674 |
JZS147 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02837 |
JZS147 |
2 | ||
| 90947-02674 |
JZS147 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10044 |
JZS147 |
2 | ||
| 90401-10058 |
JZS147 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS147 |
4 | ||
| 47389-50020 |
JZS147 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS147 |
4 | ||
| 47389-50020 |
JZS147 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS147 |
4 | ||
| 47389-50020 |
JZS147 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30240 |
JZS147..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10044 |
JZS147 |
2 | ||
| 90401-10058 |
JZS147 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS147 |
4 | ||
| 47389-50020 |
JZS147 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS147 |
4 | ||
| 47389-50020 |
JZS147 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS147 |
4 | ||
| 47389-50020 |
JZS147 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02839 |
JZS147 |
1 | ||
| 90947-02672 |
JZS147 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02672 |
JZS147 |
1 | ||
| 90947-02839 |
JZS147 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30170 |
JZS147..RHD |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10265 |
JZS147..RHD;JZS147..GCC |
1 | ||
| 90413-10265 |
JZS147 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-30140 |
JZS147..RHD |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-30040 |
JZS147..RHD;JZS147..GCC |
1 | ||
| 47326-30080 |
JZS147..RHD;JZS147..GCC |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-30010 |
JZS147..RHD;JZS147..GCC |
1 | ||
| 47328-30010 |
JZS147 |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-30040 |
JZS147 |
1 | ||
| 47329-30040 |
JZS147..RHD;JZS147..GCC |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30190 |
JZS147..RHD |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-50060 |
JZS147 |
3 | ||
| 47371-50060 |
JZS147..RHD;JZS147..GCC |
4 | ||
| 47371-50060 |
JZS147 |
3 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 47371-30180 |
JZS147 |
1 | ||
| 47371-30260 |
JZS147..RHD;JZS147..GCC |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 47371-30160 |
JZS147 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30170 |
JZS147 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-30200 |
JZS147..RHD;JZS147..GCC |
3 | ||
| 47371-30200 |
JZS147 |
4 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-30010 |
JZS147 |
1 | ||
| 47388 - PROTECTOR, BRAKE TUBE, LOWER | ||||
| 47388-30010 |
JZS147 |
1 | ||
| Common parts | ||||
| 47371-30270 | ||||
| 90179-06161 | ||||
| 90464-00656 | ||||
| 90464-00675 | ||||
| 90468-08034 | ||||
| 90949-01732 | ||||
| 91616-60620 | ||||
| 91626-60625 | ||||
