JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )RHD

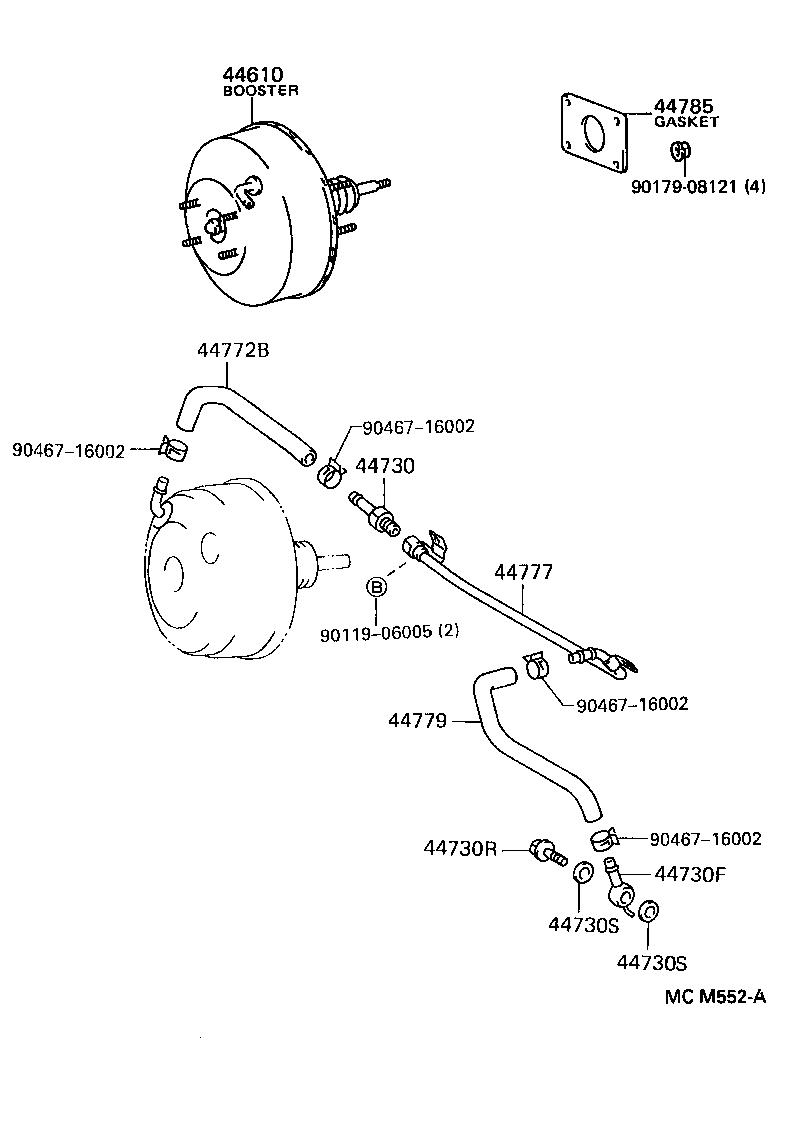

Click highlighted areas on diagram

diagram 44610 44730 44730F 44730R 44730S 44730S 44772B 44777 44779 44785 9011906005 9017908121 9046716002 9046716002 9046716002 9046716002
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-3A030

JZS147..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22120

JZS147..RHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09160

JZS147

 1
90405-09160

JZS147

 1
44730R - BOLT, UNION(FOR VACUUM HOSE UNION)
90401-12012

JZS147

 1
90401-12012

JZS147

 1
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

JZS147

 2
90430-12005

JZS147

 2
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

JZS147

 2
90430-12005

JZS147

 2
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-30160

JZS147..RHD

 1
44772-30150

JZS147..RHD

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-30160

JZS147..RHD

 1
44779 - HOSE, UNION TO CONNECTOR
44779-30280

JZS147..RHD

 1
44774-30040

JZS147..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-30030

JZS147

 1
Common parts
90119-06005
90179-08121
90467-16002
