JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

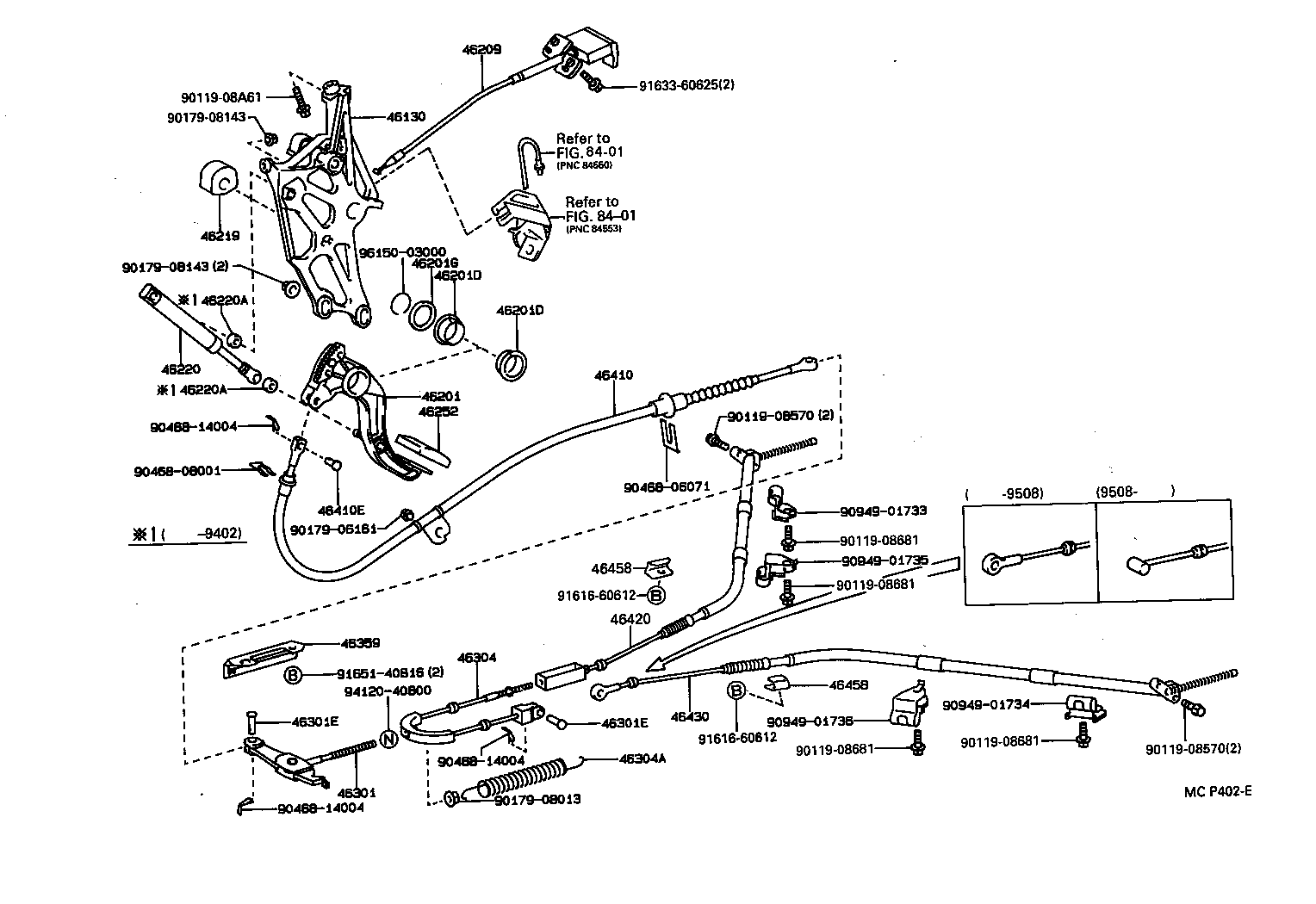

ILLUST NO. 1 OF 2(9308- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-30130 |
JZS147..RHD |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-30120 |
JZS147..RHD |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-30002 |
JZS147..RHD LH |
1 | ||
| 90386-30003 |
JZS147..RHD RH |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-30002 |
JZS147..RHD LH |
1 | ||
| 90386-30003 |
JZS147..RHD RH |
1 | ||
| 46201G - SPACER(FOR PARKING BRAKE PEDAL) | ||||
| 90560-30010 |
JZS147..RHD |
1 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30091A0 |
JZS147..RHD IVORY,TRIM0# |
1 | ||
| 46209-30090G0 |
JZS147..RHD LIGHT SPRUCE,TRIM6# |
1 | ||
| 46209-30091B0 |
JZS147..RHD GRAY,TRIM1# |
1 | ||
| 46209-30090B0 |
JZS147..RHD GRAY,TRIM1# |
1 | ||
| 46209-30091G0 |
JZS147..RHD LI.SPRUCE,TRIM6# |
1 | ||
| 46209-30090A0 |
JZS147..RHD IBORY,TRIM0# |
1 | ||
| 46219 - STOPPER, PARKING PEDAL | ||||
| 90541-15013 |
JZS147..RHD |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-30010 |
JZS147 |
1 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
JZS147 |
2 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
JZS147 |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
JZS147..RHD |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30230 |
JZS147 |
1 | ||
| 46301-30260 |
JZS147 |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08059 |
JZS147 |
2 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08059 |
JZS147 |
2 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-30090 |
JZS147 |
1 | ||
| 46304-30070 |
JZS147 |
1 | ||
| 46304A - SPRING, TENSION(FOR PARKING BRAKE EQUALIZER) | ||||
| 46305-50010 |
JZS147 |
1 | ||
| 90507-22001 |
JZS147 |
1 | ||
| 46359 - GUIDE, PARKING BRAKE INTERMEDIATE LEVER | ||||
| 46359-30140 |
JZS147 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30520 |
JZS147..RHD |
1 | ||
| 46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1) | ||||
| 90240-08062 |
JZS147 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30410 |
JZS147 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-30050 |
JZS147 |
1 | ||
| 46430-30100 |
JZS147 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30060 |
JZS147 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30060 |
JZS147 |
2 | ||
| Common parts | ||||
| 90119-08570 | ||||
| 90119-08681 | ||||
| 90119-08A61 | ||||
| 90179-06161 | ||||
| 90179-08013 | ||||
| 90179-08143 | ||||
| 90468-06071 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90949-01733 | ||||
| 90949-01734 | ||||
| 90949-01735 | ||||
| 90949-01736 | ||||
| 91616-60612 | ||||
| 91633-60625 | ||||
| 91651-40816 | ||||
| 94120-40800 | ||||
| 96150-03000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
