JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

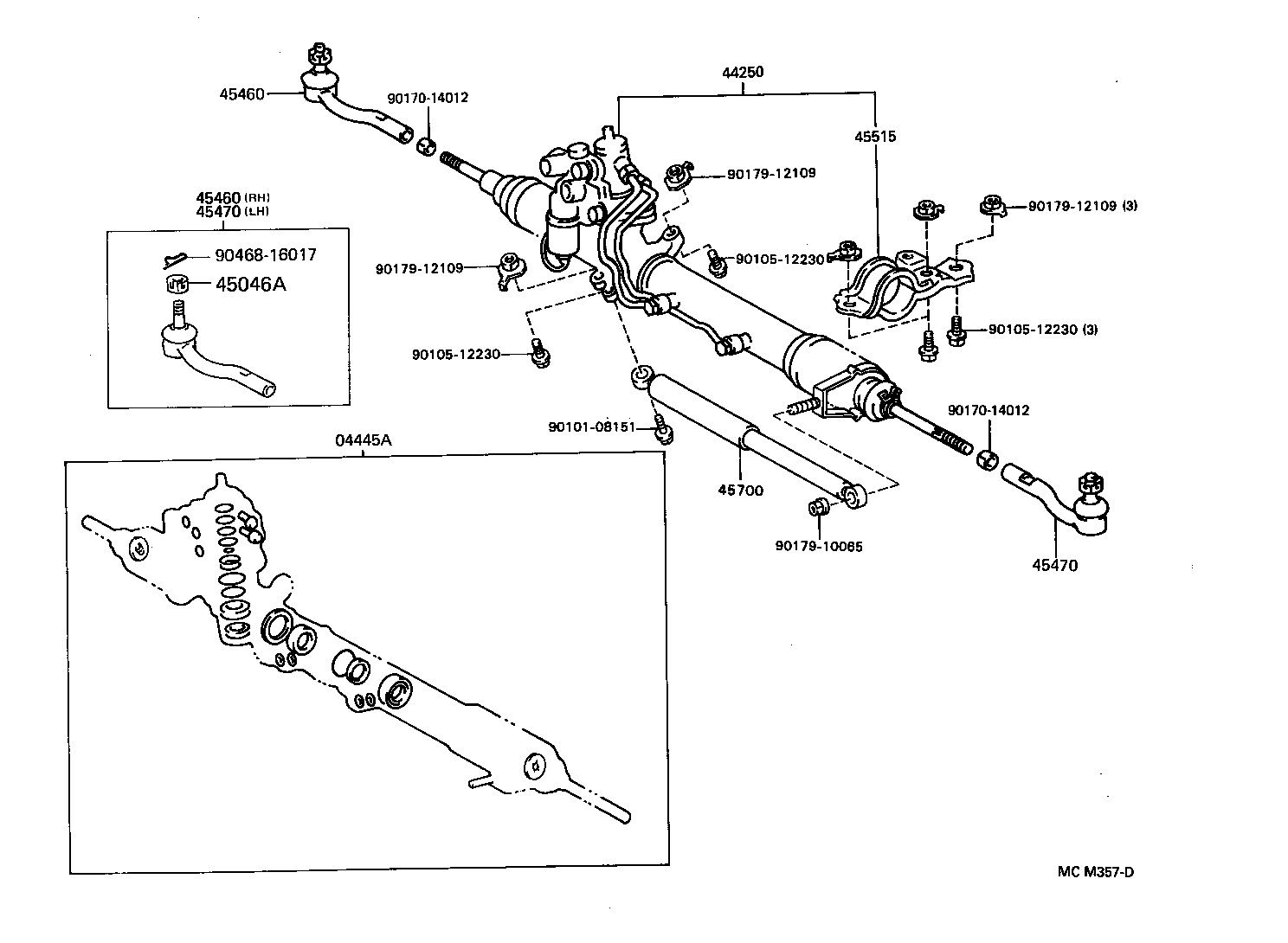

ILLUST NO. 1 OF 2(9308- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-30230 |
JZS147..RHD |
1 | ||
| 04445-30160 |
JZS147..RHD |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-30021 |
JZS147..RHD |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
JZS147 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39365 |
JZS147 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39365 |
JZS147 |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39125 |
JZS147 |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39125 |
JZS147 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-30021 |
JZS147..RHD |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-30020 |
JZS147 |
1 | ||
| Common parts | ||||
| 90101-08151 | ||||
| 90105-12230 | ||||
| 90170-14012 | ||||
| 90179-10065 | ||||
| 90179-12109 | ||||
| 90468-16017 | ||||

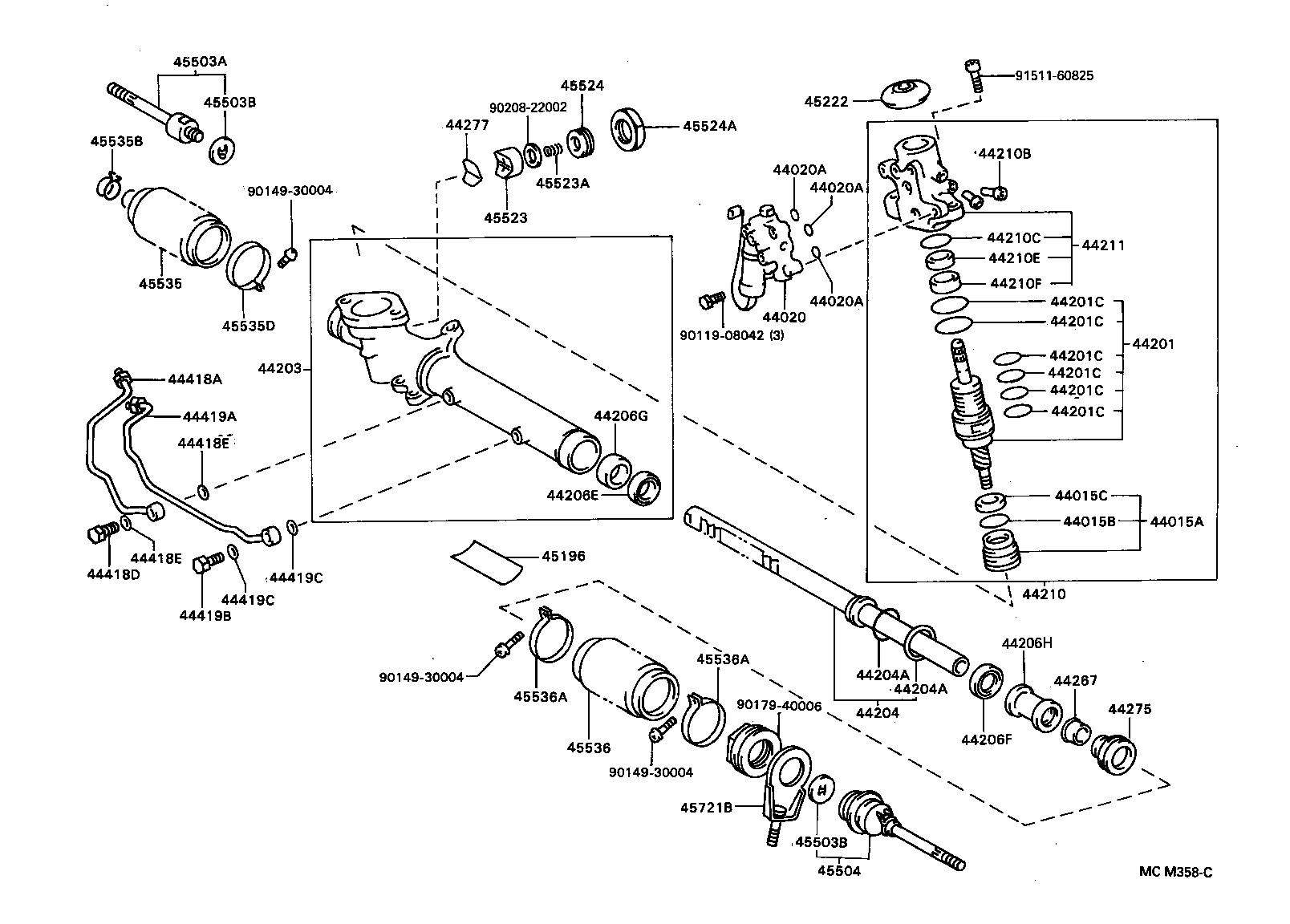

ILLUST NO. 2 OF 2(9308- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22030 |
JZS147 |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-53181 |
JZS147 |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90311-30016 |
JZS147 |
1 | ||
| 90311-30008 |
JZS147 |
1 | ||
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-30051 |
JZS147 |
1 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 96711-19014 |
JZS147 |
3 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 96711-19014 |
JZS147 |
3 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 96711-19014 |
JZS147 |
3 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-30011 |
JZS147..RHD |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
JZS147 LWR |
4 | ||
| 90562-49002 |
JZS147 UPR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
JZS147 LWR |
4 | ||
| 90562-49002 |
JZS147 UPR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
JZS147 LWR |
4 | ||
| 90562-49002 |
JZS147 UPR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
JZS147 LWR |
4 | ||
| 90562-49002 |
JZS147 UPR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
JZS147 LWR |
4 | ||
| 90562-49002 |
JZS147 UPR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
JZS147 LWR |
4 | ||
| 90562-49002 |
JZS147 UPR |
2 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-30021 |
JZS147..RHD |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-30021 |
JZS147..RHD |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-41001 |
JZS147 OUTER |
1 | ||
| 90301-37007 |
JZS147 INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-41001 |
JZS147 OUTER |
1 | ||
| 90301-37007 |
JZS147 INNER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-26008 |
JZS147 |
1 | ||
| 90310-26018 |
JZS147 |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-26019 |
JZS147 |
1 | ||
| 90310-26015 |
JZS147 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-27013 |
JZS147 |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90561-28005 |
JZS147 |
1 | ||
| 90561-28005 |
JZS147 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-30021 |
JZS147..RHD |
1 | ||
| 44210-30022 |
JZS147..RHD |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-04004 |
JZS147 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-62005 |
JZS147 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
JZS147 |
1 | ||
| 90311-19013 |
JZS147 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
JZS147 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-30060 |
JZS147..RHD |
1 | ||
| 44022-30011 |
JZS147..RHD |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-22020 |
JZS147 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-30010 |
JZS147 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-22010 |
JZS147 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-30021 |
JZS147..RHD |
1 | ||
| 44418-30020 |
JZS147..RHD |
1 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
JZS147 |
1 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
JZS147 |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
JZS147 |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-30020 |
JZS147..RHD |
1 | ||
| 44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
JZS147 |
1 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
JZS147 |
2 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
JZS147 |
2 | ||
| 45196 - LABEL, STEERING SHAFT INSTALLATION CAUTION | ||||
| 45196-50020 |
JZS147 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-22040 |
JZS147 |
1 | ||
| 45503A - END SUB-ASSY, STEERING RACK, NO.1 | ||||
| 45503-59015 |
JZS147 |
1 | ||
| 45503-39095 |
JZS147 |
1 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
JZS147 OD=38,RH |
1 | ||
| 90214-18001 |
JZS147 OD=37,LH |
1 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
JZS147 OD=38,RH |
1 | ||
| 90214-18001 |
JZS147 OD=37,LH |
1 | ||
| 45504 - END SUB-ASSY, STEERING RACK, NO.2 | ||||
| 45504-39025 |
JZS147 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-22030 |
JZS147 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90502-32001 |
JZS147 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
JZS147 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
JZS147 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-30010 |
JZS147 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
JZS147 |
1 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49002 |
JZS147 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-30010 |
JZS147 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-52001 |
JZS147 INNER |
1 | ||
| 90460-55010 |
JZS147 OUTER |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-52001 |
JZS147 INNER |
1 | ||
| 90460-55010 |
JZS147 OUTER |
1 | ||
| 45721B - BRACKET, STEERING DAMPER, NO.3 | ||||
| 45721-30020 |
JZS147 |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90149-30004 | ||||
| 90179-40006 | ||||
| 90208-22002 | ||||
| 91511-60825 | ||||
