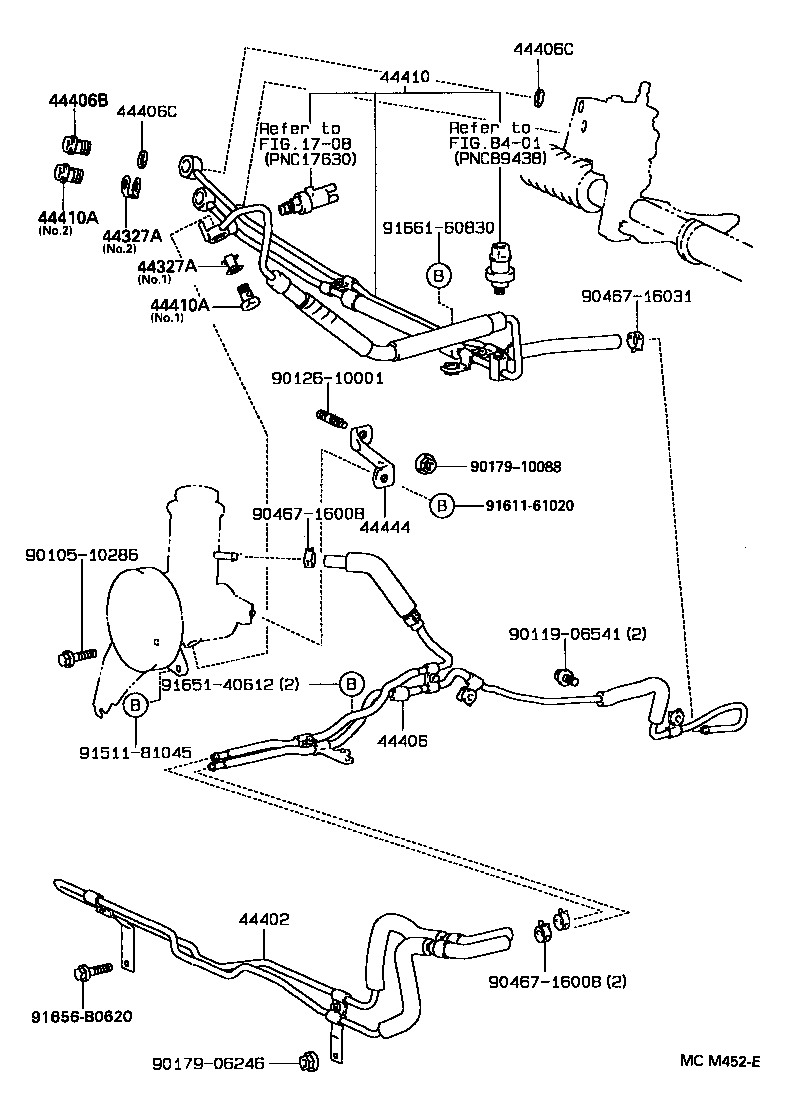

Toyota Lexus gs300 JZS147 POWER STEERING TUBE

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-26020	JZS147 NO.1	03/1993 - 08/1993	1
44327-12010	JZS147 NO.2	03/1993 - 08/1993	1
44327-30030	JZS147 NO.2	08/1993 - 08/1997	1
44327-30040	JZS147 NO.1	08/1993 - 08/1997	1
44327A - GASKET, PRESSURE PORT, NO.1
44327-26020	JZS147 NO.1	03/1993 - 08/1993	1
44327-12010	JZS147 NO.2	03/1993 - 08/1993	1
44327-30030	JZS147 NO.2	08/1993 - 08/1997	1
44327-30040	JZS147 NO.1	08/1993 - 08/1997	1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-30151	JZS147..RHD	08/1993 - 08/1997	1
44406 - TUBE SUB-ASSY, RETURN
44406-30081	JZS147..RHD	08/1993 - 08/1995	1
44406-30082	JZS147..RHD	08/1995 - 08/1997	1
44406B - BOLT, UNION(FOR RETURN TUBE)
96341-11703	JZS147	08/1993 - 08/1997	1
90401-17002	JZS147	03/1993 - 08/1993	1
44406C - GASKET(FOR RETURN TUBE)
90430-17005	JZS147	03/1993 - 08/1993	2
90430-17006	JZS147	08/1993 - 08/1997	2
44406C - GASKET(FOR RETURN TUBE)
90430-17005	JZS147	03/1993 - 08/1993	2
90430-17006	JZS147	08/1993 - 08/1997	2
44410 - TUBE ASSY, PRESSURE FEED
44410-30221	JZS147..RHD	08/1993 - 08/1997	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603	JZS147 NO.2	08/1993 - 08/1997	1
90401-16014	JZS147 NO.1	03/1993 - 08/1997	1
90401-16013	JZS147 NO.2	03/1993 - 08/1993	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603	JZS147 NO.2	08/1993 - 08/1997	1
90401-16014	JZS147 NO.1	03/1993 - 08/1997	1
90401-16013	JZS147 NO.2	03/1993 - 08/1993	1
44444 - STAY, PUMP, REAR
44444-30100	JZS147	03/1993 - 08/1997	1
Common parts
90105-10286
90119-06541
90126-10001
90179-06246
90179-10088
90467-16008
90467-16031
91511-81045
91611-61020
91651-40612
91656-B0620
91661-60830
Linked diagrams
1708
8401

JZS147R-BEPQFW (1993)

(9308- )RHD
