JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )EUR

Click highlighted areas on diagram

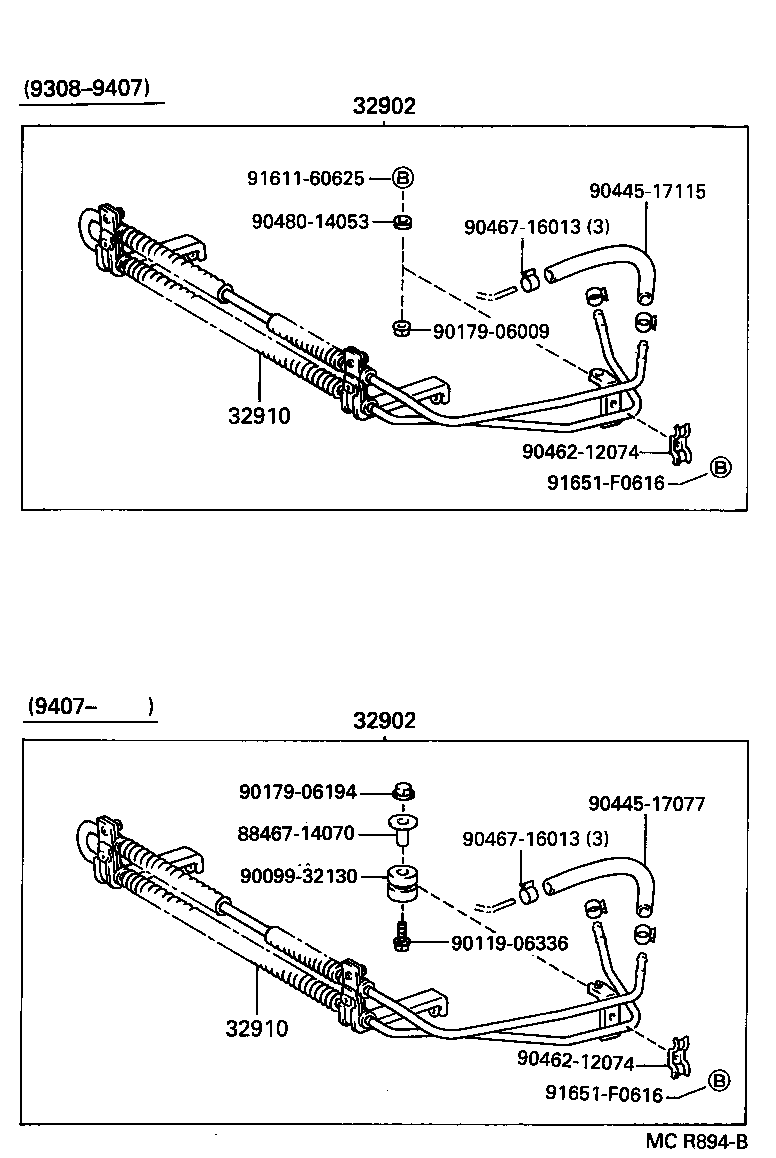

AIR COOLED OIL COOLER

diagram 32902 32902 32910 32910 8846714070 9009932130 9011906336 9017906009 9017906194 9044517077 9044517115 9046212074 9046212074 9046716013 9046716013 9048014053 9161160625 91651F0616 91651F0616
Part # Description Qty Price
32902 - COOLER SET, TRANSMISSION OIL
32902-30011

JZS147..EUR

 1
32902-30010

JZS147..EUR

 1
32902 - COOLER SET, TRANSMISSION OIL
32902-30011

JZS147..EUR

 1
32902-30010

JZS147..EUR

 1
32910 - COOLER ASSY, OIL
32910-30031

JZS147..EUR

 1
32910-30030

JZS147..EUR

 1
32910 - COOLER ASSY, OIL
32910-30031

JZS147..EUR

 1
32910-30030

JZS147..EUR

 1
Common parts
88467-14070
90099-32130
90119-06336
90179-06009
90179-06194
90445-17077
90445-17115
90462-12074
90467-16013
90480-14053
91611-60625
91651-F0616
