JZS147R-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9308-9708)2JZGE..EUR

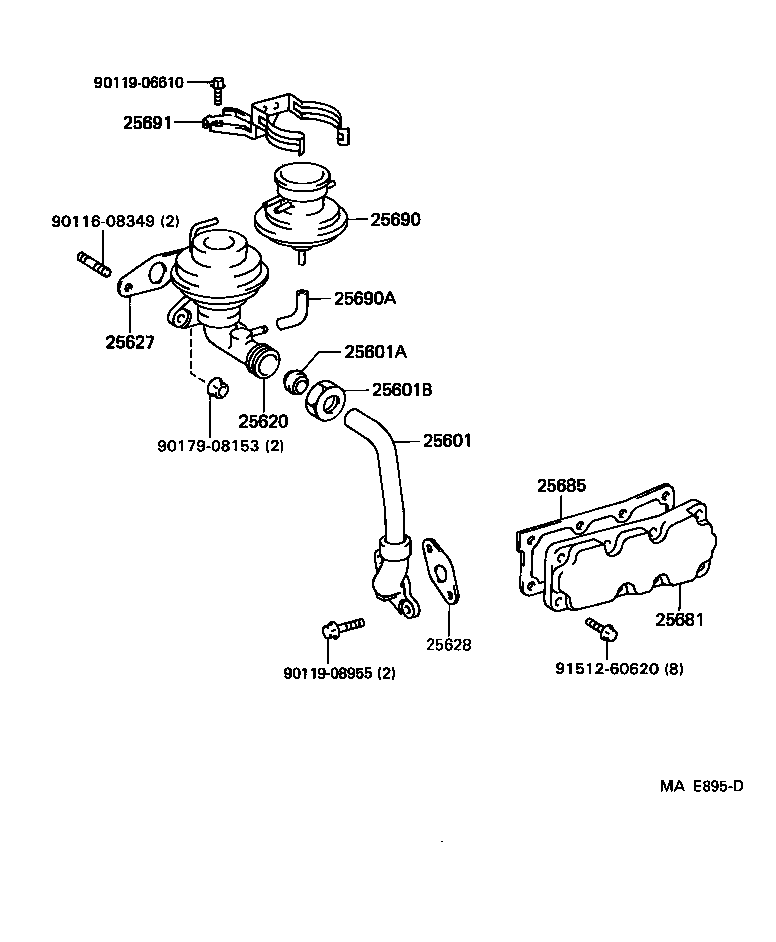

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-46010 |
2JZGE..JZS147..EUR |
1 | ||
| 25601-46011 |
2JZGE..JZS147..EUR |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-18002 |
2JZGE..JZS147..EUR |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-26002 |
2JZGE..JZS147..EUR |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-46050 |
2JZGE..JZS147..EUR |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-46010 |
2JZGE..JZS147..EUR |
2 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25627-46010 |
2JZGE..JZS147..EUR |
2 | ||
| 25681 - COOLER, EGR, NO.1 | ||||
| 25681-46010 |
2JZGE..JZS147..EUR |
1 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 25685-46010 |
2JZGE..JZS147..EUR |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25870-46010 |
2JZGE..JZS147..EUR |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 25695-46010 |
2JZGE..JZS147..EUR |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-46010 |
2JZGE..JZS147..EUR |
1 | ||
| Common parts | ||||
| 90116-08349 | ||||
| 90119-06610 | ||||
| 90119-08955 | ||||
| 90179-08153 | ||||
| 91512-60620 | ||||
