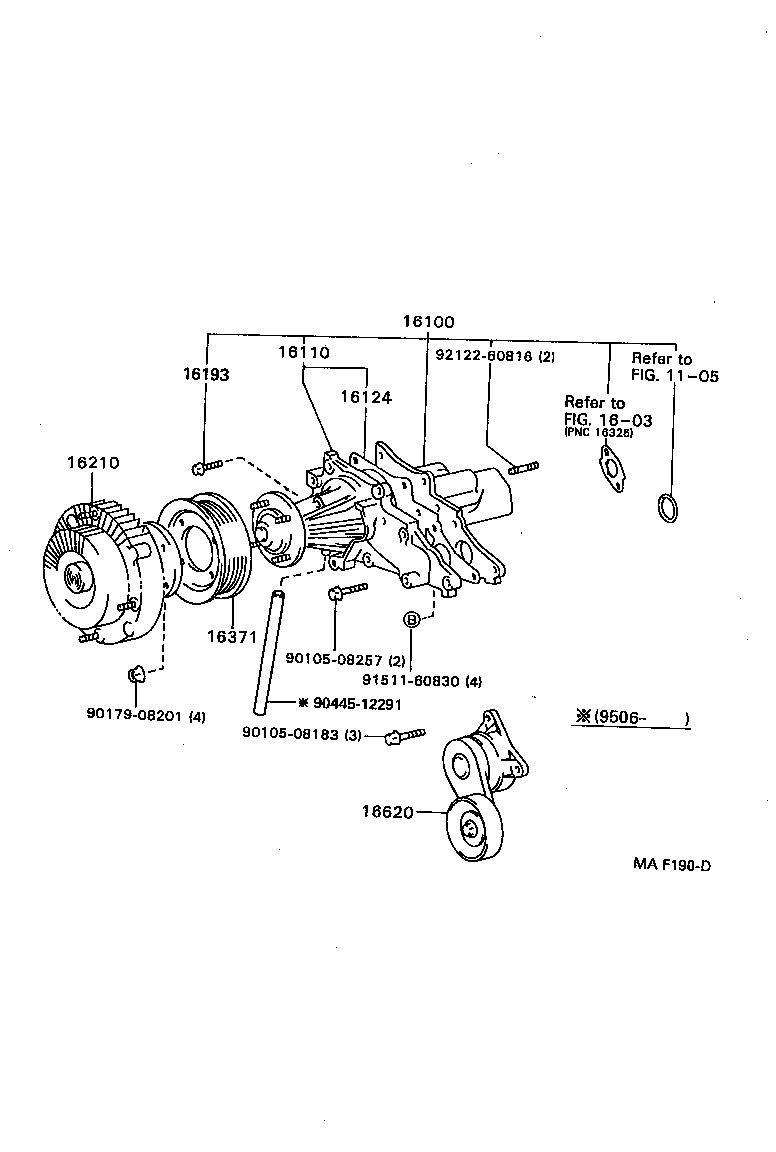

Toyota Lexus gs300 JZS147 WATER PUMP

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-49835	2JZGE..JZS147	03/1993 - 06/1995	1
16100-49836	2JZGE..JZS147	06/1995 - 08/1997	1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-49116	2JZGE..JZS147	06/1995 - 08/1997	1
16110-49115	2JZGE..JZS147	03/1993 - 06/1995	1
16124 - GASKET, WATER PUMP COVER
16124-46040	2JZGE..JZS147	03/1993 - 08/1996	1
16124-46041	2JZGE..JZS147	08/1996 - 08/1997	1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-46040	2JZGE..JZS147	03/1993 - 08/1997	5
16210 - COUPLING ASSY, FLUID
16210-46040	2JZGE..JZS147	03/1993 - 04/1993	1
16371 - PULLEY, FAN
16371-46020	2JZGE..JZS147	03/1993 - 08/1997	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W020	2JZGE..JZS147	03/1993 - 07/1993	1
16620-0W023	2JZGE..JZS147	05/1995 - 10/1996	1
16620-0W024	2JZGE..JZS147	10/1996 - 08/1997	1
Common parts
90105-08183
90105-08257
90179-08201
90445-12291
91511-60830
92122-60816
Linked diagrams
1105
1603

JZS147R-BEPQFW (1993)
