JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997

Engine 2JZGE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9303-9708)

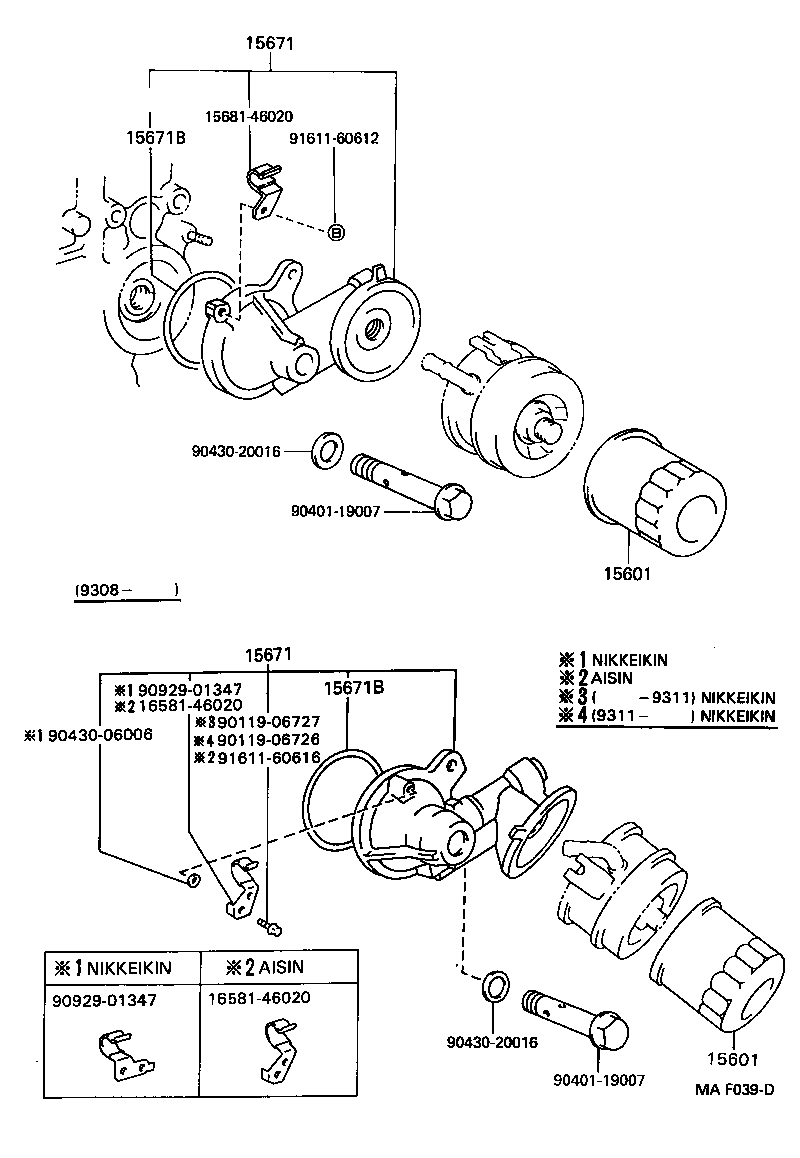

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
15601 - FILTER SUB-ASSY, OIL
90915-20001	2JZGE..JZS147	03/1993 - 08/1997	1
15601 - FILTER SUB-ASSY, OIL
90915-20001	2JZGE..JZS147	03/1993 - 08/1997	1
15671 - BRACKET, OIL FILTER
15670-46062	2JZGE..JZS147	01/1995 - 05/1995	1
15670-46030	2JZGE..JZS147	03/1993 - 08/1993	1
15670-46110	2JZGE..JZS147	05/1995 - 08/1997	1
15670-46110	2JZGE..JZS147	08/1993 - 01/1995	1
15671 - BRACKET, OIL FILTER
15670-46062	2JZGE..JZS147	01/1995 - 05/1995	1
15670-46030	2JZGE..JZS147	03/1993 - 08/1993	1
15670-46110	2JZGE..JZS147	05/1995 - 08/1997	1
15670-46110	2JZGE..JZS147	08/1993 - 01/1995	1
15671B - GASKET, OIL FILTER BRACKET
15188-46010	2JZGE..JZS147	03/1993 - 05/1993	1
15671B - GASKET, OIL FILTER BRACKET
15188-46010	2JZGE..JZS147	03/1993 - 05/1993	1
Common parts
15681-46020
16581-46020
90119-06726
90119-06727
90401-19007
90430-06006
90430-20016
90929-01347
91611-60612
91611-60616
